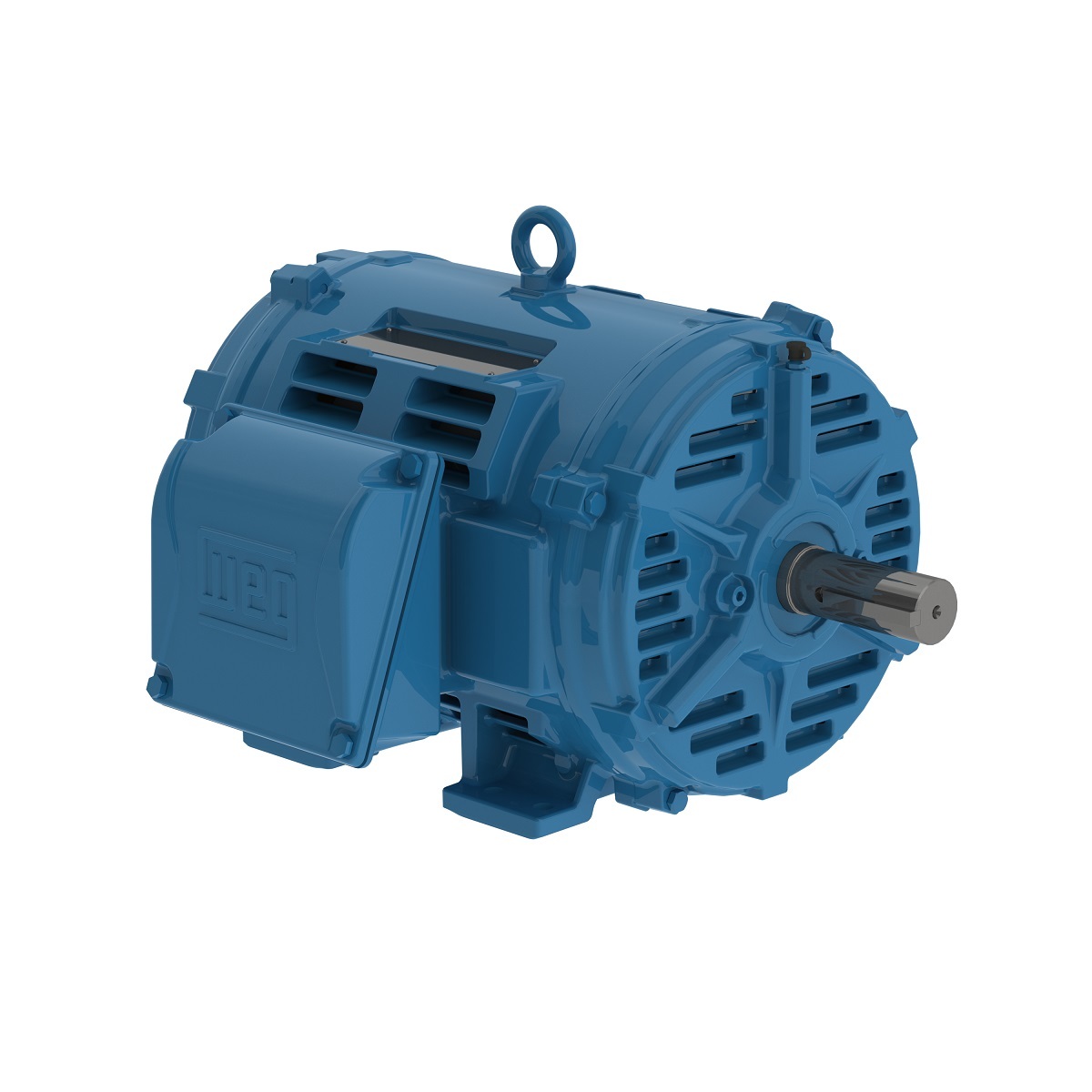

The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460V |
| Number of poles | 4 |
| Degree of Protection | IP23 |
| Synchronous speed | 1800 rpm |
| Output rating | 50 HP |
| Flange | Without |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC01 – ODP |
Unit Price Only
$3,166.99
Note: This item is heavy and delivery requires a forklift or loading dock for unloading only at commercial locations.
If the delivery address is residential and a forklift/dock is not available, please add the Liftgate + Non-Commercial Delivery Service from here:
Free Shipping , Get it in 2 – 5 Business Days
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
Technical Data| Brand | WEG |
|---|---|
| Frame | 324/6T |
| Output | 50 HP |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1775 rpm |
| Slip (%) | 1.39 |
| Rated Voltage (V) | 230/460 |
| Rated Current (A) | 117/58.5 |
| L. R. Amperes (A) | 737/369 |
| LRC | 6.3x (Code G) |
| No load Current (A) | 46.4/23.2 |
| Rated Torque (ft.lb) | 148 |
| Locked Rotor Torque (%) | 240 |
| Breakdown Torque (%) | 240 |
| Locked Rotor Time | 19s (cold) 11s (hot) |
| Moment of Inertia (J) | 7.08 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.25 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP23 |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 66.0 dB(A) |
| Approx. Weight (lb) | 510 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 94.0 | 94.1 | 94.5 | 94.5 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.44 | 0.7 | 0.8 | 0.84 |
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 2″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 – C3) |
| Grounding Lugs | Single |
| Fan Cover Material | Without |
| Tropicalized Painting | Without |
| Bearing Cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
