Product Features
Standard | NEMA MG-1 |
---|---|
Frequency | 60 Hz |
Voltage | 230V |
Number of poles | 4 |
Degree of Protection | IP55 |
Synchronous speed | 1750 rpm |
Output rating | 0.75 HP |
Flange | FF |
Mounting | B35L(D) |
Enclosure | IC411 – TEFC |
Standard | NEMA MG-1 |
---|---|
Frequency | 60 Hz |
Voltage | 230V |
Number of poles | 4 |
Degree of Protection | IP55 |
Synchronous speed | 1750 rpm |
Output rating | 0.75 HP |
Flange | FF |
Mounting | B35L(D) |
Enclosure | IC411 – TEFC |
Standard | NEMA MG-1 |
---|---|
Frequency | 60 Hz |
Voltage | 230V |
Number of poles | 2 |
Degree of Protection | IP55 |
Synchronous speed | 3600 rpm |
Output rating | 1 HP |
Flange | FF |
Mounting | B35L(D) |
Enclosure | IC411 – TEFC |

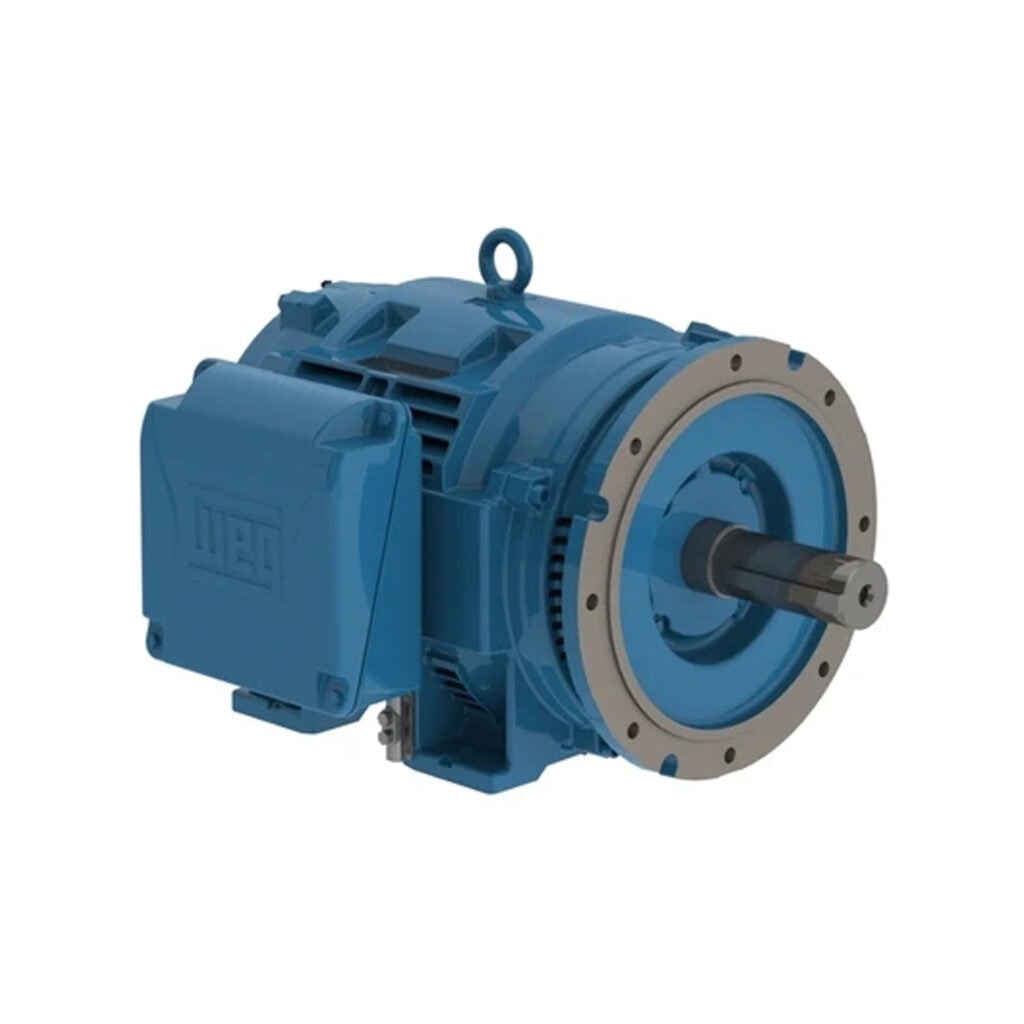

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.
Standard | NEMA MG-1 |
---|---|
Frequency | 60//50 Hz |
Voltage | 460//380 V |
Number of poles | 4 |
Degree of Protection | IP23 |
Synchronous speed | 1800 rpm |
Output rating | 200 HP |
Mounting | Foot-mounted |
Flange | D |
Mounting | F-1 |
Terminal box¹ | Left position |
Enclosure | IC01 – ODP |

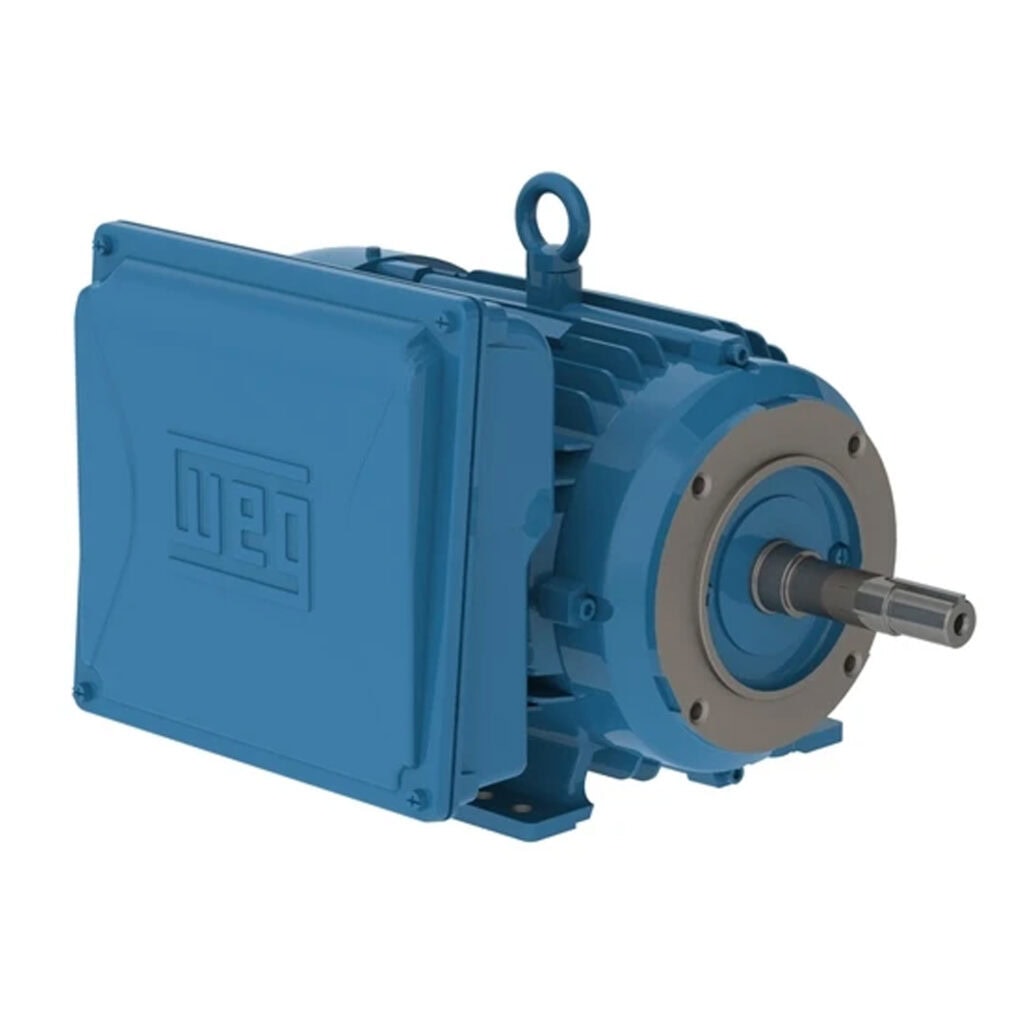

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Standard | NEMA MG-1 |
---|---|
Frequency | 60//50 Hz |
Voltage | 230/460//380 V |
Number of poles | 4 |
Degree of Protection | IP55 |
Synchronous speed | 1800 rpm |
Output rating | 7.5 HP |
Mounting | Footless |
Flange | C |
Mounting | W-6 |
Terminal box¹ | Left position |
Enclosure | IC411 – TEFC |

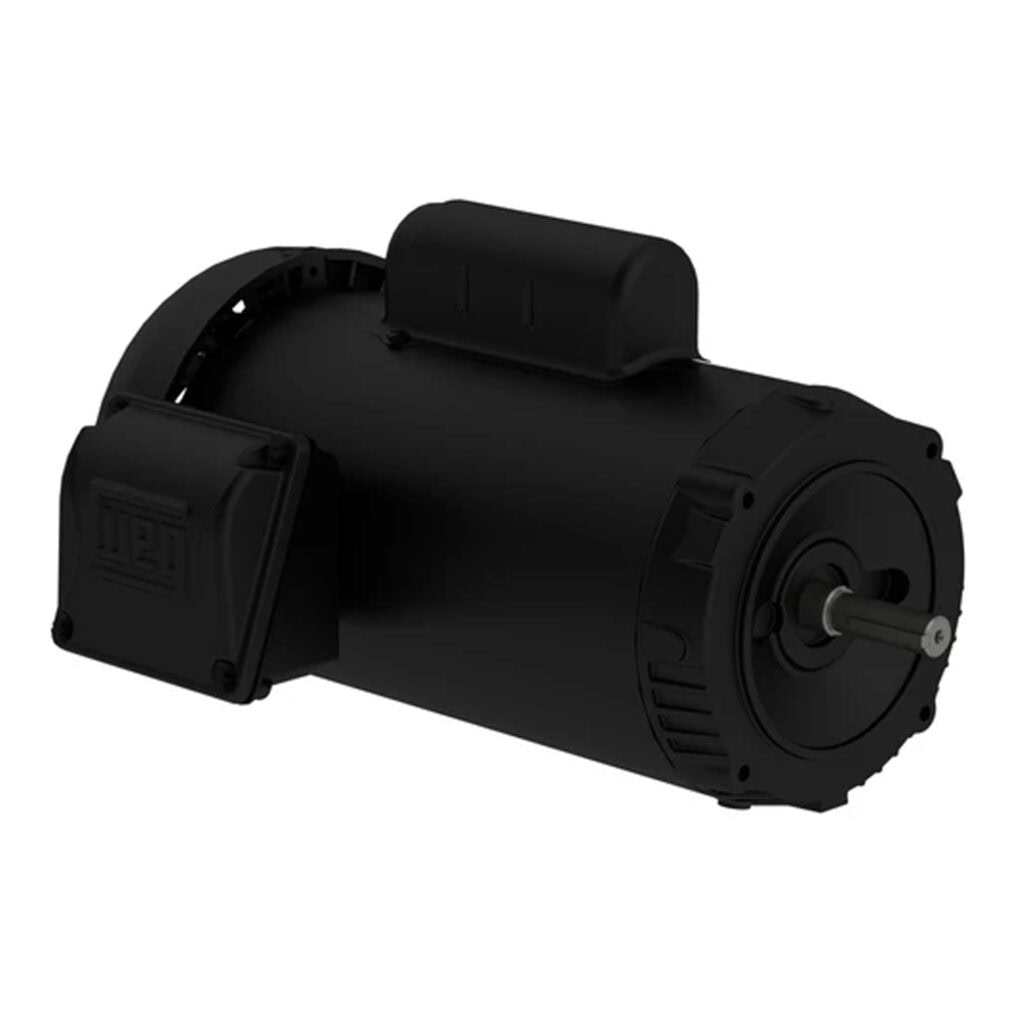

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.
Standard | NEMA MG-1 |
---|---|
Frequency | 60 Hz |
Voltage | 115/208-230 V |
Number of poles | 4 |
Degree of Protection | IP55 |
Synchronous speed | 1800 rpm |
Output rating | 1 HP |
Mounting | Footless |
Flange | C |
Mounting | F-1 |
Terminal box¹ | Left position |
Enclosure | IC411 – TEFC |
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance.
Standard | NEMA MG-1 |
---|---|
Frequency | 60//50 Hz |
Voltage | 230/460//190-220/380-415 V |
Number of poles | 4 |
Degree of Protection | IP55 |
Synchronous speed | 1800 rpm |
Output rating | 7.5 HP |
Mounting | Foot-mounted |
Flange | C |
Mounting | F-1 |
Terminal box¹ | Left position |
Enclosure | IC411 – TEFC |

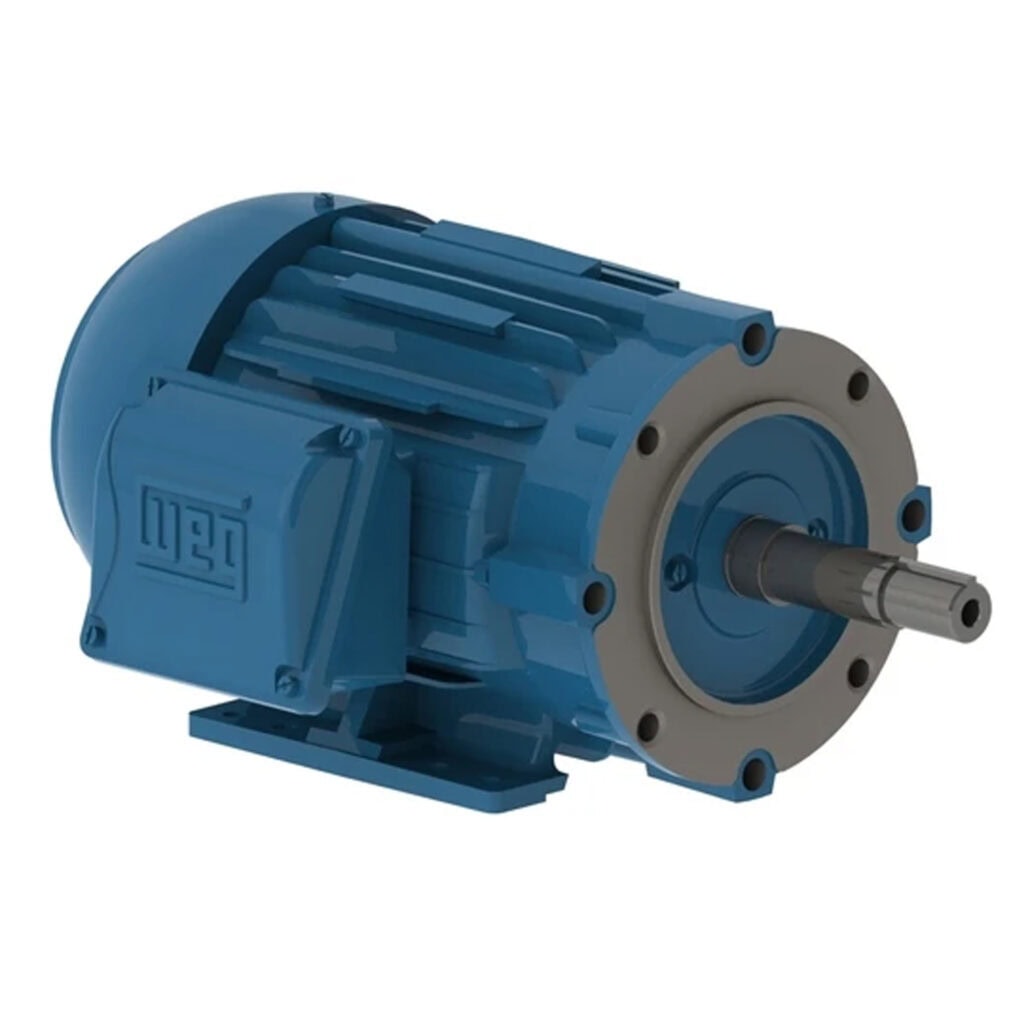

High starting torque
For applications on commercial and industrial pumps (JM/JP – mechanical seal/gasket)
Suitable for domestic and rural power supply conditions
Standard | NEMA MG-1 |
---|---|
Frequency | 60 Hz |
Voltage | 115/208-230 V |
Number of poles | 2 |
Degree of Protection | IP55 |
Synchronous speed | 3600 rpm |
Output rating | 5 HP |
Mounting | Foot-mounted |
Flange | C |
Mounting | F-1 |
Terminal box¹ | Left position |
Enclosure | IC411 – TEFC |

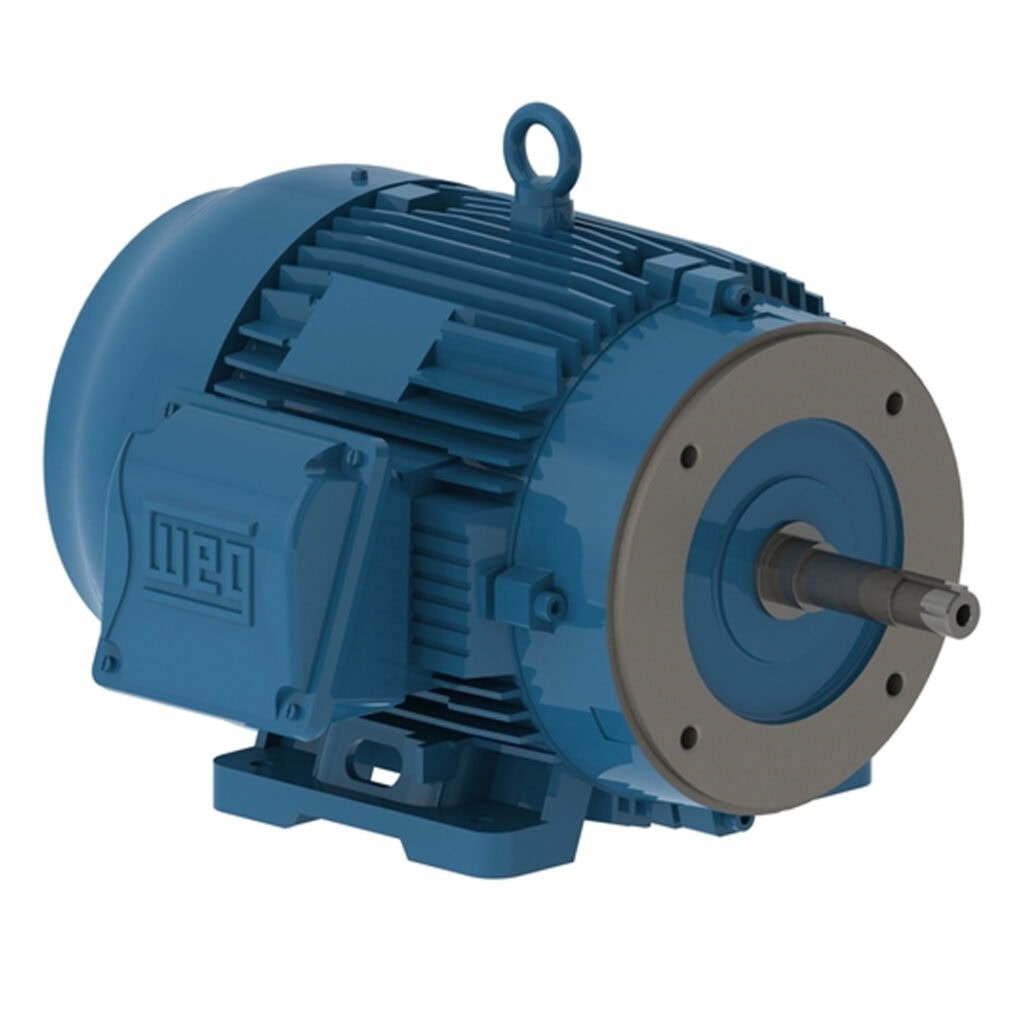

Available with Internal Shaft Grounding Ring – AEGIS
Standard | NEMA MG-1 |
---|---|
Frequency | 60//50 Hz |
Voltage | 208-230/460//380 V |
Number of poles | 2 |
Degree of Protection | IP55 |
Synchronous speed | 3600 rpm |
Output rating | 3 HP |
Mounting | Foot-mounted |
Flange | C |
Mounting | F-1 |
Terminal box¹ | Left position |
Enclosure | IC411 – TEFC |
Available with Internal Shaft Grounding Ring – AEGIS
Standard | NEMA MG-1 |
---|---|
Frequency | 60//50 Hz |
Voltage | 230/460//380 V |
Number of poles | 2 |
Degree of Protection | IP55 |
Synchronous speed | 3600 rpm |
Output rating | 3 HP |
Mounting | Foot-mounted |
Flange | C |
Mounting | F-1 |
Terminal box¹ | Left position |
Enclosure | IC411 – TEFC |

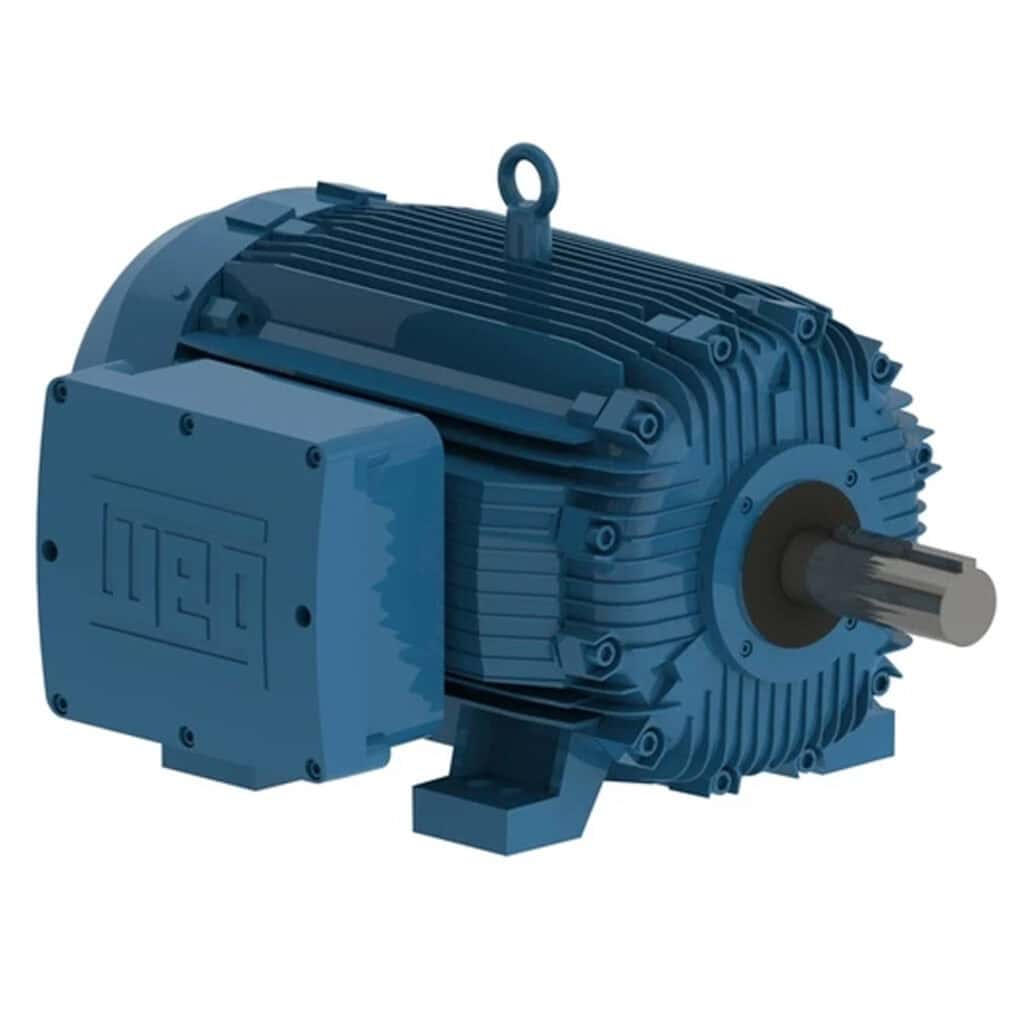

The Explosion Proof Motor is the WEG Solution designed for hazardous location in accordance with the hardest standard criteria assuring safety, energy saving and low operational costs.
Standard | NEMA MG-1 |
---|---|
Frequency | 60//50 Hz |
Voltage | 230/460//380 V |
Number of poles | 2 |
Degree of Protection | IP55 |
Synchronous speed | 3600 rpm |
Output rating | 10 HP |
Mounting | Foot-mounted |
Flange | Without |
Mounting | F-1 |
Terminal box¹ | Left position |
Enclosure | IC411 – TEFC |
