Description
| Brand | GPTCO |
| Manufacturer’s Warranty | 1 years Limited Warranty |
| Ship Weight | |
| Service Factor | 1.15 |
| Material | Stainless Steel 304 |
| Volts | 460 – Three Phase |
| In(A)
Imax Istart |
54.7
64.2 307.8 |
| HP | 40 |
| KW | 30 |
| R.P.M | 3450 |
| Power factor% (Allowable load)
Power factor% (Overload Factor) |
0.85
0.87 |
| Efficiency%(Allowable load)
Efficiency%(Overload Factor) |
84.3
84.3 |
| Need Capacitor
Need Starter |
No
Optional |
| Cable section (AWG) | 4 x 8.0 |
| Cable length (ft.) | 5.5 |
| Dimensions L x W x H (in.) | 5.5 x 5.5 x 4.2.4 |
| Product Weight (lbs.) | 212.5 |
| Production Country | Taiwan |

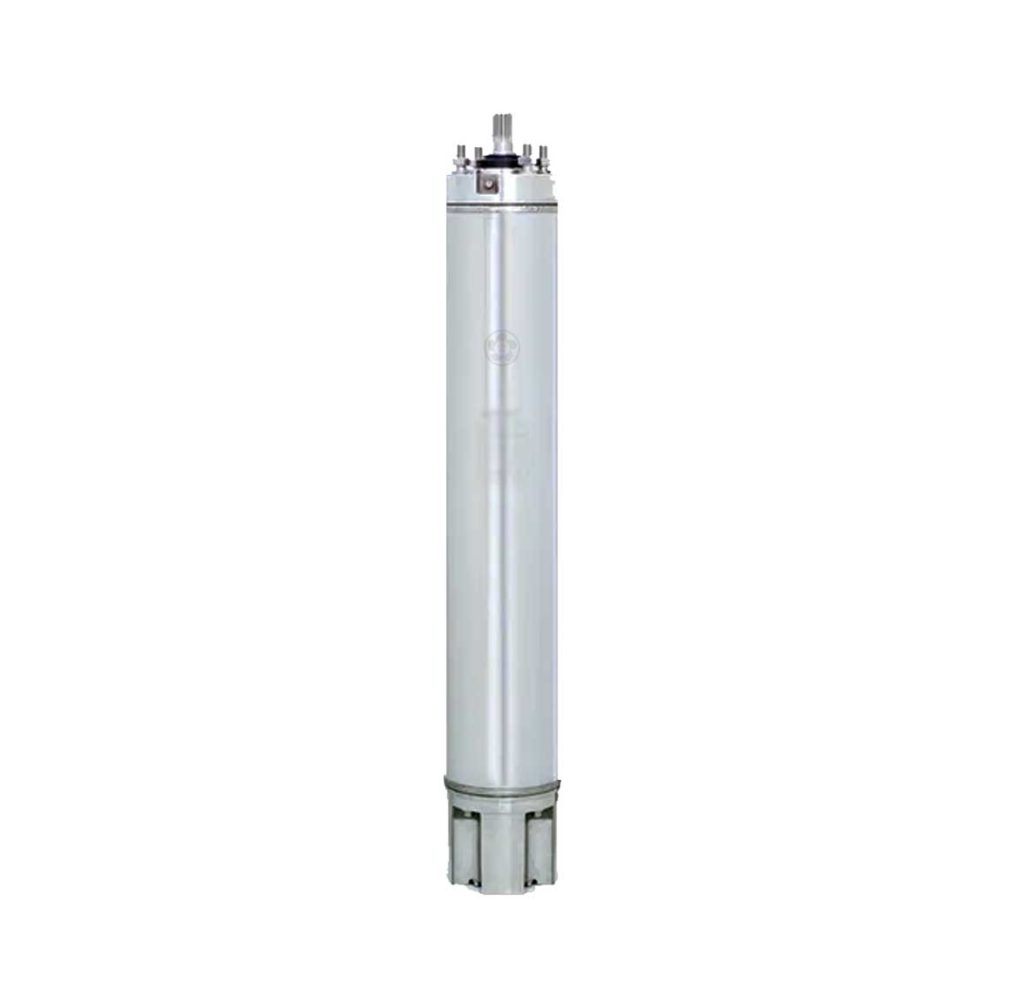

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.
Product advantages
- Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
- High efficiency provides operation cost savings Thrust pad
- Copper wiring
- Pressure equalizing diaphragm
- Removable lead connector
- Control boxes available for single phase motor Standard NEMA mounting dimensions
Technical specifications
- Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap. Max. Immersion depth: 200m
- Protection: IP68
- Nos. of start per hour: max 20 at regular intervals.
- Sand slinger and lip seal.
- Insulation: Class F
- Rated ambient temperature: 30°C with min.
- Cooling flow 0.08 m/s of water flow speed
- Standard installation position: vertical and horizontal
Made in Taiwan
