Gol Pumps Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

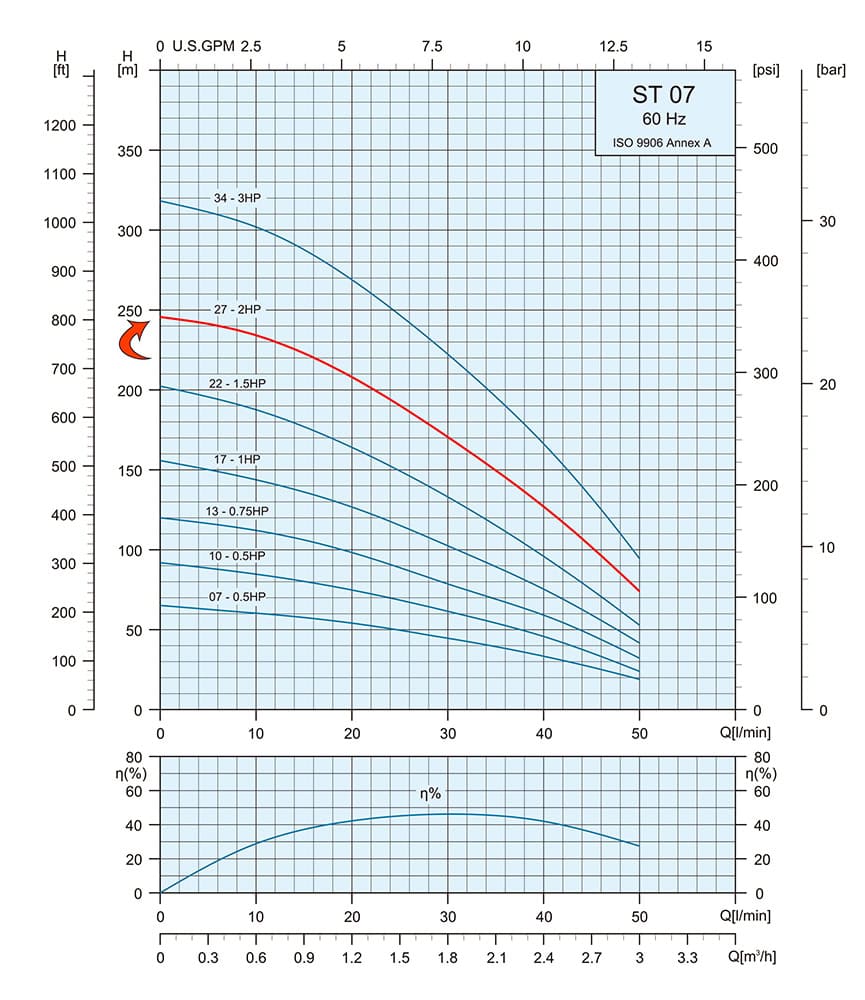

Pump Spec

• Max Head (ft): 807
• Max Flow (Gpm): 13
• Discharge: 1 1/4″
• HP: 2
• Pump Material: Noryl
• Pump Model: GST 07-27

Product Advantages

• Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
• High efficiency provides operation cost savings Thrust pad.
• Copper wiring.
• Pressure equalizing diaphragm.
• Removable lead connector.
• Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

• Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
• Max. Immersion depth: 985 ft.
• Protection: IP68.
• Nos. of start per hour: max 20 at regular intervals.
• Sand slinger and lip seal.
• Insulation: Class F.
• Rated ambient temperature: 86°F with min.
• Cooling flow 0.08 m/s of water flow speed.
• Standard installation position: vertical and horizontal.

*(Includes wire splice kit)
