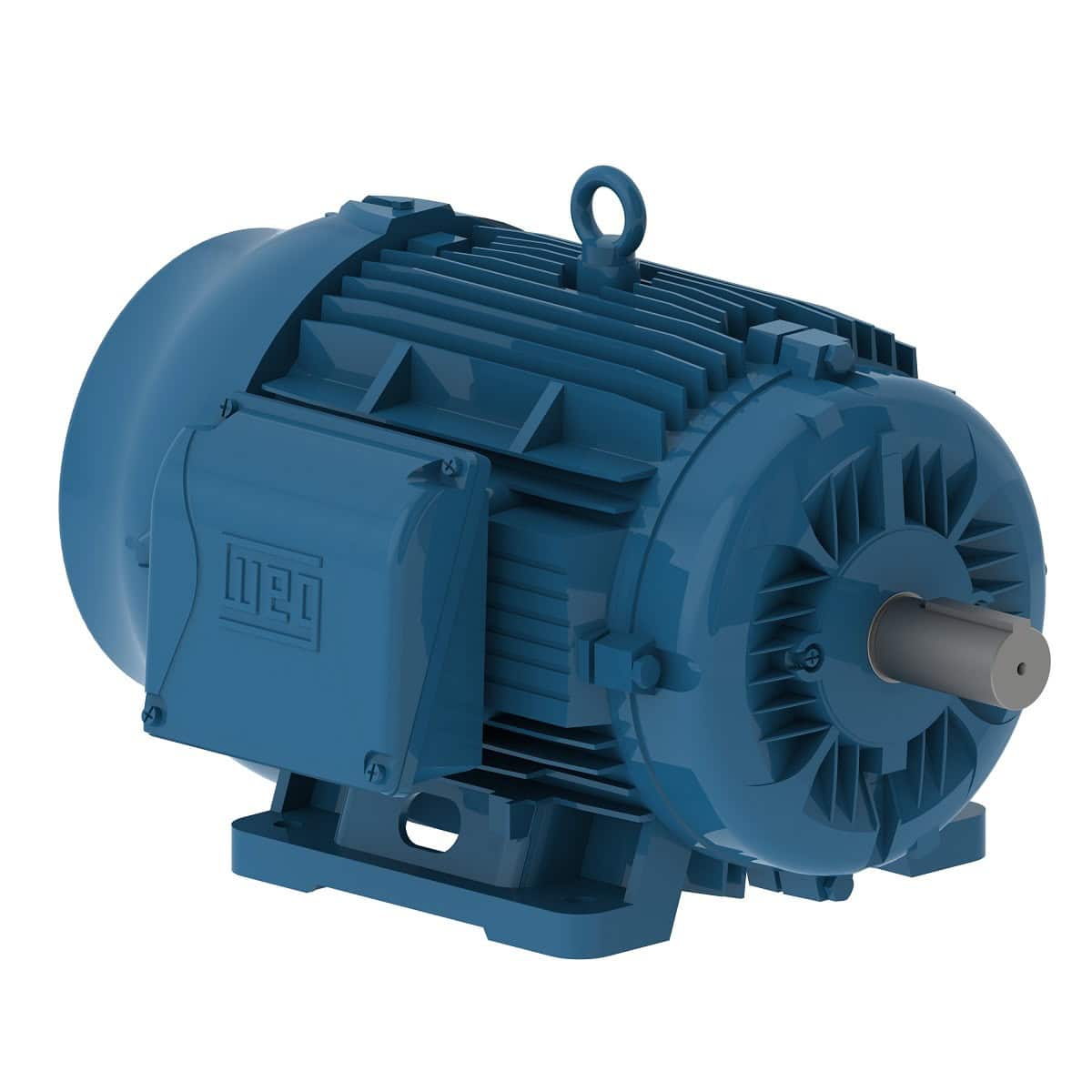

WEG NEMA Induction Motor Squirrel Cage W22 – 30HP, 230/460V – 3P, 1765RPM, Model 03018ET3E286TS-W22

5/5

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


WEG NEMA Induction Motor Squirrel Cage W22 – 30HP, 230/460V – 3P, 1765RPM, Model 03018ET3E286TS-W22

5/5

 Unit Price Only

$2,449.99

5 - 7 Business days - Free Shipping

Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Cart

Advertisement

Product Data >>>

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460V
Number of Poles 4
Degree of Protection IP55
Synchronous Speed 1800 Rpm
Output Rating 30HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal Box Left position
Enclosure IC411 – TEFC

Description

Technical Data

Parts

V-Ring Seal

V-Ring Seal to avoid the liquids and dust inlet in the motor.

Capacitor

With runner capacitor, runner and permanent capacitor or permanent capacitor.

Cast Iron Frame

  • FC-200 (EN GJL 200) cast iron frames meeting impact level IK08 (5J) ensuring superior mechanical strength for the most demanding applications.
  • Solid motor feet providing excellent rigidity, allowing easier alignment and installation.
Centrifugal Switch

The starting system of W22 single phase motors was completely redesigned to improve functionality, thus increasing system reliability and lifespan.

Cooling System

  • The cooling system (fan, non-drive end shield and fan cover) is designed to minimize noise level and improve thermal efficiency.
  • Steel plate fan cover provides high mechanical strength, corrosion resistance and extended lifetime.

Dimensions

Electric Motors

Frame 284/6TS
Output 30 HP (22 kW)
Number of Poles 4
Frequency 60 Hz
Rated Speed 1765 rpm
Slip 1.94 %
Rated Voltage 230/460 V
Rated Current 70.2/35.1 A
L. R. Amperes 428/214 A
LRC 6.1x(Code G)
No Load Current 26/13 A
Rated Torque 89.3 ft.lb
Locked Rotor Torque 240 %
Breakdown Torque 240 %
Locked Rotor Time 36s (cold) 20s (hot)
Moment of Inertia (J) 5.85 sq.ft.lb
Design B
Insulation Class F
Service Factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient Temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 – TEFC
Mounting F-1
Rotation Both (CW and CCW)
Noise Level 63 dB(A)
Approx. Weight 465 lb

Efficiency

50% 75% 100%
93 93 93.6

Power Factor

50% 75% 100%
0.70 0.80 0.84

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main Terminal Box Hole NPT 1.5″
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 – C2)
Grounding Lugs Single
Fan Cover Material Cast Iron
Tropicalized Painting Without
Fan Material Plastic
Bearing Cap Yes – Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload Protector (Phenolic) Without overload protector
Connection Cables Quantity 12
