Description
Detail:

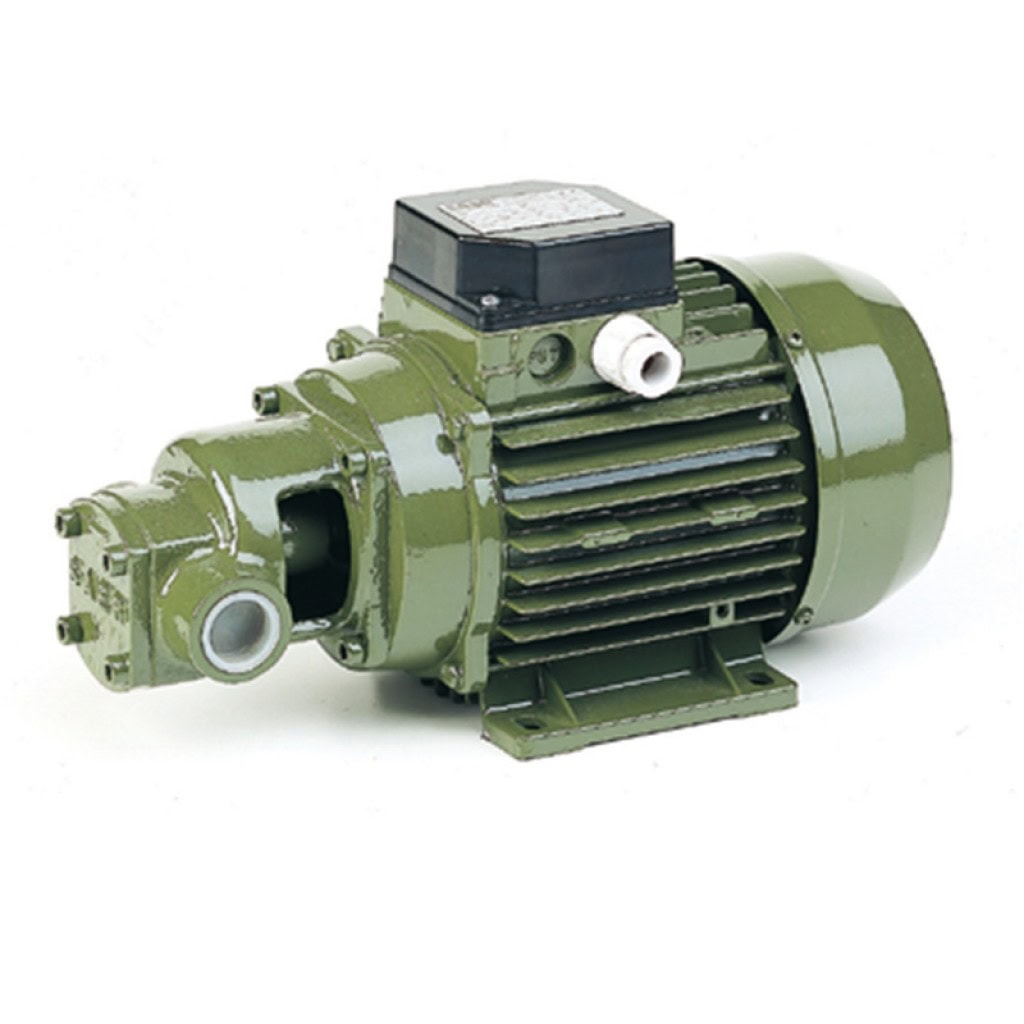

This series of self priming gear pumps operates according to principle of positive movement. They transmit energy to the pumped liquid by two rotating geared wheels and are suitable for lifting liquid to a maximum of 26 ft.
In the event that the pump capacity is too great for the application, the flow maybe throttled down by means of by-pass valve.
The by-pass valve must only be fitted on the discharge of the pump for installed in the plant immediately after the pump.
Applications:
- – Varnish, Thick oil, Viscous liquids, Glue, Molasses, Soaps, Grease etc.
- Note: The liquid must be free of any solid content
Pump Construction:
-Pump body in cast iron with lateral threaded connections, one in steel and one in bronze
-Seal in with radial rings in rubber
-Rotor fitted with seal for life bearings
-Totally enclosed fan cooled motor(TEFC)
-Protection IP44
Brand: SAER-USA
MADE IN ITALY
More Details:
| Model | CFP |
| Brand | Saer-USA |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ship Weight | 24 lbs |
| Port Size (in.) | 3/4 |
| Flow (GPH) | 156 |
| HP | 0.5 |
| RPM
Volts AMP |
1750
220 – Single Phase 3.3 |
| Max. Total Head (ft.) | 318 |
| Max. Suction Lift (ft.) | 26 |
| Max. PSI | 140 |
| Suction Port (in.) | 3/4 |
| Discharge Port (in.) | 3/4 |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 12 x 5.3 x 7.1 |
| Product Weight (lbs.) | 22 |
