Description
SPERONI Shallow Well Jet Pump – CAM98
Self-priming shallow well jet pump with high hydraulic performance and strong pressure capacity.
Suitable for potable water, domestic distribution, and small/medium tank applications.
Brand: SPERONI • Made in Italy
Quick Specs
- Max Head: 154 ft
- Max Flow: 1250 GPH
- Max Suction Lift: 26.2 ft
- Motor: 1.3 HP • 220V • 1 Phase • 60Hz
- Ports: 1" suction / 1" discharge

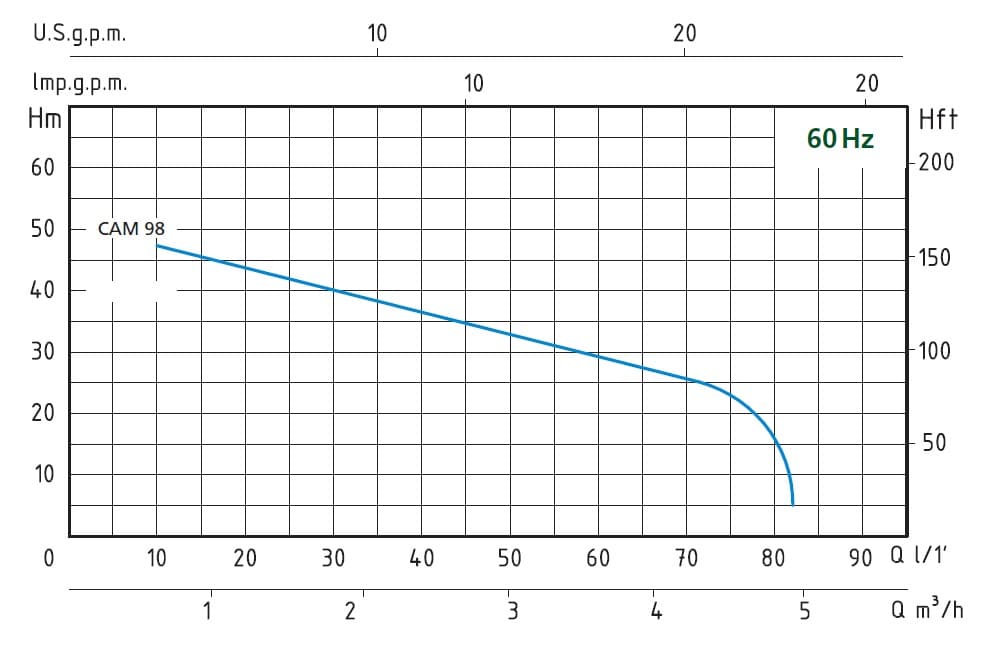

Performance Curve (60Hz)
Click the curve to open full size. Curve values are approximate and may vary depending on installation, suction conditions, and system losses.
Operating Conditions
- Liquid temperature up to 95°F (home use according to EN 60335-2-41)
- Ambient temperature up to 104°F
- Total suction lift up to 26.2 ft
Motor
- Single-phase 220V – 60Hz
- Insulation Class F
- Protection IP44
- AMP: 5.8
Materials
- Pump Body: Stainless Steel 304
- Motor Support: Aluminium
- Impeller: Stainless Steel 304
- Diffuser: Noryl
- Pump Flange: Stainless Steel 304
- Shaft with rotor: Stainless Steel 304
- Mechanical Seal: Ceramic / Graphite / NBR
More Details
| Specification | Value |
|---|---|
| Model | CAM98 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 Year Limited Warranty |
| Impeller Material | Stainless Steel 304 |
| Port Size (in.) | 1" |
| Flow (GPH) | 1250 |
| HP | 1.3 |
| Volts | 220V • 1 Phase |
| AMP | 5.8 |
| Max Total Head (ft.) | 154 |
| Max Suction Lift (ft.) | 26.2 |
| Max PSI | 68 |
| Suction Port (in.) | 1" |
| Discharge Port (in.) | 1" |
| Self-Priming | Yes |
| Dimensions (L × W × H) | 16.3 × 8.1 × 8.3 in |
| Product Weight (lbs.) | 26 |
Follow the nameplate and official curve for your exact voltage/frequency variant.
Compliance
Designed according to EN 60335-2-41 safety standards. Use proper suction accessories and a foot valve/check valve to maintain prime.
Dimensions (mm)
| Model | A | B | C | D | E | F | G | H | H1 | DNA | DNM | P | L | H (Overall) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAM98 | 210 | 113 | 415 | 176 | 140 | 9 | 206 | 212 | 154 | 1" | 1" | 212 | 453 | 230 | 11.4 |
Scroll horizontally to view full table on mobile devices. Dimensions are approximate and subject to manufacturer tolerances.
