Description

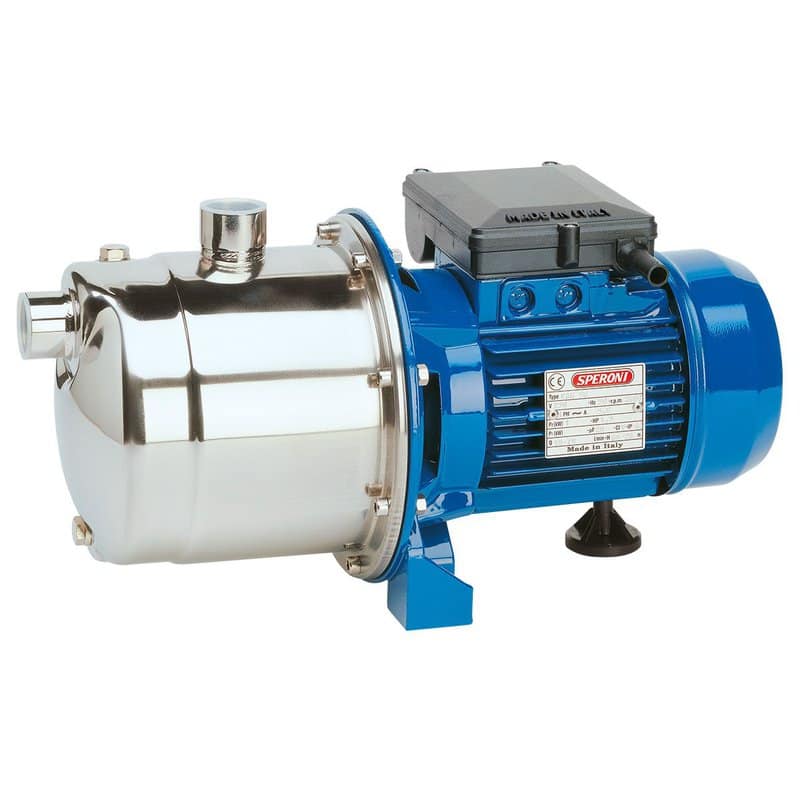

SPERONI Shallow Well Jet Pump – CAM198
Self-priming shallow well jet pump with very high hydraulic performance and strong pressure capacity —
suitable for potable water, water lifting, and domestic distribution in small and medium tank systems.
Brand: SPERONI • Made in Italy
Quick Specs
- Max Total Head: 154 ft
- Max Flow: 1260 GPH
- Max Suction Lift: 26.2 ft
- Motor: 1.6 HP • 230V • 1 Phase
- Ports: 1 1/4" suction / 1" discharge
Always confirm exact performance with the curve for your operating point and voltage selection.

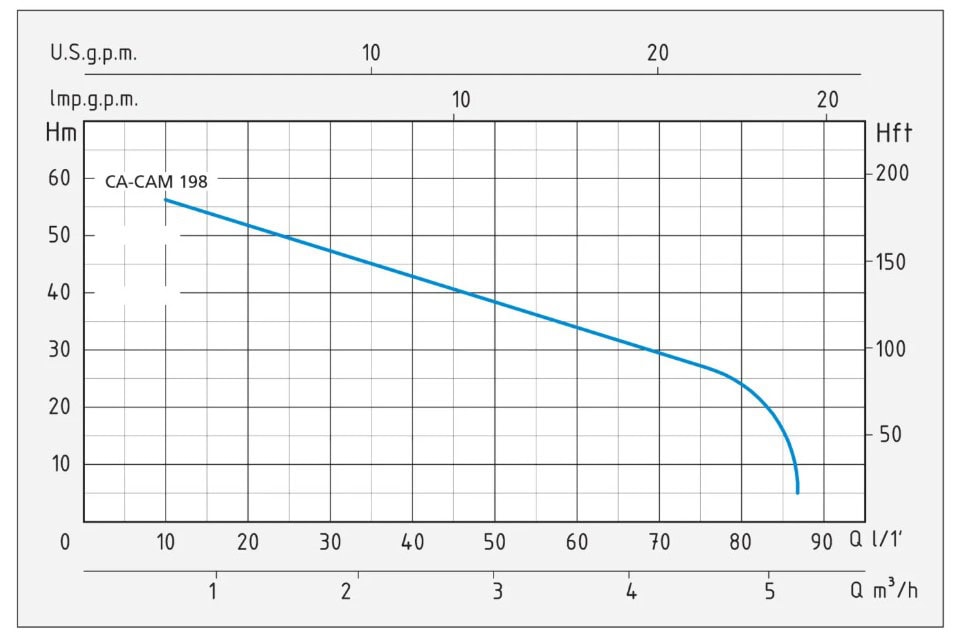

Performance Curve (60Hz)
Click the curve to open full size.
Operating Conditions
- Liquid temperature up to 95°F (home use according to EN 60335-2-41)
- Ambient temperature up to 104°F
- Total suction lift up to 26.2 ft
Motor
- Single-phase 230V – 60Hz
- Insulation Class F
- Protection IP44
- AMP: 5.8
Materials
- Pump body: Stainless Steel 304
- Motor support: Aluminium
- Impeller: Noryl
- Diffuser: Noryl
- Pump flange: Stainless Steel 304
- Shaft with rotor: Stainless Steel 304
- Mechanical seal: Ceramic / Graphite / NBR
More Details
| Specification | Value |
|---|---|
| Model | CAM198 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 Year Limited Warranty |
| Impeller Material | Stainless Steel 304 |
| Port Size (in.) | 1" |
| Flow (GPH) | 1260 |
| HP | 1.6 |
| Volts | 230V • 1 Phase |
| AMP | 5.8 |
| Max Total Head (ft.) | 154 |
| Max Suction Lift (ft.) | 26.2 |
| Max PSI | 68 |
| Suction Port (in.) | 1 1/4" |
| Discharge Port (in.) | 1" |
| Self-Priming | Yes |
| Dimensions (L × W × H) | 16.3 × 8.1 × 8.3 in |
| Product Weight (lbs.) | 32.0 |
Dimensions (inches) – Scroll
| Model | A | B | C | D | E | F | G | H | H1 | DNA | DNM | P | L | H (Overall) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAM198 | 8.27 | 4.45 | 17.01 | 6.93 | 5.51 | 0.35 | 8.11 | 9.06 | 6.06 | 1 1/4" | 1" | 9.25 | 19.29 | 11.61 | 32.0 |
Values converted from manufacturer metric dimensions (mm/kg) and rounded for web display.

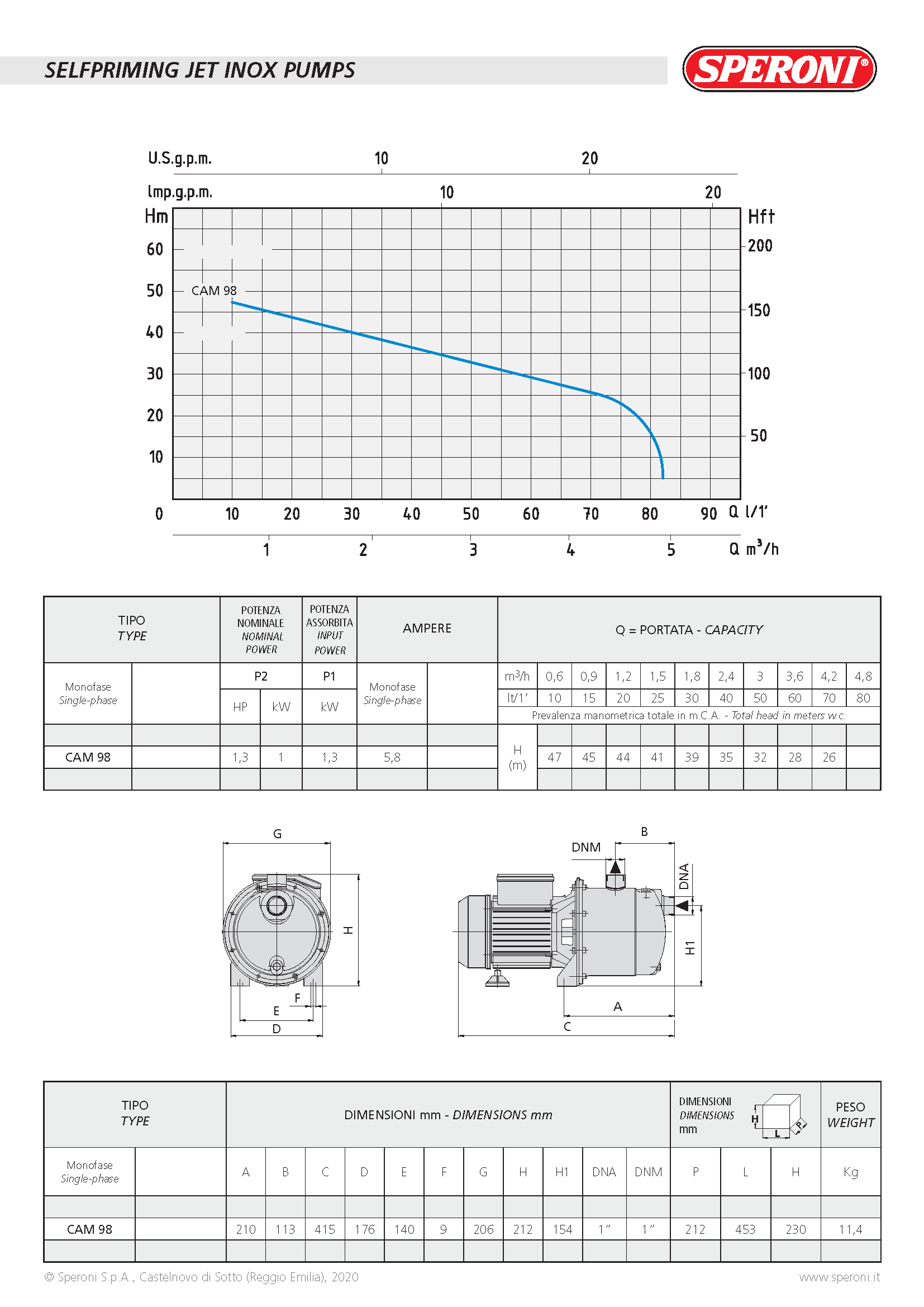

Technical Drawing
Click drawing to enlarge.
Compliance
Operating limits referenced from manufacturer documentation (including EN 60335-2-41 for home use). Use proper suction accessories (foot valve/check valve and strainer) to maintain prime and protect the pump.
Additional information
| Weight | 27 lbs |
|---|---|
| Dimensions | 20 × 15 × 12 in |
