Description

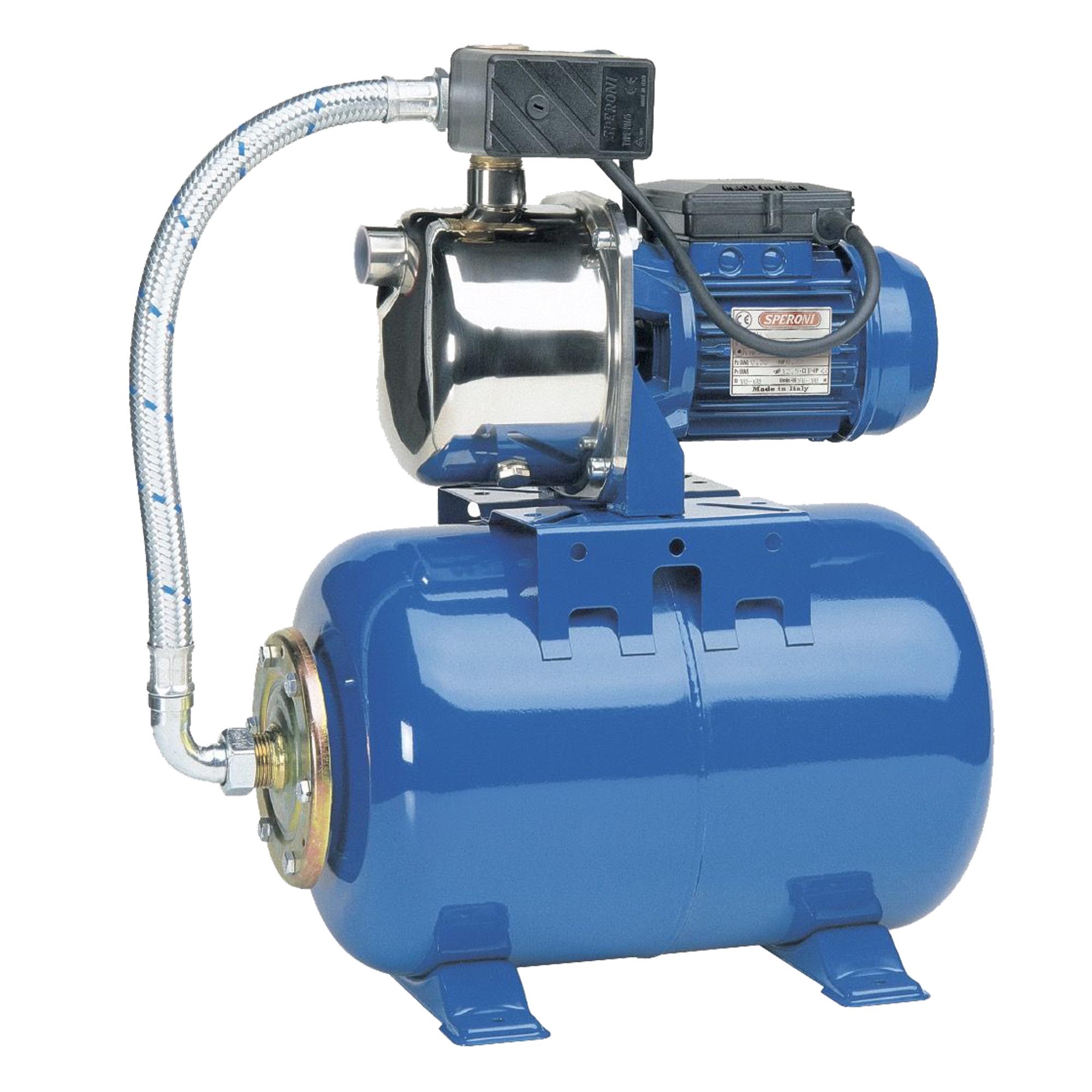

Pump with Pressure Tank
APPLICATION
Automatic high pressure groups coupled with self priming jet pumps. They are very silent and reliable and particularly suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.
OPERATING CONDITIONS
- Temperature max. liquid: 95°F (for other uses)
- Ambient temperature up to 104°F
- Total suction lift up to 8 mt
- Continuous duty
MOTOR
- Single-phase 110/220V-60Hz
- Two-Pole induction motor (n = 3450Â min-1)
- Insulation Class F
- Protection IP 44
MATERIALS
- Butyl membrane tank
- Flexible hose with connection
- Adjusted switch on/off pressure 23-46 psi with cable
- Pressure gauge
- Brass connection
More Details:
| Model | CAM98N/25 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Impeller Material | Stainless Steel 304 |
| Port Size (in.) | 1 |
| Flow (GPH) | 900 |
| HP | 1.3 |
| Volts AMP | 220V – 1 Phase 5.8 |
| Max. Total Head (ft.) | 154 |
| Tank Capacity (gal.) | 5.3 |
| Max. Suction Lift (ft.) | 26.2 |
| Pressure switch range (psi) | 23-46 |
| Suction Port (in.) | 1 |
| Discharge Port (in.) | 1 |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 21 x 11 x 23 |
| Product Weight (lbs.) | 45 |
PERFORMANCE CURVE
