Description

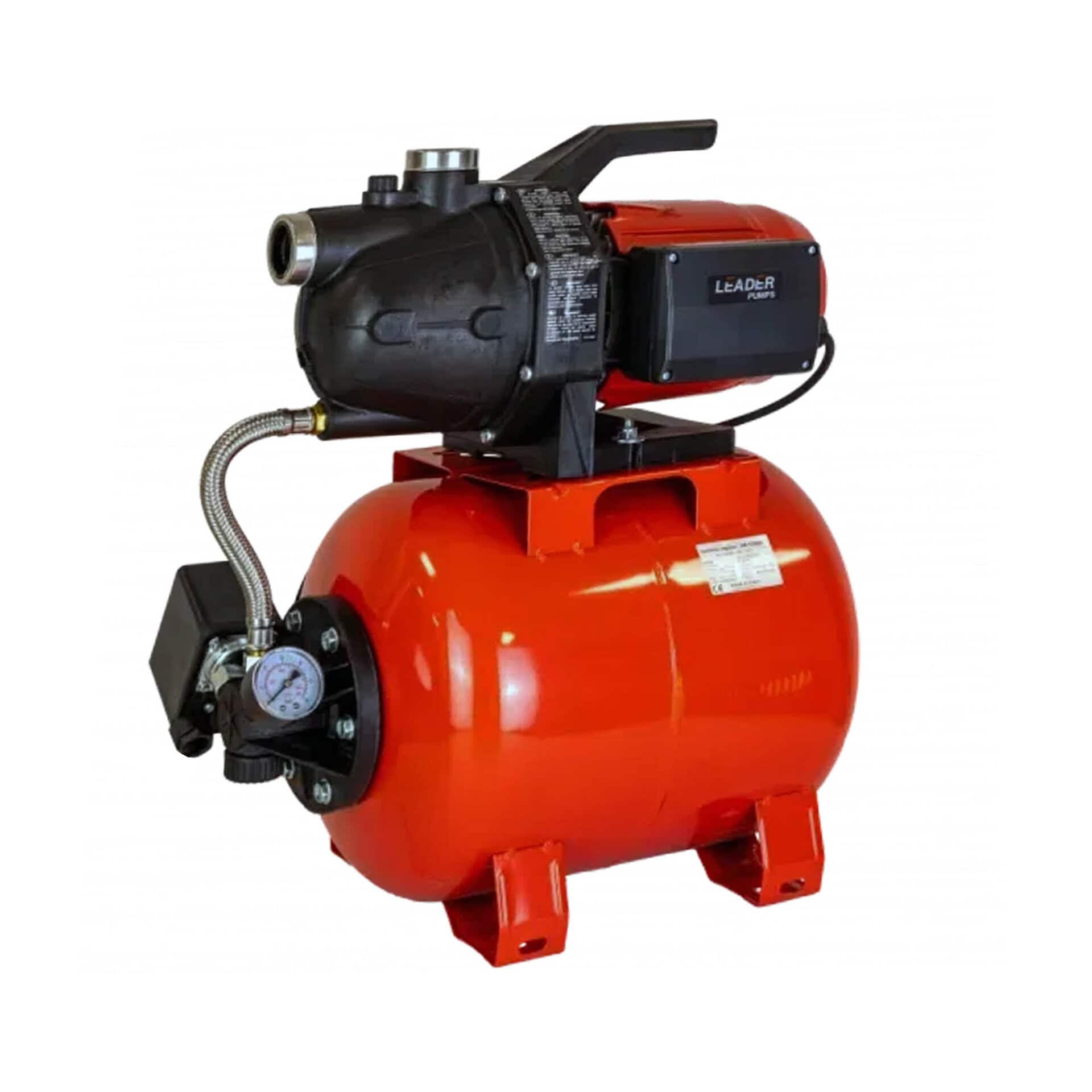

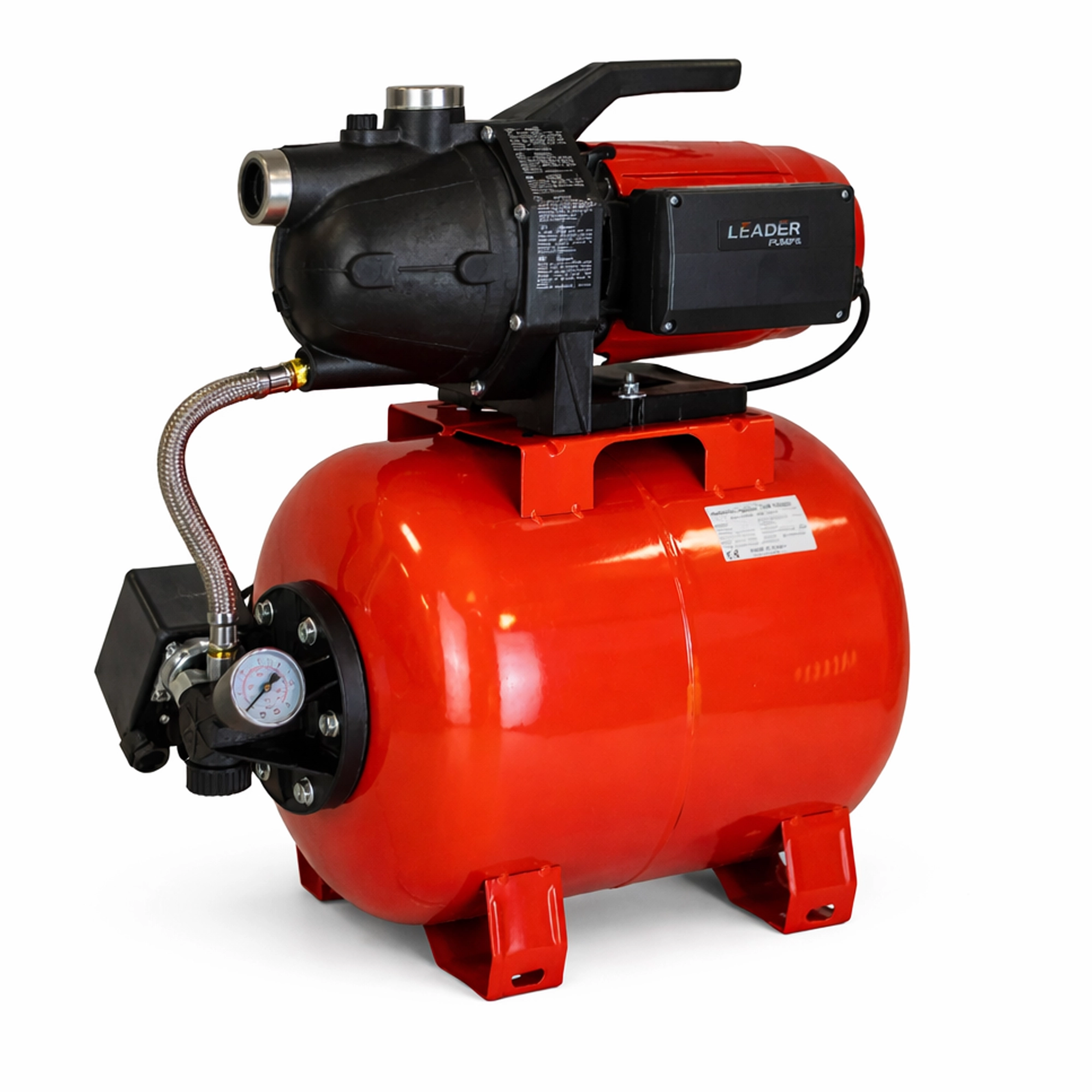

Pump with Pressure Tank
TECHNICAL DATA
Operating Range: ECOMATIC 110 to 130 From 1 to 21gpm with a head up to 164ft (71 psi )
Liquid quality requirements:clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized, chemically neutral, close to the characteristics of water
Liquid temperature Range: From 32°F to 104°F
Maximum suction depth: 26 ft
Maximum ambient temp.: 104°F
Maximum operating pressure: 116 psi
Installation: fixed or portable in a horizontal position
Special version on request other voltages and/or frequencies
Features
- Tank membrane made in butile.
- Constructional features of the pump.
- Technopolymer pump body and motor support.
- Carbon/ceramic mechanical seal.
- Technopolymer impeller, diffuser, venturi and nozzle in ECOJET
- Construction of the motor
- Induction motor, closed and cooled with external ventilation.
- Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and a long life.
- Built-in thermal and current overload protection on ECOMATIC 110
- Bult-in thermal and resetable overload protection on ECOMATIC 120F & 130
- Motor protection: NEMA 3
- Insulation class: F
Advantages
- Designed to automatically start and stop the pump when taps are opened or closed.
- Compact design with pressure switch, pressure gauge, and drainage tap positioned on tank flange.
- fully adjustable pressure settings.
More Details:
| Model | ECOMATIC 110 |
| Brand | LEADER |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Impeller Material | Noryl |
| Port Size (in.) | 1 |
| Flow (GPH) | 960 |
| HP | 0.5 |
| Volts
AMP |
110V – 1 Phase
8.0 |
| Max. Total Head (ft.) | 138 |
| Tank Capacity (gal.) | 16 |
| Max. Suction Lift (ft.) | 17 |
| Max. PSI | 60 |
| Suction Port (in.) | 1 |
| Discharge Port (in.) | 1 |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 18 x 11 x 21 |
| Product Weight (lbs.) | 27.8 |

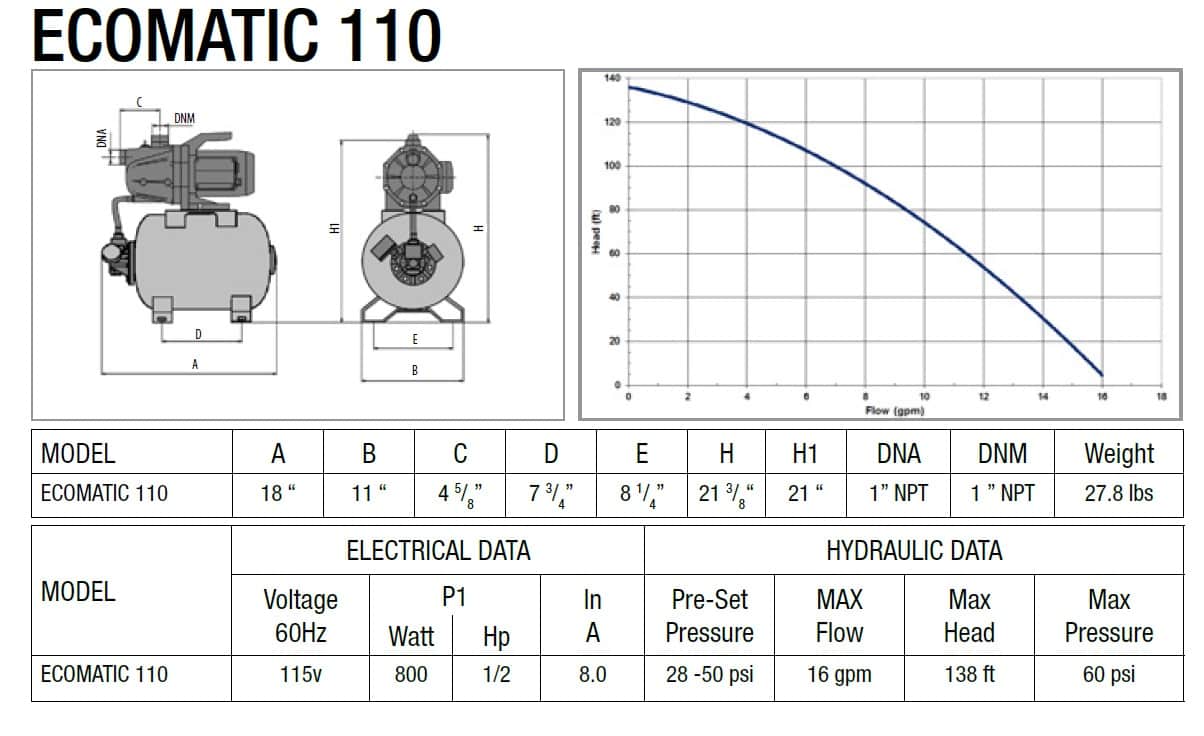

PERFORMANCE
