Description
Made in Italy

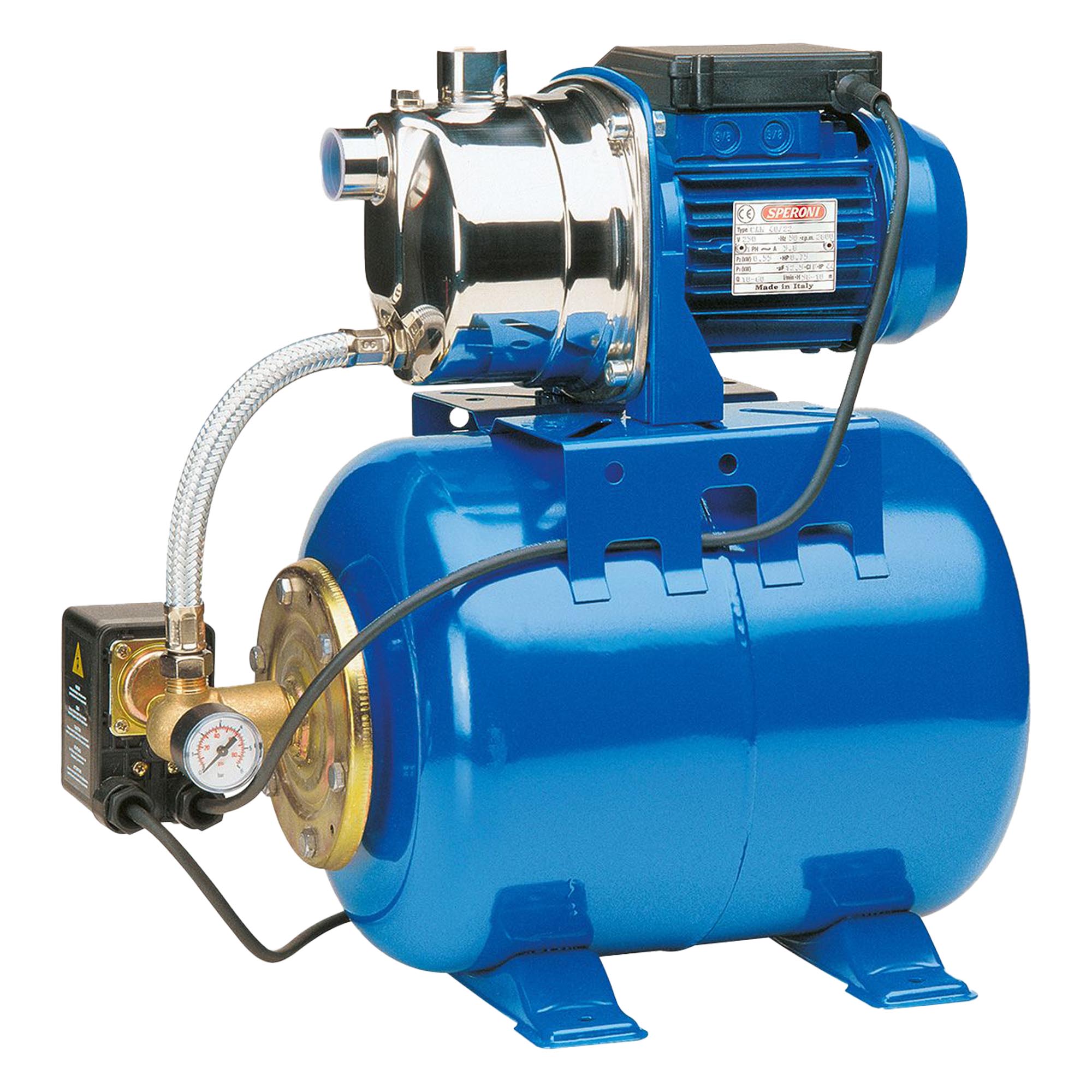

Pump with Pressure Tank
APPLICATION
Automatic high pressure groups coupled with self priming jet pumps. They are very silent and reliable and particularly suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.
OPERATING CONDITIONS
- Temperature max. liquid: 95°F (for other uses)
- Ambient temperature up to 104°F
- Total suction lift up to 8 mt
- Continuous duty
MOTOR
- Single-phase 110/220V-60Hz
- Two-Pole induction motor (n = 3450 min-1)
- Insulation Class F
- Protection IP 44
MATERIALS
- Butyl membrane tank
- Flexible hose with connection
- Adjusted switch on/off pressure 20-40 psi with cable
- Pressure gauge
- Brass connection
More Details:
| Model | CAM80/22 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Impeller Material | Noryl |
| Port Size (in.) | 1 |
| Flow (GPH) | 792 |
| HP | 0.8 |
| Volts
AMP |
110/220V – 1 Phase
8.8/3.8 |
| Max. Total Head (ft.) | 125 |
| Tank Capacity (gal.) | 5.3 |
| Max. Suction Lift (ft.) | 26.2 |
| Pressure range on pressure switch (PSI) | 20-40 |
| Suction Port (in.) | 1 |
| Discharge Port (in.) | 1 |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 21.3 x 11 x 19 |
| Product Weight (lbs.) | 45 |
PERFORMANCE CURVE
