Description

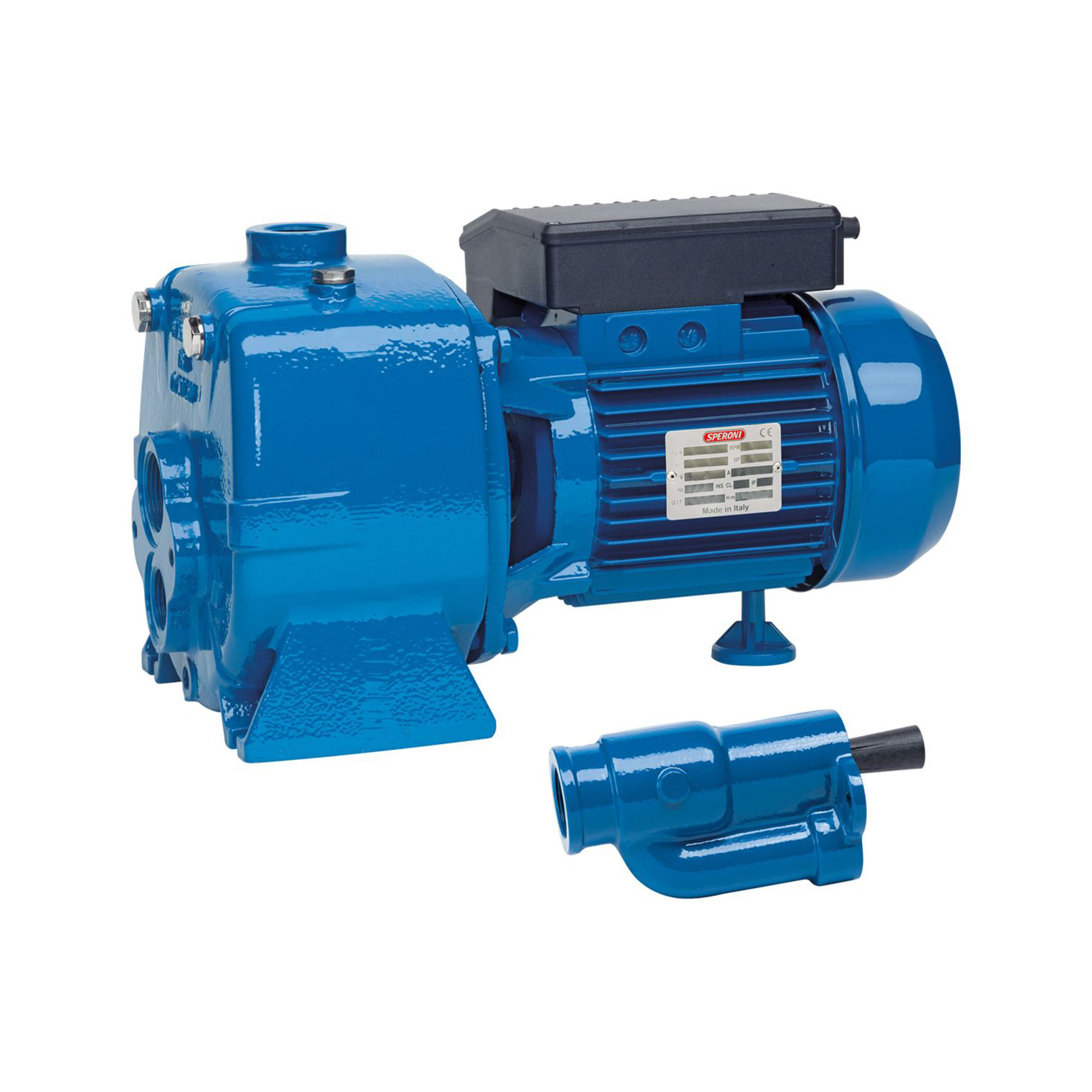

The Speroni APM 150 is a Well Jet Self Priming Pump, jet pump and is great for draining water from wells. This pump is also suitable for use with domestic fittings with small to medium sized tanks.
Made in Italy.
Features

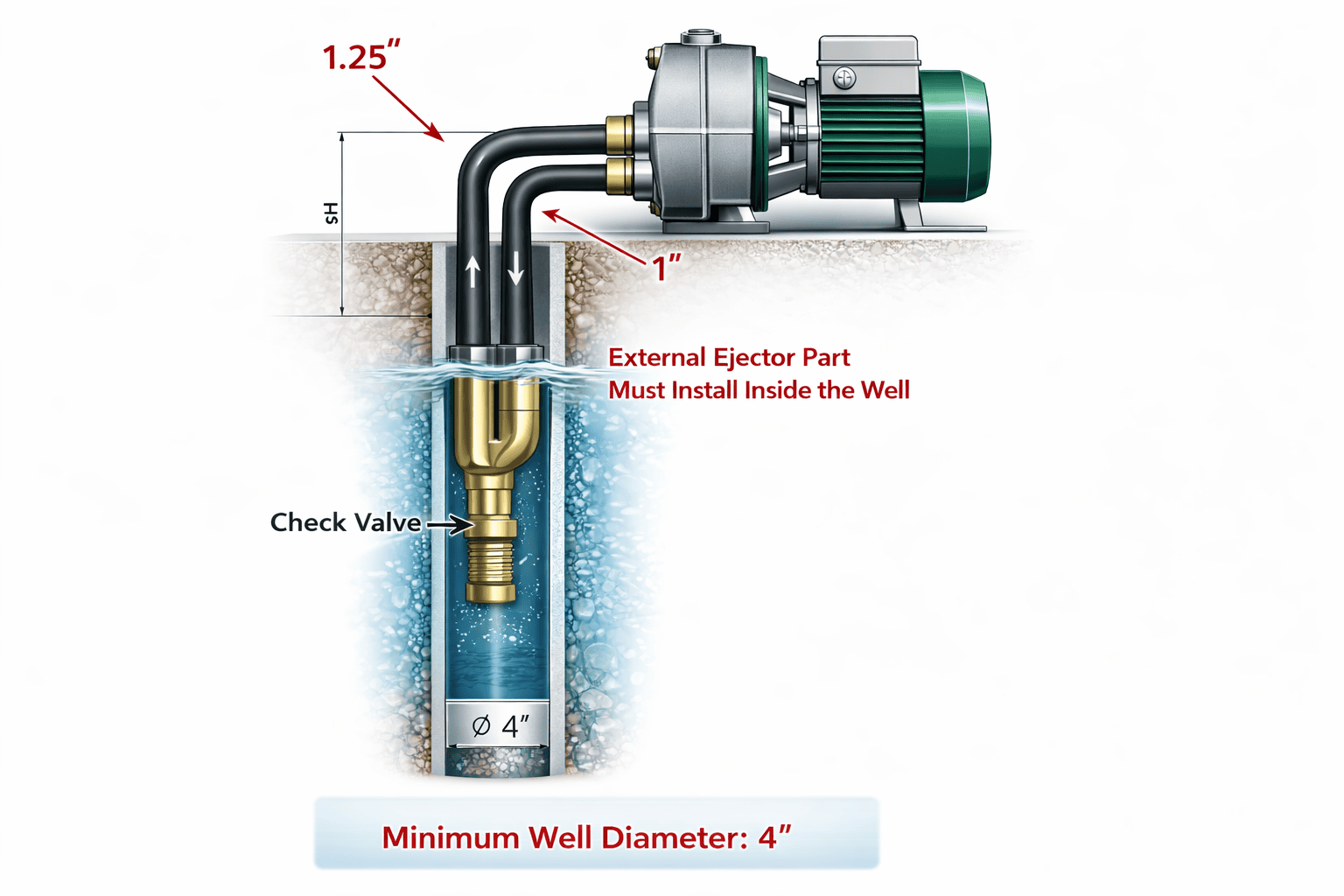

The separate ejector pump is basically a centrifuge with a possibility of becoming a self-priming jet pump with deep suction by fitting the ejector in the well onto the end of the suction pipe. Recirculation of water passing through the Venturi attracts water from below and pushes it through the return (suction) pipe creating enough pressure to take it up to the surface. For these deep suction applications two pipes need to be connected: the delivery pipe to the ejector and the return (suction) outlet, in this case the diameter of the well must be at least 4″.
Operating Conditions
- Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
- Temperature max. liquid: 95°F (for other uses)
- Ambient temperature up to 104°F
- Total suction lift up to 164ft.
- Standard ejector P30
Motor
- Two-Pole induction motor (n = 3450 min-1)
- Insulation Class F
- Protection IP 55
Materials
- Pump body: Cast Iron
- Motor support: Cast Iron
- Impellers: Noryl
- Diffuser: Noryl
- Ejector: Cast Iron
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
Applications
Self-priming water pumps for deep suctions up to 164ft to be used in case of important water level gaps. Suitable to drain water from wells and in domestic fittings by small and medium sized tanks. Before installing the pump verify that all pipes (iron, plastic or rubber) are clean inside so to avoid any obstruction to the ejector nozzle. At the foot of the ejector must be installed a foot valve or a check valve. Installed the pump, fill completely both pipes and pump body with clean water. To preserve an efficient priming it is necessary a certain pression in the circuit, therefore it is recommended to install a membrane tank at the delivery of the pump.
Technical Specifications
| Model | APM 150 (P30) |
| Brand | Speroni |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Shipping Weight | 66.5lb |
| Port Size (in.) | 1″ & 1.25″ |
| Maximum Flow (GPH) | 552 GPH |
| Maximum Head (ft)
Maximum Suction (ft) |
200ft
164ft |
| HP | 1.5HP |
| Volts | 220V |
| Suction Port (in.) | 1.25″ , 1″ |
| Discharge Port (in.) | 1″ |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 19.7″ x 9.3″ x 10.8″ |
| Product Weight (lbs.) | 61.5lbs |
Dimensions
| Type | Dimensions (inches) | Box Dimensions | Weight | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Phase | A | B | C | D | E | F | H | H1 | DNA | DNM | P | L | H | lb |
| APM 150 | 4.1″ | 3″ | 16.3″ | 8.7″ | 6.8″ | 0.4″ | 9.5″ | 4.5″ | 1.25″ | 1″ | 9.3″ | 19.7″ | 10.8 | 61.5 |
Performance Table
| Type | Nominal Power |
Input Power |
Amperage | Capacity | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Phase | P2 | P1 | Single Phase | Ejector Type | Suction Depth | GPM | 0.8 | 1.6 | 2.6 | 4 | 5.3 | 6.6 | 7.9 | 9.2 | |
| 220V 60Hz | HP | KW | KW | 1 x 220V | lt/1′ | 3 | 6 | 10 | 15 | 20 | 25 | 30 | 35 | ||
| APM 150 | 1.5 | 1.1 | 1.5 | 7 | P30 | 35 | H(ft) | 200 | 187 | 167 | 141 | 120 | 47.6 | ||
| 40 | 183.7 | 170.6 | 150.9 | 124.7 | 103.3 | 31.1 | |||||||||
| 50 | 150.9 | 137.8 | 118.1 | 91.9 | 21.5 | 70.5 | |||||||||
