Description
Application:
Self priming water pumps with open impeller.
The check valve inside the suction outlet avoids the syphon effect when stopping and assures the automatic re-start each time. The pump self-primes even if partially filled and if the suction hose is completely empty. Suitable to drain clean or slightly dirty water and in flood irrigation systems.
Brand: SPERONI
MADE IN ITALY
OPERATING CONDITIONS:
- – Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
- – Temperature max. liquid: 194°F (for other uses)
- – Ambient temperature up to 104°F
- – Total suction lift up to 23 ft.
MATERIALS
- – Pump body: Cast Iron
- – Motor Support: Cast Iron
- – Impeller: Cast Iron
- – Shaft with rotor: Stainless Steel 304
- – Mechanical seal: Ceramic/Graphite/NBR
More Details:
| Model | H100-11 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Impeller Material | Cast Iron |
| Port Size (in.) | 4 |
| Flow (GPH) | 34,860 |
| Required Motor HP | 15 |
| Required Motor KW | 11 |
| Max. Total Head (ft.) | 112 |
| Max. Suction Lift (ft.) | 20 |
| Max. PSI | 49 |
| Suction Port (in.) | 4 |
| Discharge Port (in.) | 4 |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 31 x 11 x 23 |
| Product Weight (lbs.) | 227 |

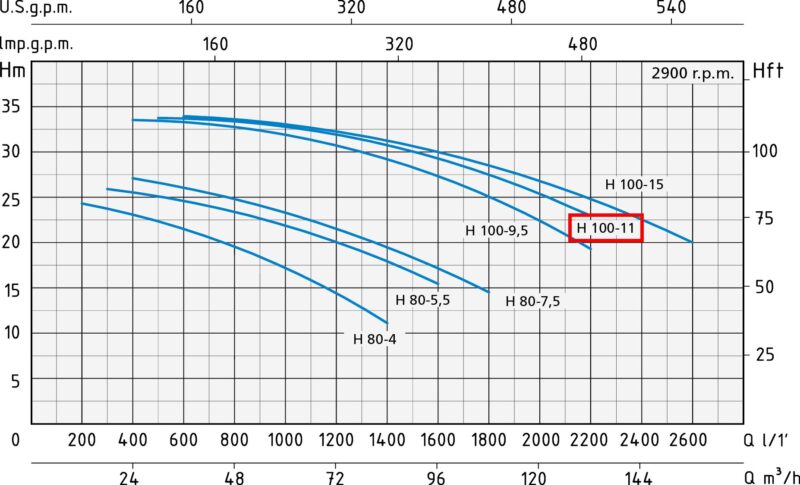

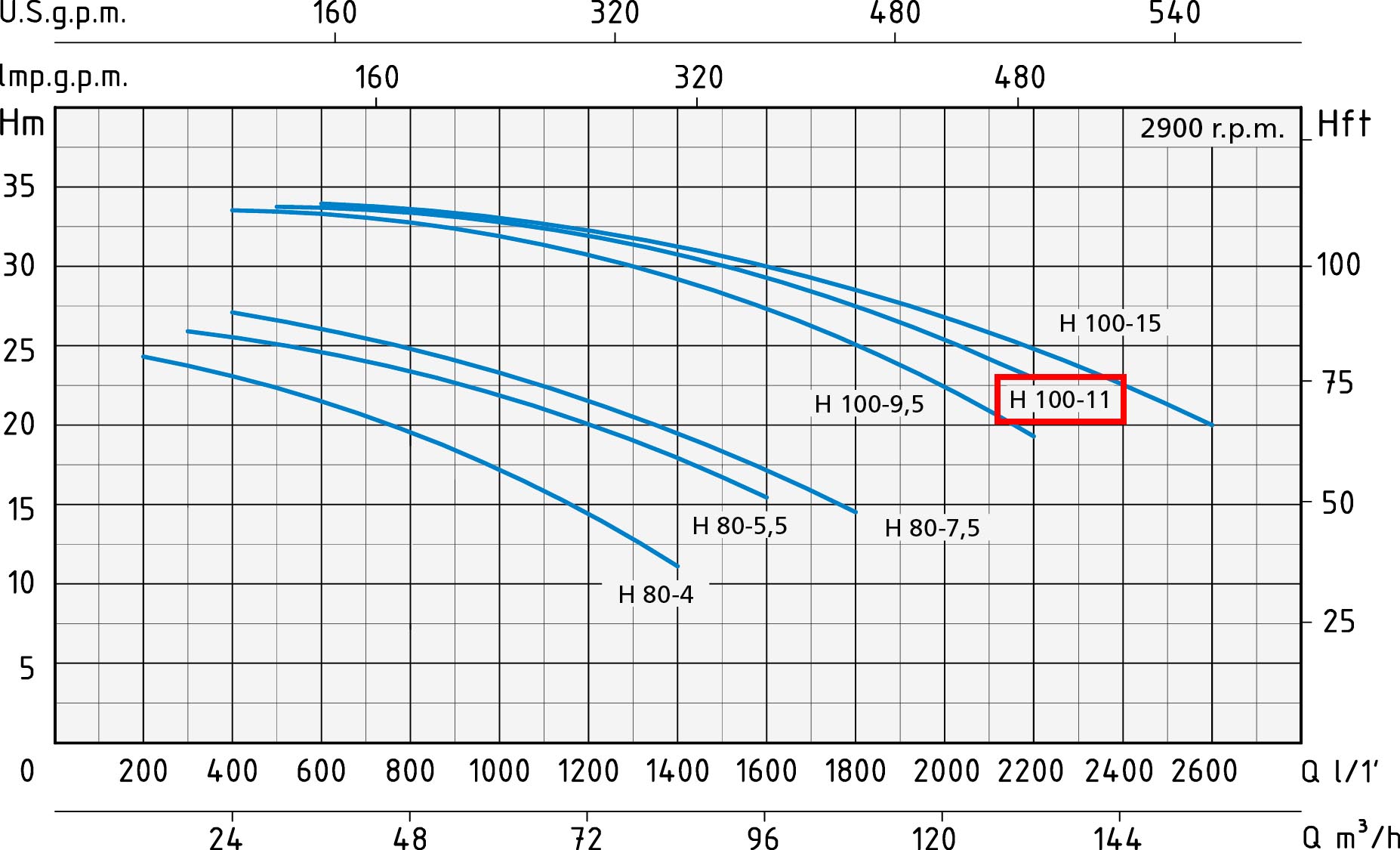

PUMP PERFORMANCE CURVE
Dimensions
