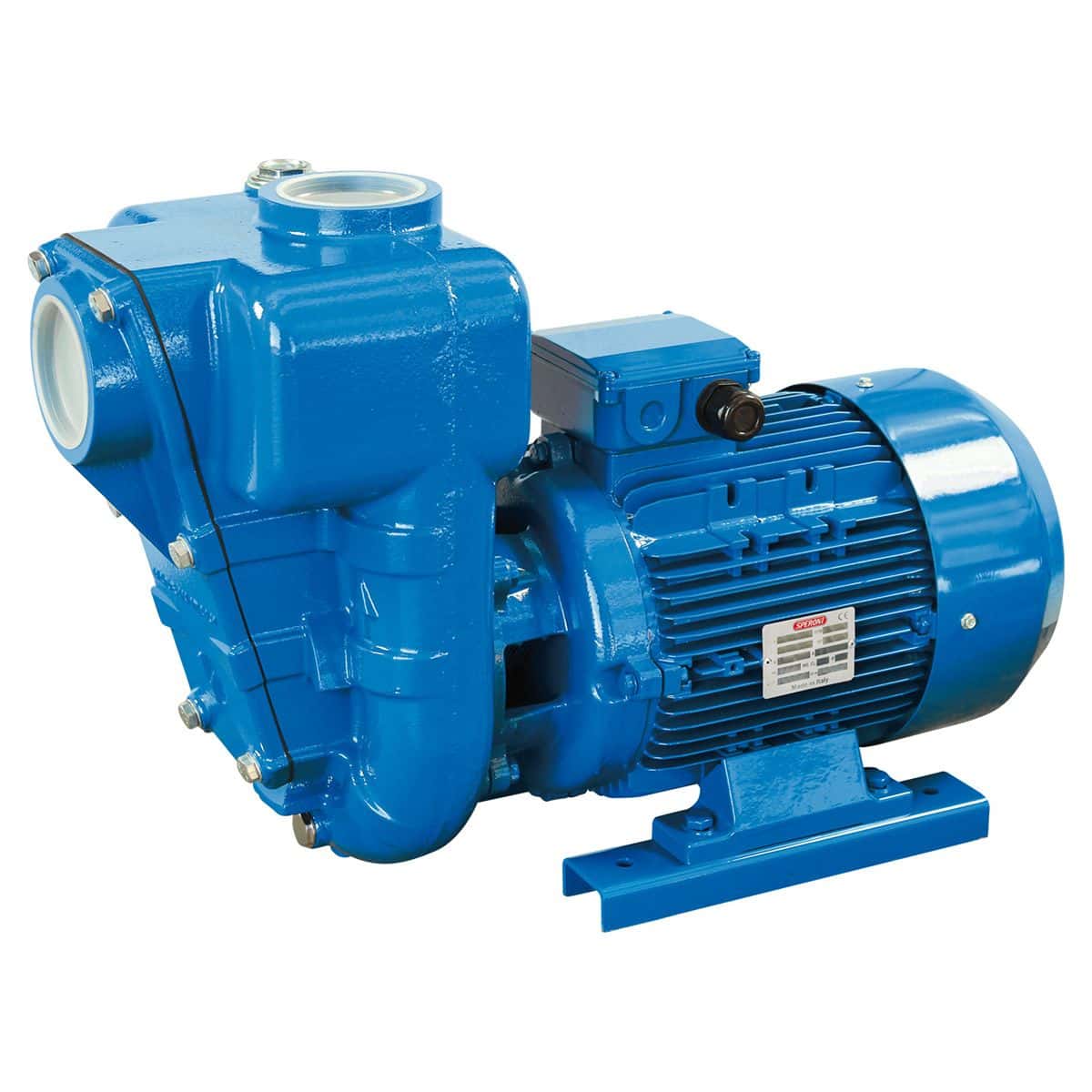

Self-priming Monoblock Trash Water Pump – 5.5HP – 22,190 GPH – 3in. Ports – 60Hz – 3P – HG 80-4

$1,543.18

Application:

Selfpriming monoblock water pumps with open impeller.

The check valve inside the suction outlet avoids the syphon effect when stopping and assures the automatic re-start each time. The pump selfprimes even if partially filled and if the suction hose is completely empty. Suitable to drain clean or slightly dirty water and in flood irrigation systems.

Brand: SPERONI

MADE IN ITALY

OPERATING CONDITIONS:

  • – Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
  • – Temperature max. liquid: 194°F (for other uses)
  • – Ambient temperature up to 104°F
  • – Total suction lift up to 23 ft.
  • – Continuous duty

MOTOR

  • – Single-phase 220V-60Hz- 3 Phase
  • – Two-pole induction motor (n = 3450 min-1)
  • – Insulation Class F
  • – Protection IP 55

MATERIALS

  • – Pump body: Cast Iron
  • – Motor Support: Cast Iron
  • – Impeller: Cast Iron
  • – Shaft with rotor: Stainless Steel 304
  • – Mechanical seal: Ceramic/Graphite/NBR

.

Description

Application:

Selfpriming monoblock water pumps with open impeller.

The check valve inside the suction outlet avoids the syphon effect when stopping and assures the automatic re-start each time. The pump selfprimes even if partially filled and if the suction hose is completely empty. Suitable to drain clean or slightly dirty water and in flood irrigation systems.

Brand: SPERONI

MADE IN ITALY

OPERATING CONDITIONS:

  • – Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
  • – Temperature max. liquid: 194°F (for other uses)
  • – Ambient temperature up to 104°F
  • – Total suction lift up to 23 ft.
  • – Continuous duty

MOTOR

  • – Single-phase 220V-60Hz – 3 Phase
  • – Two-pole induction motor (n = 3450 min-1)
  • – Insulation Class F
  • – Protection IP 55

MATERIALS

  • – Pump body: Cast Iron
  • – Motor Support: Cast Iron
  • – Impeller: Cast Iron
  • – Shaft with rotor: Stainless Steel 304
  • – Mechanical seal: Ceramic/Graphite/NBR

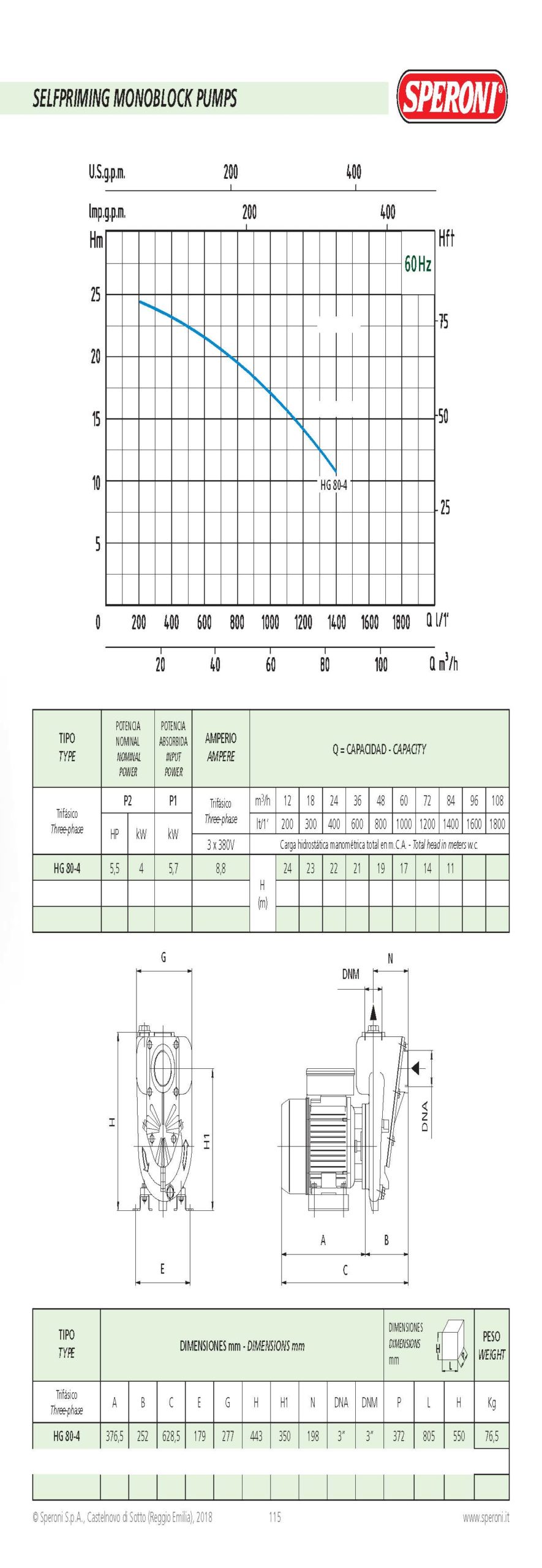

More Details:

Model HG80-4
Brand SPERONI
Manufacturer’s Warranty 1 year Limited Warranty
Impeller Material Cast Iron
Port Size (in.) 3
Flow (GPH) 22,190
HP 3
Volts

AMP

220V – 3 Phase

5.7

Max. Total Head (ft.) 78.7
Max. Suction Lift (ft.) 23
Max. PSI 34.8
Suction Port (in.) 3
Discharge Port (in.) 3
Self-Priming Yes
Dimensions L x W x H (in.) 25 x 7 x 17.5
Product Weight (lbs.) 168.5

SPERONI HG 80 4 1

Additional information

Weight 168.5 lbs
Dimensions 25 × 7 × 17.5 in
