Application:

Selfpriming water pumps with open impeller.

The check valve inside the suction outlet avoids the syphon effect when stopping and assures the automatic re-start each time. The pump selfprimes even if partially filled and if the suction hose is completely empty. Suitable to drain clean or slightly dirty water and in flood irrigation systems.

Brand: SPERONI

MADE IN ITALY

Description

Application:

Self priming water pumps with open impeller.

The check valve inside the suction outlet avoids the syphon effect when stopping and assures the automatic re-start each time. The pump self-primes even if partially filled and if the suction hose is completely empty. Suitable to drain clean or slightly dirty water and in flood irrigation systems.

Brand: SPERONI

MADE IN ITALY

OPERATING CONDITIONS:

– Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
– Temperature max. liquid: 194°F (for other uses)
– Ambient temperature up to 104°F
– Total suction lift up to 23 ft.

MATERIALS

– Pump body: Cast Iron
– Motor Support: Cast Iron
– Impeller: Cast Iron
– Shaft with rotor: Stainless Steel 304
– Mechanical seal: Ceramic/Graphite/NBR

More Details:

Model	H100-15
Brand	SPERONI
Manufacturer’s Warranty	1 year Limited Warranty
Impeller Material	Cast Iron
Port Size (in.)	4
Flow (GPH)	41,160
Required Motor HP	20
Required Motor KW	15
Max. Total Head (ft.)	112

Max. Suction Lift (ft.)	20
Max. PSI	49
Suction Port (in.)	4
Discharge Port (in.)	4
Self-Priming	Yes
Dimensions L x W x H (in.)	31 x 11 x 23
Product Weight (lbs.)	227

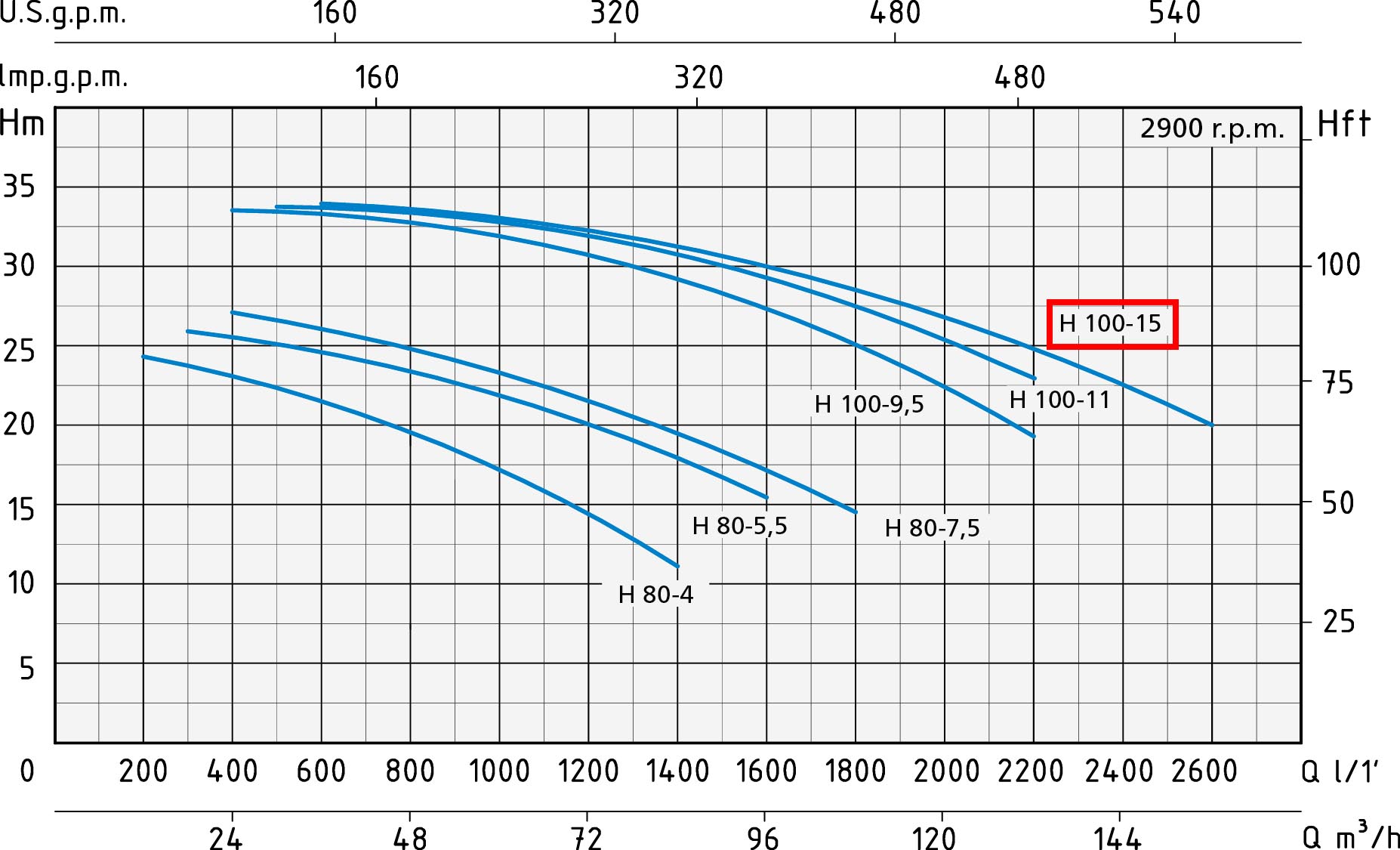

PUMP PERFORMANCE CURVE

Dimensions

Additional information

Weight	227 lbs
Dimensions	31 × 11 × 23 in
Brands	Speroni
category ac pumps	Trash Pumps
AC voltage	208V-230V, 230 volts, 440V-480V, 460 volts
Horse power Ac	15 hp
Phase	Single Phase, Three Phase
Pump material	Cast iron
Self Priming	Self Priming
Pump Inlet and Outlet_Multistage	4"
