SKU: 2414127

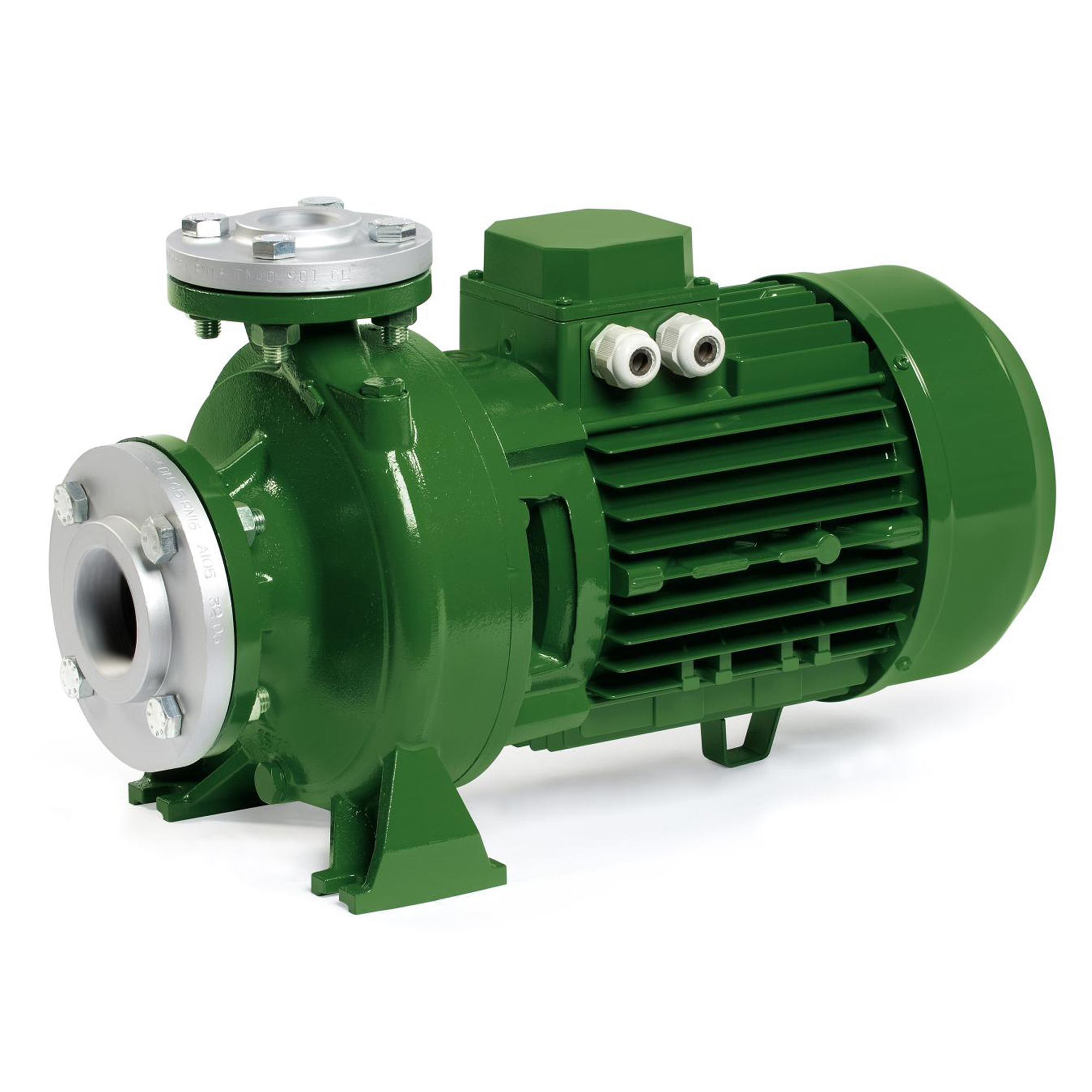

SeaLand MonoBlock Centrifugal water pump, 20 HP, 230/460V, 3PHASE, 60Hz, Model CN 40 250 A

SeaLand MonoBlock Centrifugal water pump, 20 HP, 230/460V, 3PHASE, 60Hz, Model CN 40 250 A
Free Shipping
SeaLand MonoBlock Centrifugal water pump, 20 HP, 230/460V, 3PHASE, 60Hz, Model CN 40 250 A - Image 2

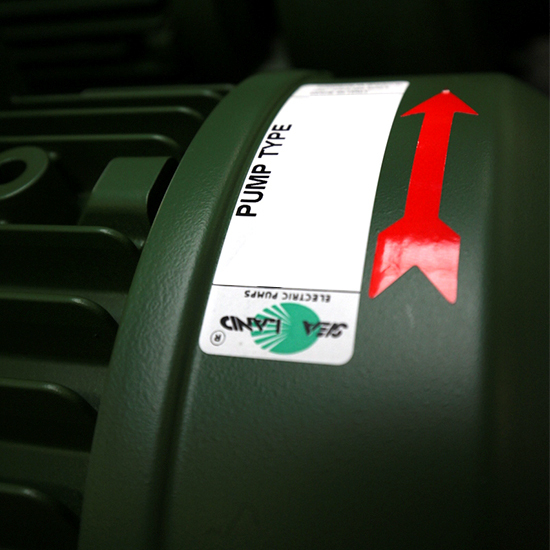

SeaLand MonoBlock Centrifugal water pump, 20 HP, 230/460V, 3PHASE, 60Hz, Model CN 40 250 A - Image 3
SKU: 2414127 Categories: , , , Tags: , , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 2414127 Categories: , , , Tags: , , , Brand:
SKU: 2414127

SeaLand MonoBlock Centrifugal water pump, 20 HP, 230/460V, 3PHASE, 60Hz, Model CN 40 250 A

NORMALIZED CLOSE COUPLED CENTRIFUGAL ELECTRIC PUMPS

The close-coupled electric pumps of the series “CN” have been designed to pump clean liquids, without abrasives and suspended solids, non-explosive or aggressive for the pump’s materials.

  • Liquid temperature not higher than 95°F for domestic use (CEI EN 60335-2-41) or 194°F for other use, while the ambient temperature must not be higher than 104°F
SKU 2414127 Categories , , , Tags , , , Brand:

UNIT PRICE

$5,002.12

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days
✓
Warranty
Manufacturer coverage
✓
Hassle-Free Returns
See return policy
✓
Real Support
(786) 613-5872 · [email protected]

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Download Technical Data

TECHNICAL FEATURES

  • Pump body: cast iron G20 with anti-corrosive coating
  • Motor bracket: cast iron G20 with anti-corrosive coating
  • in/outlet: ANSI 125

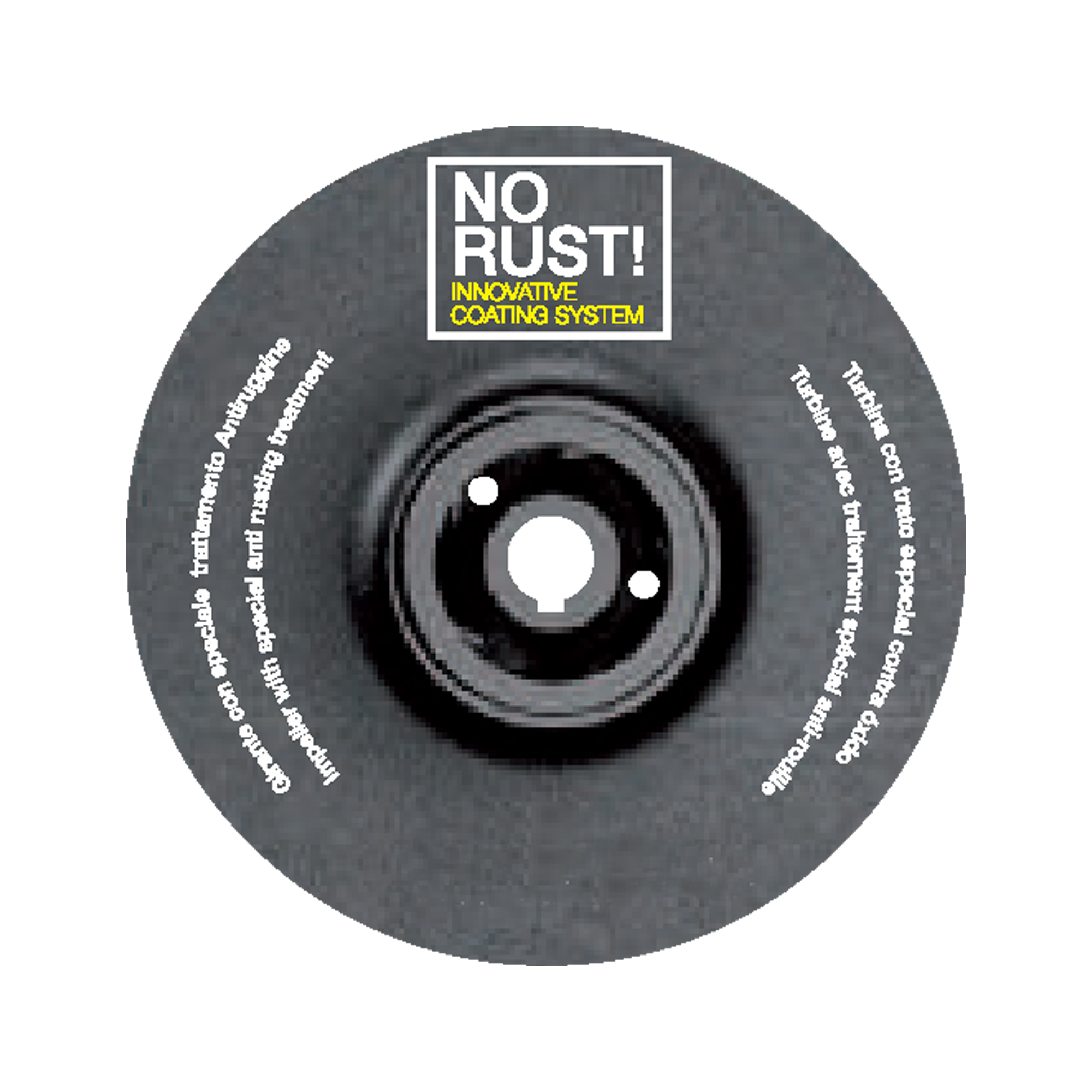

  • Impeller: cast iron G20 with cataphoretic treatment
  • Welding counter flanges: galvanized steel complete with EPDM gaskets
  • Pump shaft: stainless steel AISI 304
  • Mechanical seal: carbon-ceramics
  • Welding Flanges Included

MOTOR

The control motors are asynchronous, squirrel cage-type, closed, with external ventilation

  • The motor protection for three-phase models must be installed by the customer. Equipment compliant with current standards should be used
  • Class of insulation: F
  • Service: S1
  • Degree of protection: Three Phase 55
  • Terminal board protection IP 54

Technical Data

Model CN 40 250 A
Brand SEA LAND
Manufacturer’s Warranty 1 years Limited Warranty
Pump Material Cast iron
Max. Flow (GPM) 211
HP 20
Volts 230/460 V
Amps 54.6
Max. Total Head (ft.) 270
Max. Suction Lift (ft.) 17
Suction Port (in.) 2.5″
Discharge Port (in.) 1.5″
Self-Priming NO



DIMENSIONS

TYPE DIMENSIONS[inch] PACKING[inch] WEIGHT[lbs]
A B1 S L B H n1 n2 m1 m2 H1 H2 K asp K man B asp B man Ai Pi Li
CN 40 250 A 4 2.5 0.5 27 13 16 12.6 10 5 4 7 9 6 4.3 0.7 0.7 19 35 17 328
