Description
| Model | Pump | SP 230-03 |
| Motor | ||
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 7.5 |
| HP | 10 | |
| Service Factor | 1.15 | |
| Material | Pump | Stainless Steel 316 |
| Motor | Stainless Steel 316 | |
| Voltage – Phase | 460V – Three Phase | |
| Wire | – | |
| In | A | 16.2 |
| Imax | A | 18.5 |
| Istart | A | 95.0 |
| PF (%) | Allowable Load | |
| Overload Factor | ||
| Efficiency (%) | Allowable Load | 77 |
| Overload Factor | 78 | |
| R.P.M | 3450 | |
| Thrust | N | 6500 |
| Capacitor | UF | – |
| Cable | AWG | 14 |
| Length (ft.) | 8.2 | |
| Production Country Motor | Italy | |

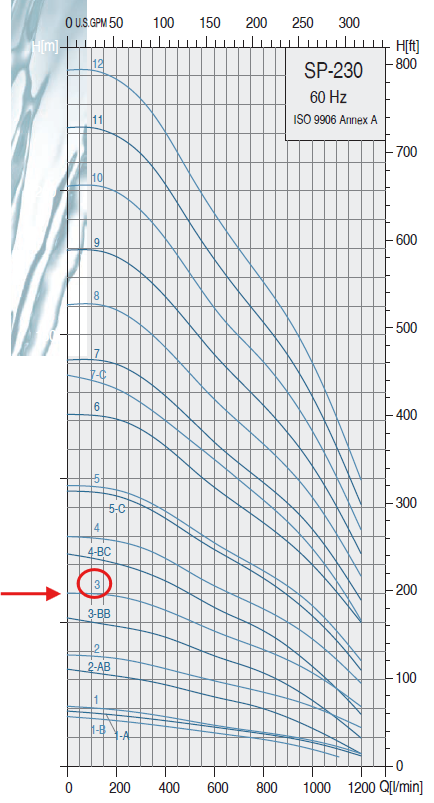

Performance Curves
Dimensions and Weights
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | ||||
| A | B | C | Pump | Motor | Pump + Motor | ||
| NPT 4″ | 4″ | 23.3″ | 51.7″ | 5.7″ | 25.3 | 64 | 89.3 |
Part List and Materials
| No. | Part Name | Materials |
| 01 | Discharge | AISI 316 |
| 04 | Valve Cone | AISI 316 |
| 11 | Top Diffuser | AISI 316 |
| 12 | Diffuser | AISI 316 |
| 18 | Impeller | AISI 316 |
| 19 | Ring of Impeller | AISI 316 |
| 21 | Split Cone | AISI 316 |
| 22 | Split Cone Nut | AISI 316 |
| 26 | Spacing Washer for Stop Ring | Carbon + Graphite + PTFE |
| 23 | Neck Ring Retainer | AISI 316 |
| 34 | Strainer | AISI 316 |
| 36 | Suction Interconnector | AISI 316 |
| 37 | Pump Shaft | AISI 316 |
| 44 | Coupling | AISI 316 |
| 47 | Strap | AISI 316 |
| 52 | Cable Guard | AISI 316 |
| 86 | Valve Seat | AISI 316 + HNBR |
| 87 | Neck Ring Nut | AISI 316 + HNBR |
| 88 | Nut | AISI 316 |
| 89 | Bearing | HNBR |
| 90 | Screw | AISI 316 |
| 91 | Key | AISI 316 |
| 92 | O-ring | HNBR |
