Description

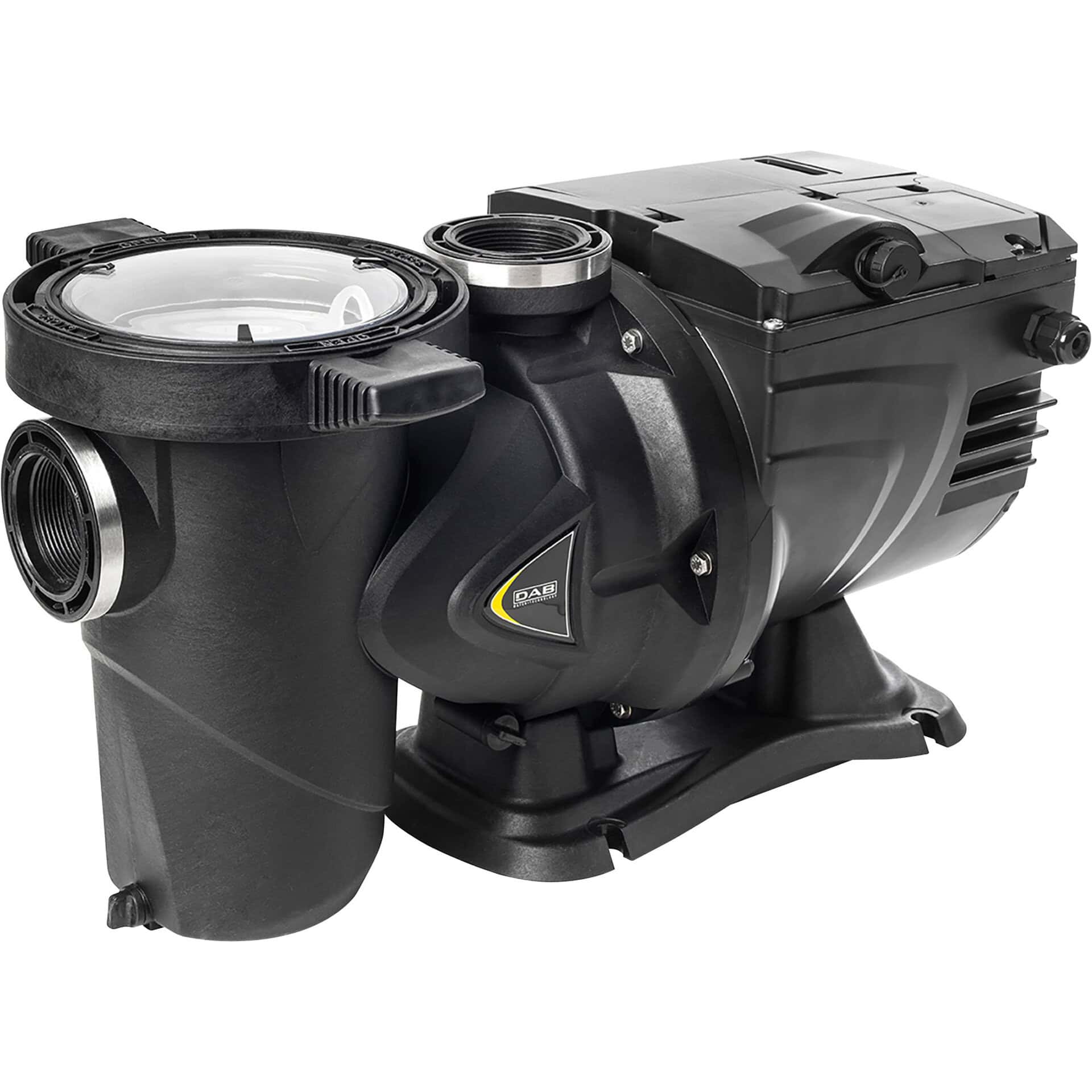

E.SWIM 150 is the new electronic swimming pool pump with high energy efficiency made by DAB.
Designed for water circulation and filtration in residential and civil swimming pools, but also suitable for specific applications requiring the handling of aggressive liquids like fish farming, agriculture and industry.
AN INTELLIGENT INVESTMENT
The new e.swim is the best solution to dramatically reduce energy consumption.
A traditional pool pump indeed, consumes more current than all other utilities together.
E.SWIM should be on top of your list to really make your system more efficient and optimize costs electricity.
TECHNICAL DATA
- Liquid quality requirements: clean water, or slightly contaminated water with suspended solid debris, or long fibres; highly aggressive water with a high percentage of chlorine/bromine and PHMB (Polyhexamethylene biguanide), or chlorine electrolysis treated water.
- PH Range: 6.5 – 8.4
- Liquid temperature range: from 32°F to +102°F for hot tub use or from 32°F to +104°F for other uses
- Maximum ambient temperature: +122°F
- Maximum pressure: 36 psi
- Nominal pressure: 26 – 40 psi (optimum 33 psi)
- Motor protection rating: IPX5
- Insulation class: F
- Installation: Horizontal position
E.swim Commercial Leaflet – Brochure
E.swim Quick Guide- Instructions
Advantages
- NOISELESS New water cooled motor (no motor fan) allows an extremely quiet operation (noise level 50 dB(A)
- HIGH EFFICENCY Thanks to the new motor, new hydraulics, new electronic motor control
- DESIGN Modern and compact
- RELIABLE Components designed for long life
Benefits
- 4 different keys for speed/flow setting: for each key there will be saved a specific speed/flow (1, 2, 3, 4)for each key the speed/flow is adjustable
- ‘Auto’ button enable the automatic operation according to the timer schedule.
- ‘Quick Clean’ button enable high speed operation
- Central keys for menu navigation and settings
- sequential navigation system
- LED‘s for indication of:
- Warning/Alarm
- Power on
- Pump Running
- LCD Display dimension: 2.75“ x 1.58“
| Brand | DAB-USA |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Ports(in.) | 2 |
| Port Size (in.) | 1 |
| Flow (GPH) | 7,920 |
| Volts | 230 |
| Amps | 5.6 A |
| HP | 1.5 |
| Max. Total Head (ft.) | 50 |
| Product Weight | 32 lbs |
