Description
Revolutionizing residential water pressure management, the DAB E.SYBOXmini combines whisper-quiet operation, energy efficiency, and plug-and-play installation in a compact design. It’s the ultimate solution for consistent water pressure, saving space and energy while delivering unparalleled performance.

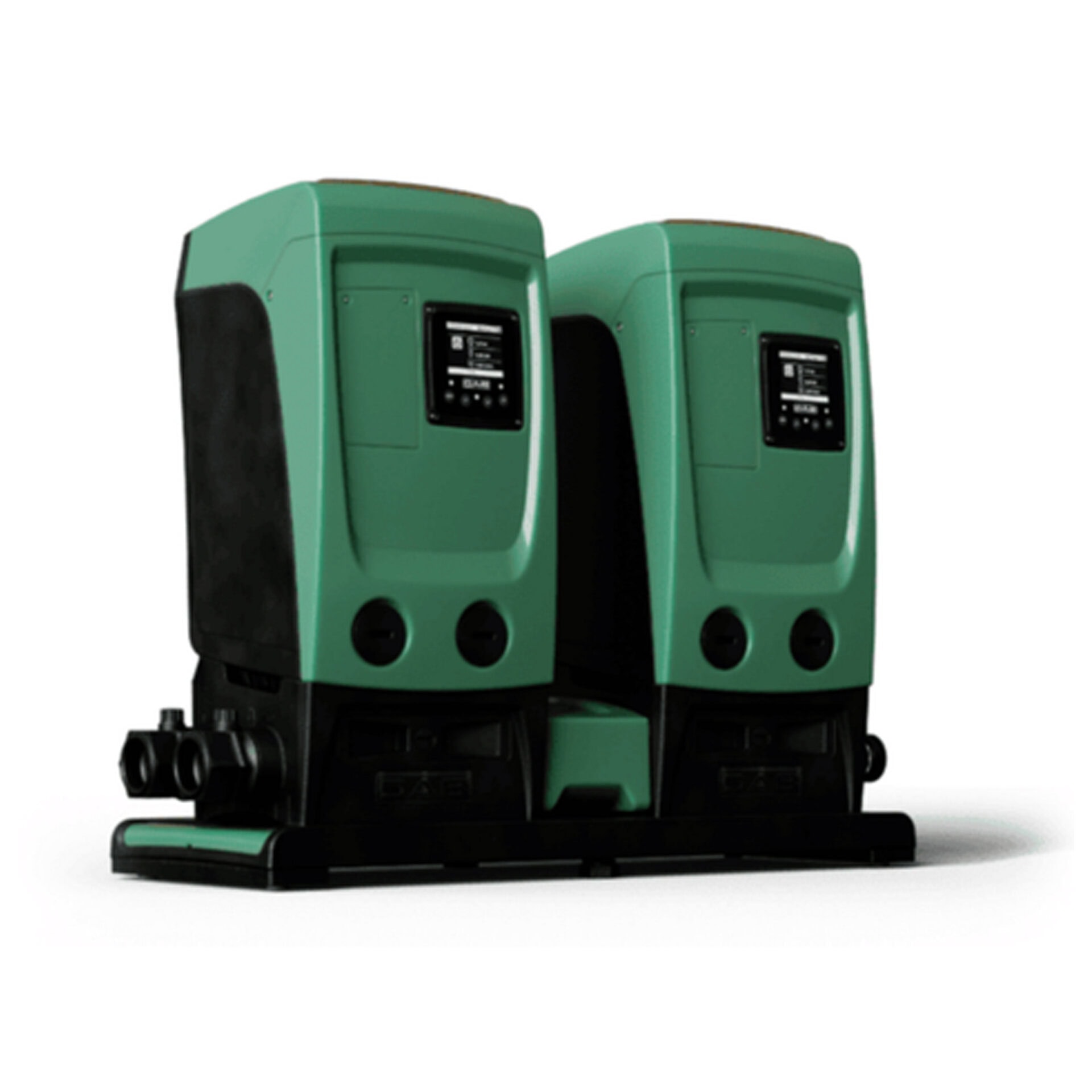

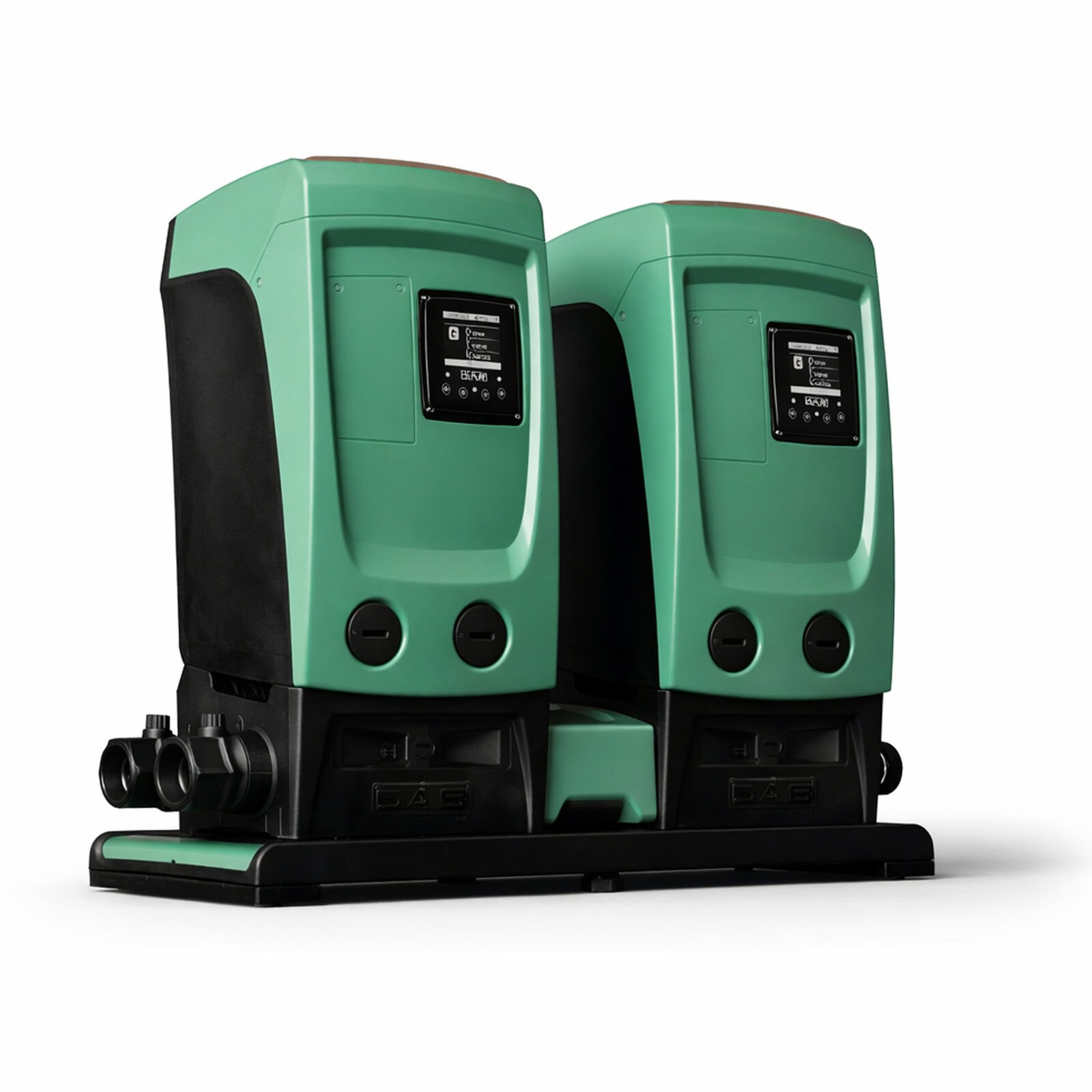

The Twin DAB E.Syboxmini 3 Electronic Water booster pump Pressure System provides the comfort of constant water pressure and plus saves energy, also Features a water-cooled motor, sound-dampening ABS housing and anti-vibration feet for very quiet operation — just 45dB in normal use. Water Pressure System
Constant Water Pressure in Your Home has Never been so Simple and Quiet!
Benefits
- Consistent Water Pressure: Ensures steady water flow for showers, faucets, and appliances, even in multi-story homes.
- Whisper-Quiet Operation: Operates silently, making it ideal for indoor installation without disturbing your home environment.
- Energy Savings: Intelligent inverter technology adjusts power usage based on demand, reducing electricity consumption and lowering utility bills.
- Compact Design: Small and space-saving, it fits into tight areas like under sinks, in utility rooms, or small cabinets.
- Easy Installation: Plug-and-play setup with a preassembled system, saving time and money on professional installation.
- Durability and Reliability: Built with high-quality materials, ensuring long-lasting performance even in demanding conditions. Smart Features: LCD interface for easy monitoring and control of settings.
- Automatic self-priming for hassle-free operation. Versatility: Suitable for various applications, from residential water boosting to irrigation systems.
- Eco-Friendly: Low energy consumption and efficient water management reduce your environmental footprint. Safety and Convenience: Built-in protections against overheating, dry running, and overpressure for worry-free operation.
Features
- Self-priming, multi-stage pump with electronic inverter management
- Pressure and flow sensors
- High-resolution LCD display
- Integrated 0.5-gallon expansion tank
- Installs vertically or horizontally
- Constant pressure can be set from 15 to 75 PSI
- Durable ABS enclosure
- Suitable for use with drinking water and gardening applications
- Made in Italy
Self-priming, multi-stage booster pump with electronic inverter management
Water Pressure booster system
More Details:

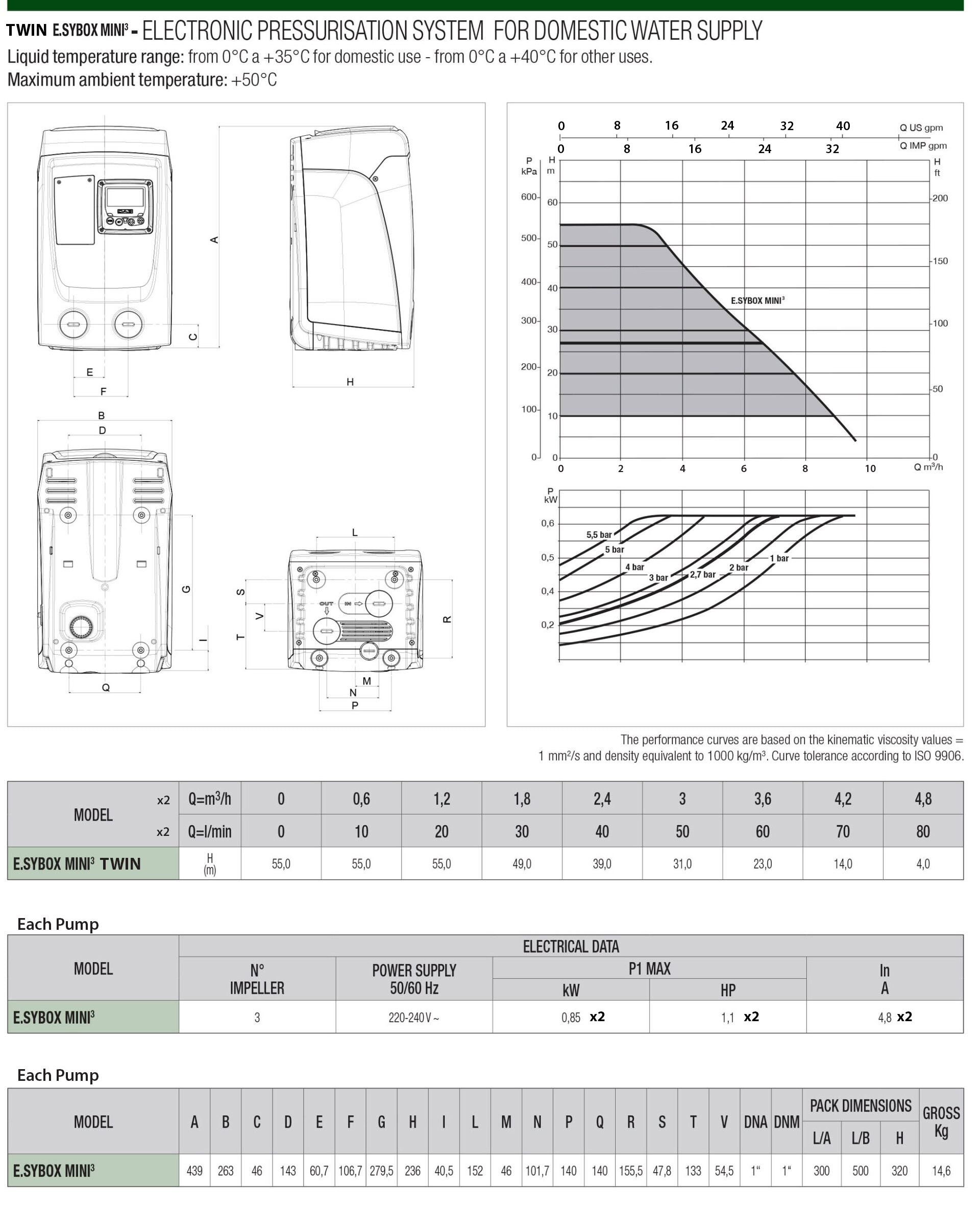

| Brand | DAB-USA |
| Manufacturer’s Warranty | 2 years Limited Warranty |
| Ship Weight ( | 80.0 lbs |
| Port Size (in.) | 1 |
| Flow (GPH) | 2,640 |
| Volts | 115 / 230 V – 50/60 Hz |
| Amps (x2) | 9.6 / 4.8 |
| HP (x2) | 1.07 |
| Max. Total Head (ft.) | 164 |
| Max. Suction Lift (ft.) | 26 |
| Max. PSI | 75 |
| Suction Port (in.) | 1 |
| Self-Priming | Yes |
| Diaphragm | No |
| Solid Handling (in.) | No |
| Battery Connections | No |
| Dimensions L x W x H (in.) (each pump) | 19 x 11 x 11 |
| Product Weight (lbs.) (each pump) | 30.8 |
Twin E.SYBOX mini 3 booster pump uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimization of energy consumption.
The new 3-rotor model ensures further noise reduction and energy consumption.
Managing the water pressure in your home has never been so simple and quiet. E.SYBOX mini 3 is the DAB compact automatic booster system for the water supply of a single dwelling. E.SYBOX mini 3 guarantees the comfort of constant pressure (Pressure Set Point adjustable from 15 up to 79 psi) inside the system. Suitable for use with drinking water, in domestic systems, and in gardening applications. E.SYBOXmini³ does not require any additional components for its installation.
Approvals:
CSA certification to CSA Standard C22.2 No 108- 14 Liquid Pumps
UL Standard 778- 5th Edition- Motor operated water pumps
NSF/ANSI 61 – 2014a – Drinking Water System Components – Health Effects
NSF/ANSI 372 – 2011 – Drinking Water System Components – Lead Content
Features
It consists of a high frequency self-priming double impeller pump, management inverter electronics, pressure and flow sensors, adjustable high resolution LCD display with 1/4 gallon built-in expansion vessel, and cartridge check valve.
The double suction and delivery ports allow both vertical and horizontal installation.
Thanks to its compact sizes, installation is also possible in difficult places without high air exchange.
The E.SYWALL wall bracket allows wall installation, saving even more room.
E.SYBOX MINI is a self-priming pump with a capability of 26 ft in less than 5 minutes.
The water-cooled motor, the anti-vibration feet and the electronics, make this product totally comfortable and compact.
Fitted with all the safety protections, as well as the protections for the safeguard of the pump. Particularly, the dry run and the antifreeze protections.
All the parameters and the operating status are displayed & set on the high-resolution LCD display.
Advantages
Thanks to the technological knowledge gained during the past 40 years, DAB PUMPS is proud to introduce the E.SYBOX mini 3, the most compact and advanced booster pump system in the world.
Revolutionary and complete, E.SYBOX mini 3 booster pump provides a new installation experience, whisper quiet running and maximum performance.
E.SYBOX mini 3 is the ideal solution to solve any water pressurization issues in residential environments.
E.SYBOX mini 3 takes advantage of the most advanced DAB technologies, to ensure a consistent pressure based on actual demands, and therefore an optimization of energy consumption.
Thanks to its versatility, E.SYBOX mini 3 can be installed anywhere, even under the kitchen sink.
Benefits
- Consistent Water Pressure: Ensures steady water flow for showers, faucets, and appliances, even in multi-story homes.
- Whisper-Quiet Operation: Operates silently, making it ideal for indoor installation without disturbing your home environment.
- Energy Savings: Intelligent inverter technology adjusts power usage based on demand, reducing electricity consumption and lowering utility bills.
- Compact Design: Small and space-saving, it fits into tight areas like under sinks, in utility rooms, or small cabinets.
- Easy Installation: Plug-and-play setup with a preassembled system, saving time and money on professional installation.
- Durability and Reliability: Built with high-quality materials, ensuring long-lasting performance even in demanding conditions. Smart Features: LCD interface for easy monitoring and control of settings.
- Automatic self-priming for hassle-free operation. Versatility: Suitable for various applications, from residential water boosting to irrigation systems.
- Eco-Friendly: Low energy consumption and efficient water management reduce your environmental footprint. Safety and Convenience: Built-in protections against overheating, dry running, and overpressure for worry-free operation.
