DAB E.SYBOXMINI 3 Water Pressure booster pump, 1HP ,110/220V

5/5

shipping FREE SHIPPING


Get it in 3-5 Business Days
  • Signature Required

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)

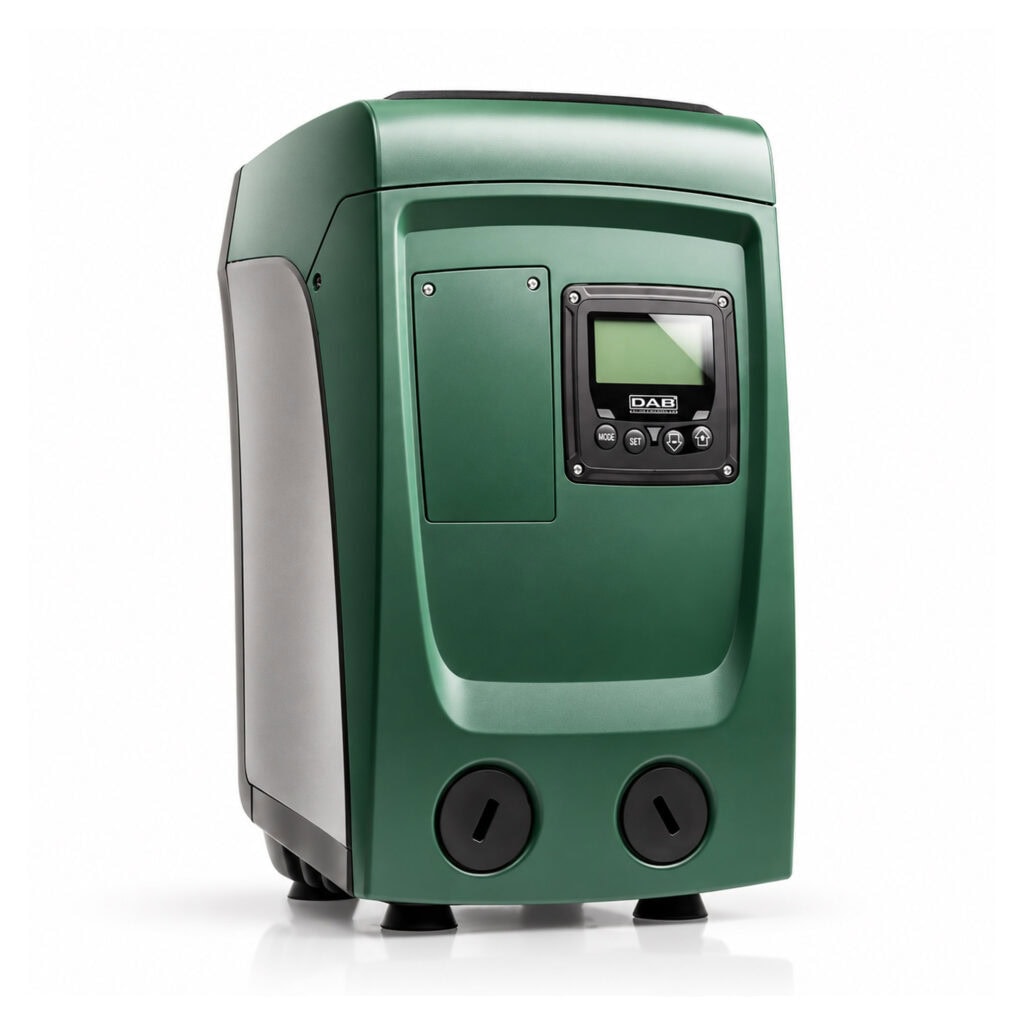

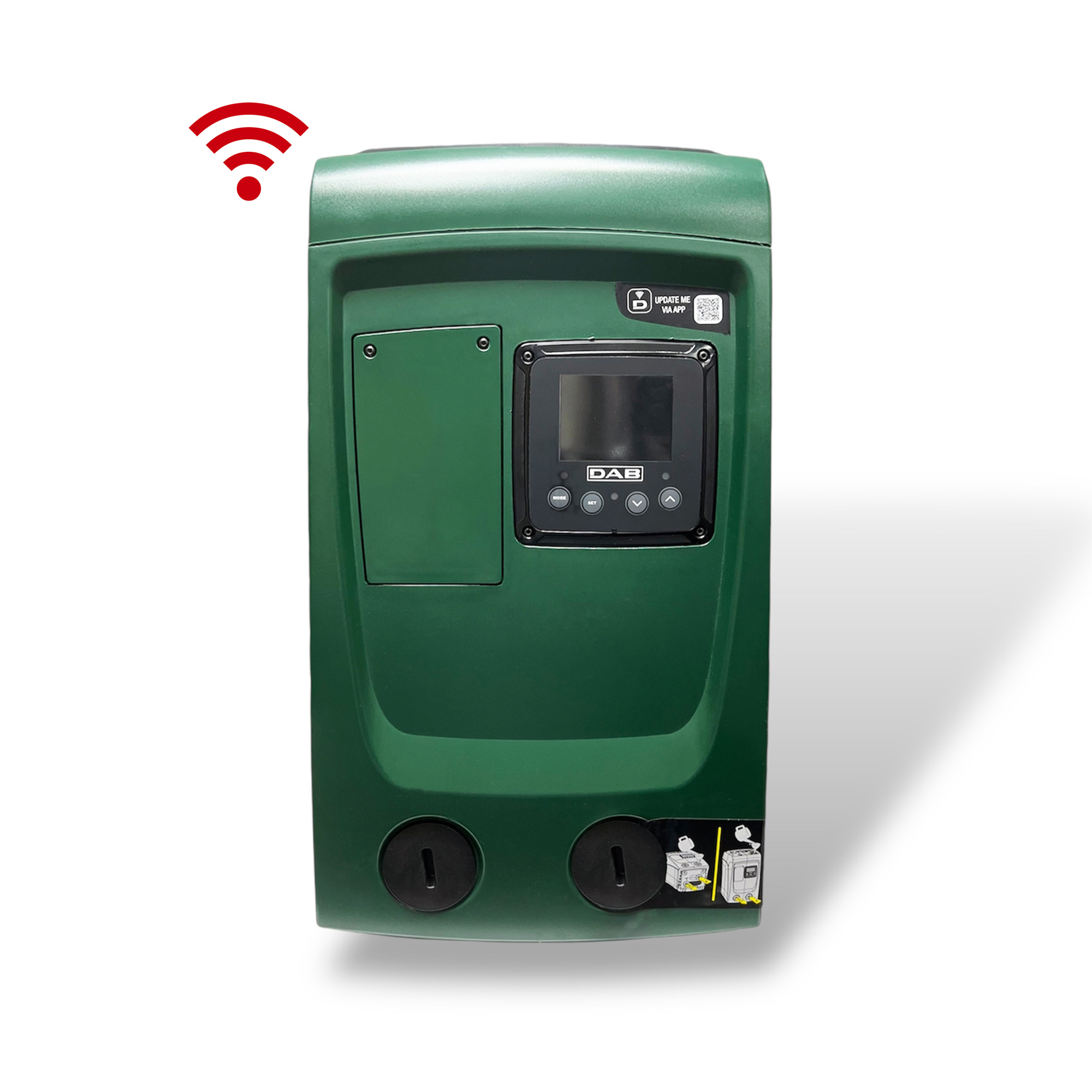

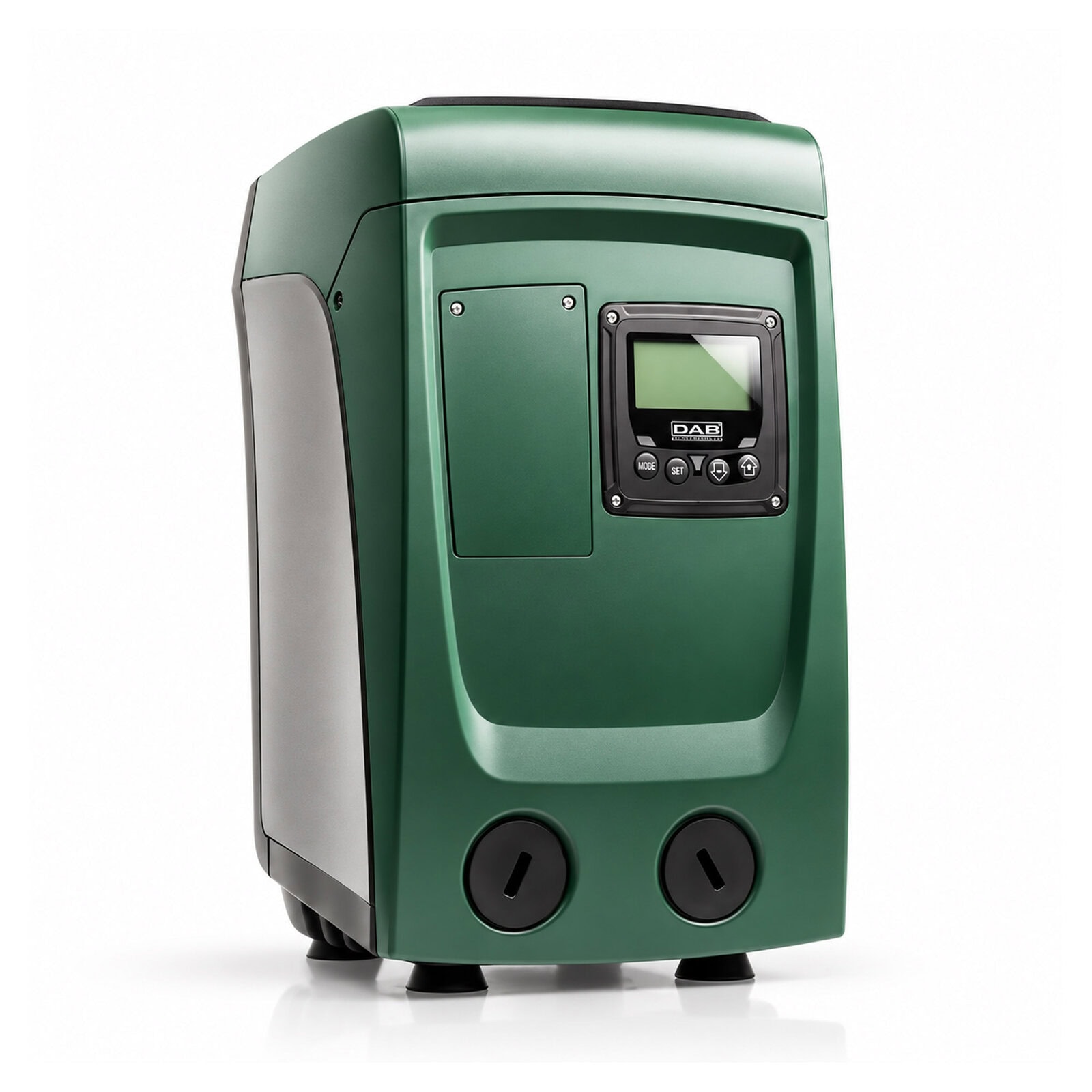

DAB E.SYBOXMINI 3 Water Pressure booster pump, 1HP ,110/220V

Now Only

$1,295.00

3 - 5 Business days Free Shipping

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away! And tech support on which pump to choose. Good company from my experience thus far.
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased...
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent....
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps to help with our water problem. After 5 months it’s still not potable. I contacted ....
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are horrible or non existing! I would give this pump a solid 5 however because the quality, packaging, price was awesome....
Previous
Next

shipping FREE SHIPPING


Get it in 3-5 Business Days
  • Signature Required

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Cart

Advertisement

The DAB E.Syboxmini 3 Electronic Water booster pump Pressure System provides the comfort of constant water pressure and plus saves energy, also Features a water-cooled motor, sound-dampening ABS housing and anti-vibration feet for very quiet operation — just 45dB in normal use. Water Pressure System

Constant Water Pressure in Your Home has Never been so Simple and Quiet!

Features

  • Self-priming, multi-stage pump with electronic inverter management
  • Pressure and flow sensors
  • High-resolution LCD display
  • Integrated 0.5-gallon expansion tank
  • Installs vertically or horizontally
  • Constant pressure can be set from 15 to 75 PSI
  • Durable ABS enclosure
  • Suitable for use with drinking water and gardening applications
  •  Made in Italy

>E.syboxmini Brochure

Description

Self-priming, multi-stage booster pump with electronic inverter management

Water Pressure booster system

More Details:

Brand DAB-USA
Manufacturer’s Warranty 2 years Limited Warranty
Ship Weight 30.8 lbs
Port Size (in.) 1
Flow (GPH) 1,320
Volts 115 / 230 V – 50/60 Hz
Amps 9.6 / 4.8
HP 1.07
Max. Total Head (ft.) 164
Max. Suction Lift (ft.) 26
Max. PSI 75
Suction Port (in.) 1
Self-Priming Yes
Diaphragm No
Solid Handling (in.) No
Battery Connections No
Dimensions L x W x H (in.) 19 x 11 x 11
Product Weight (lbs.) 30.8

E.SYBOX mini 3 booster pump uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimization of energy consumption.
The new 3-rotor model ensures further noise reduction and energy consumption.
Managing the water pressure in your home has never been so simple and quiet. E.SYBOX mini 3 is the DAB compact automatic booster system for the water supply of a single dwelling. E.SYBOX mini 3 guarantees the comfort of constant pressure (Pressure Set Point adjustable from 15 up to 79 psi) inside the system. Suitable for use with drinking water, in domestic systems, and in gardening applications.  E.SYBOXmini³ does not require any additional components for its installation.

Approvals:

CSA certification to CSA Standard C22.2 No 108- 14 Liquid Pumps

UL Standard 778- 5th Edition- Motor operated water pumps

NSF/ANSI 61 – 2014a – Drinking Water System Components – Health Effects

NSF/ANSI 372 – 2011 – Drinking Water System Components – Lead Content



Features

It consists of a high frequency self-priming double impeller pump, management inverter electronics, pressure and flow sensors, adjustable high resolution LCD display with 1/4 gallon built-in expansion vessel, and cartridge check valve.

The double suction and delivery ports allow both vertical and horizontal installation.

Thanks to its compact sizes, installation is also possible in difficult places without high air exchange.

The E.SYWALL wall bracket allows wall installation, saving even more room.

E.SYBOX MINI is a self-priming pump with a capability of 26 ft in less than 5 minutes.

The water-cooled motor, the anti-vibration feet and the electronics, make this product totally comfortable and compact.

Fitted with all the safety protections, as well as the protections for the safeguard of the pump. Particularly, the dry run and the antifreeze protections.

All the parameters and the operating status are displayed & set on the high-resolution LCD display.

Advantages

Thanks to the technological knowledge gained during the past 40 years, DAB PUMPS is proud to introduce the E.SYBOX mini 3, the most compact and advanced booster pump system in the world.

Revolutionary and complete, E.SYBOX mini 3 booster pump provides a new installation experience, whisper quiet running and maximum performance.

E.SYBOX mini 3 is the ideal solution to solve any water pressurization issues in residential environments.

E.SYBOX mini 3 takes advantage of the most advanced DAB technologies, to ensure a consistent pressure based on actual demands, and therefore an optimization of energy consumption.

Thanks to its versatility, E.SYBOX mini 3 can be installed anywhere, even under the kitchen sink.

Benefits

GUARANTEES CONSISTENT WATERPRESSURE

ULTRA LOW NOISE

NO VIBRATIONS

EASY TO ADJUST

EQUIPPED WITH A LARGE DISPLAY

EXTREMELY COMPACT SIZES

QUICK TO INSTALL

INSTALLATION OPTIONS:

HORIZONTAL, VERTICAL

REDUCED ENERGY CONSUMPTION EASY MAINTENANCE

Manufacturer’s Website

DAB E.SYBOXMINI 3 Electronic Water Booster System. Self-priming, multi-stage pump with electronic inverter management Water Pressure system water
