Description

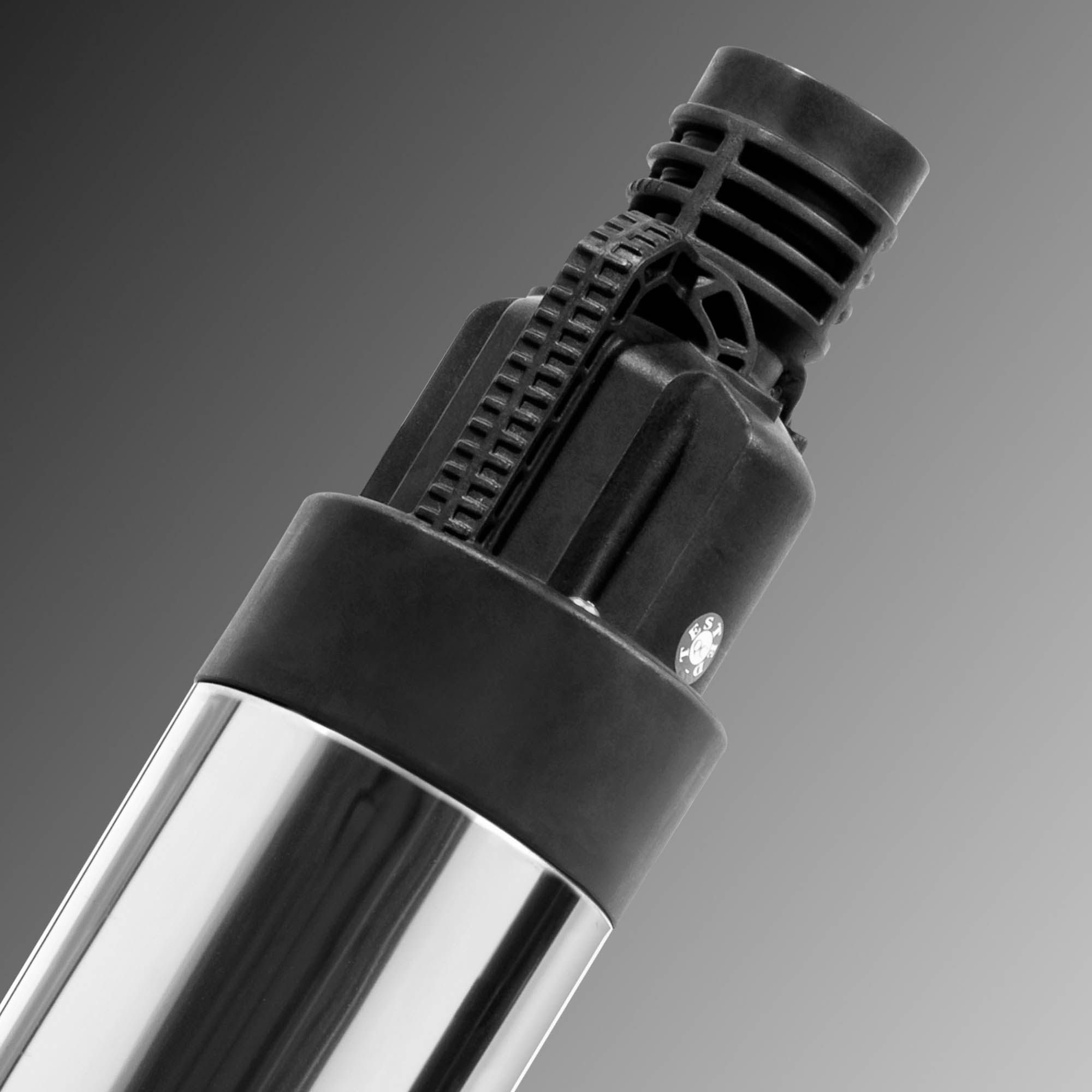

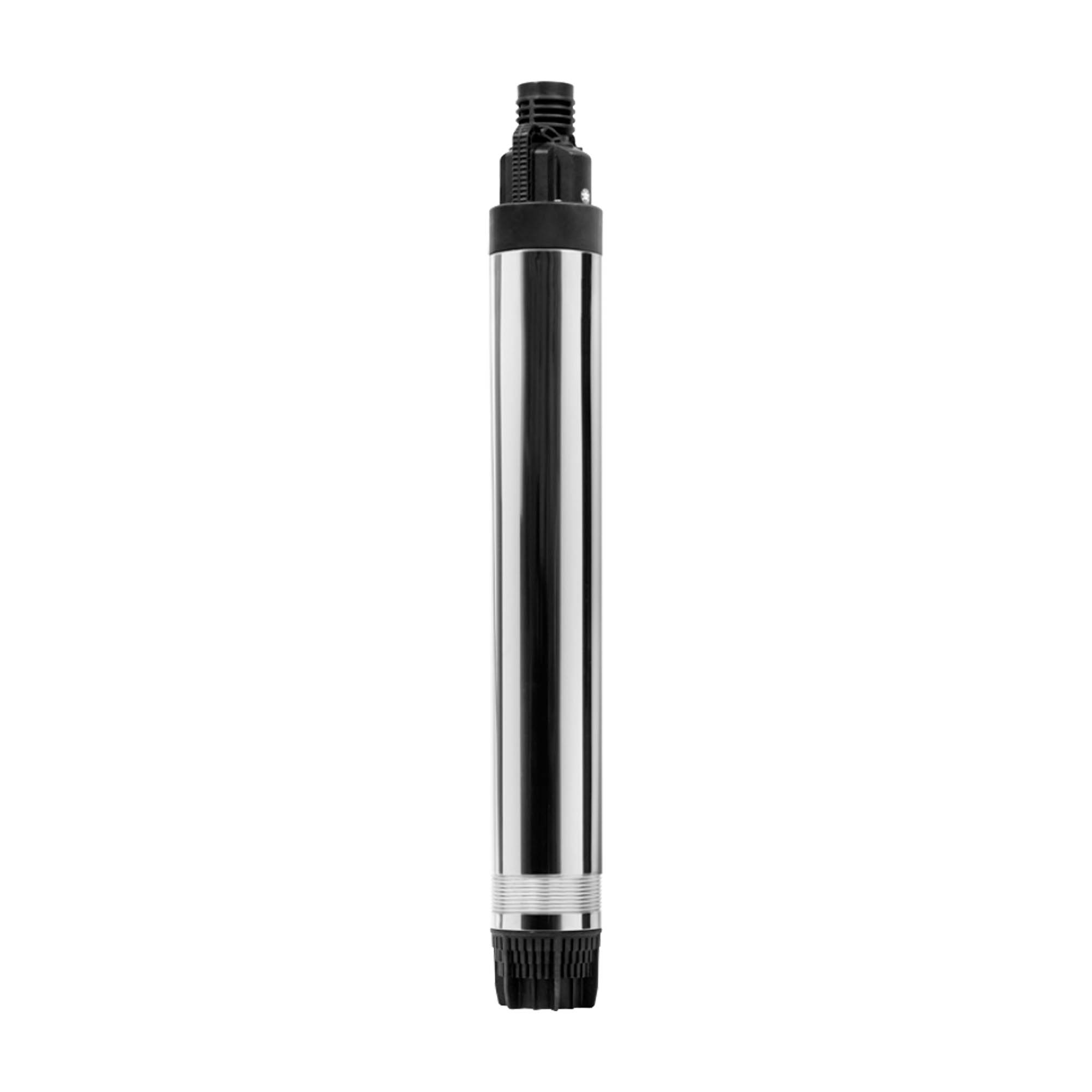

BHP 4” submersible pumps

4” multi-impeller submersible pumps designed for pressurization, gardening and irrigation, withdraw water from underground in domestic and residential, civil and commercial areas and irrigation systems also in agriculture.

CONSTRUCTION FEATURES OF THE PUMP
Technopolymer impellers housed in the stage box with stainless steel shim rings. Integrated suction filter. Built-in check valve in technopolymer.

CONSTRUCTION FEATURES OF THE MOTOR
Integrated thermal protection and capacitor.

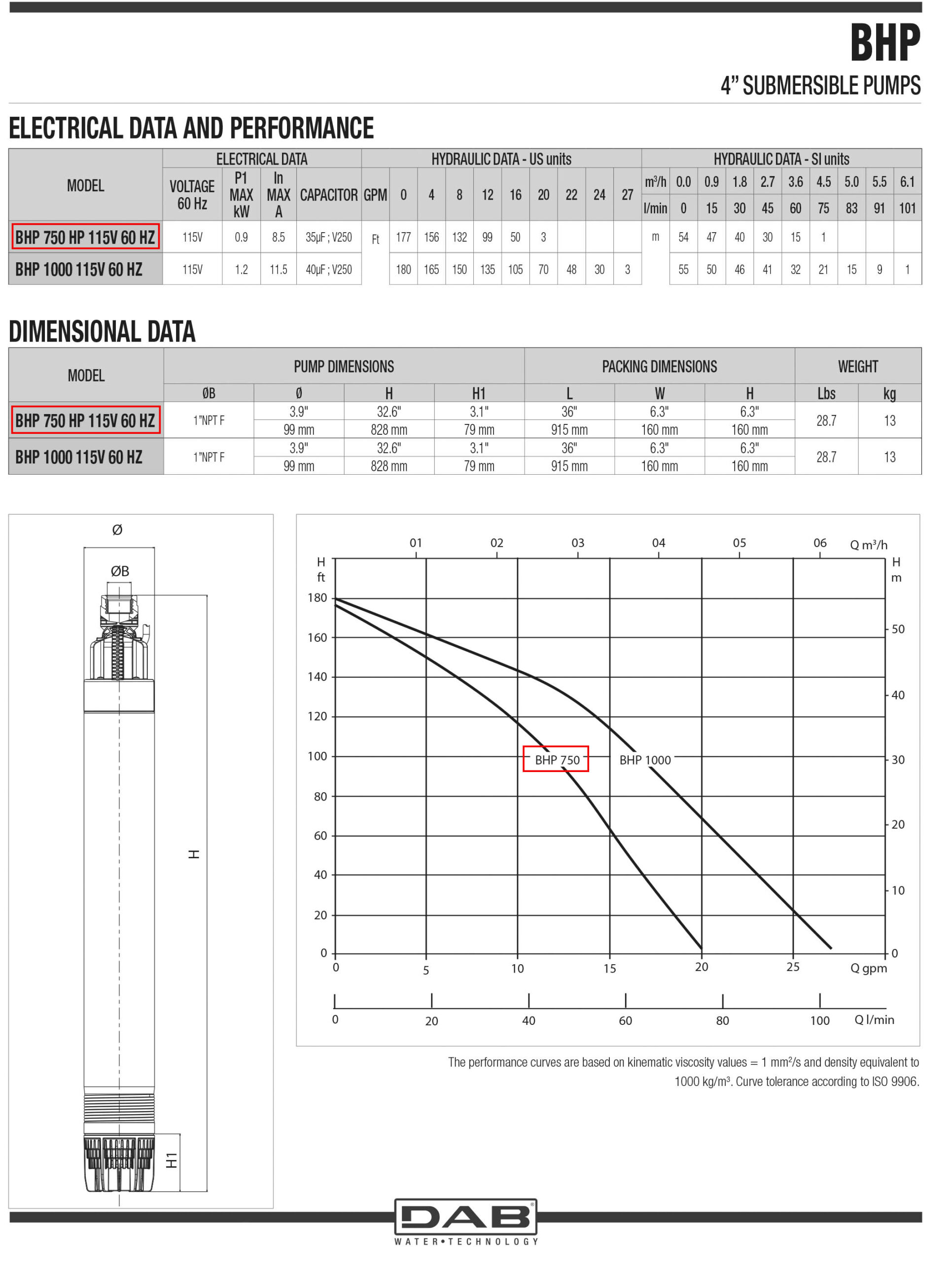

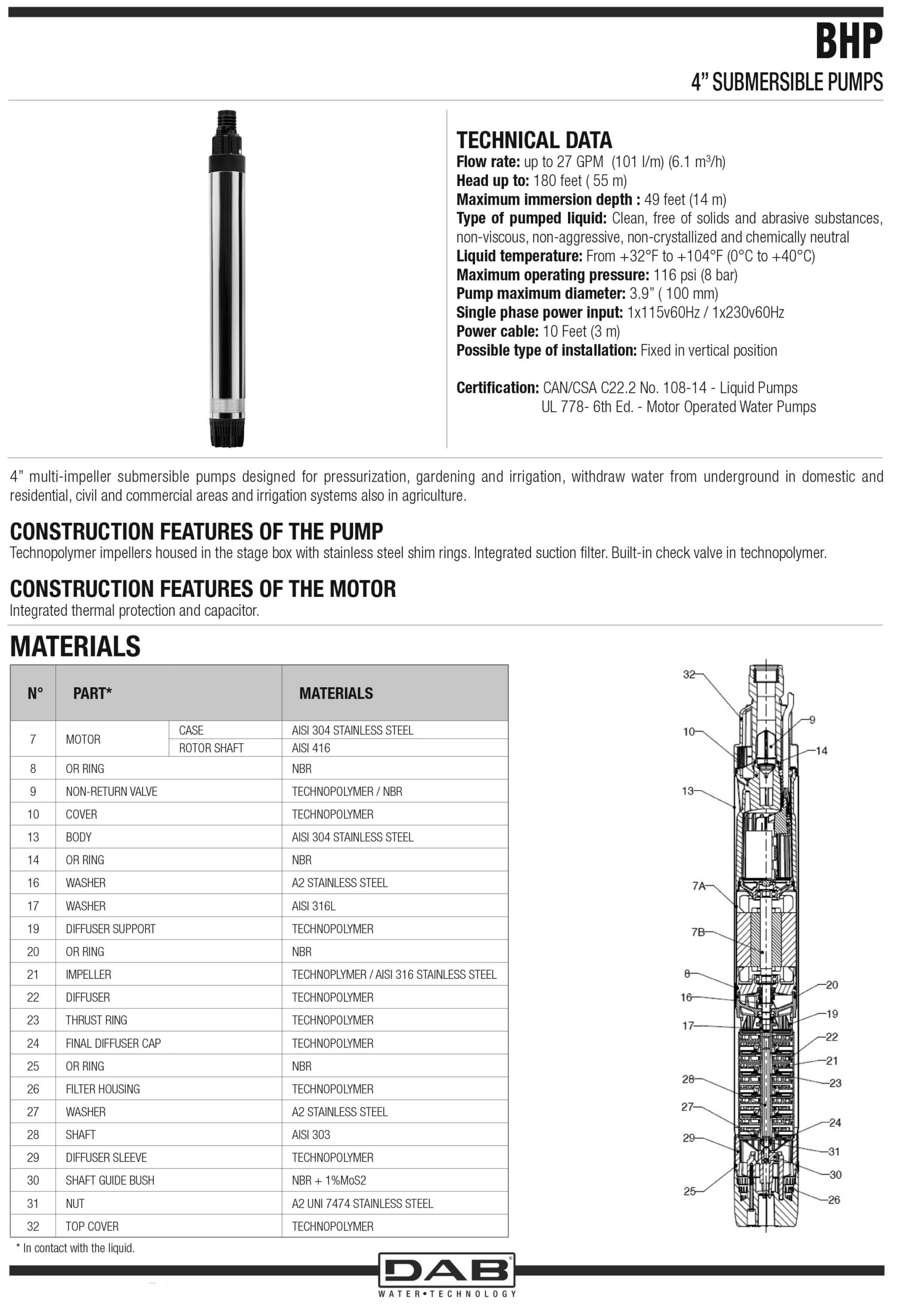

TECHNICAL DATA
Flow rate: up to 20 GPM
Head up to: 170 feet
Maximum immersion depth : 49 feet (14 m)
Type of pumped liquid: Clean, free of solids and abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral
Liquid temperature: From +32°F to +104°F (0°C to +40°C)
Maximum operating pressure: 116 psi (8 bar)
Pump maximum diameter: 3.9” ( 100 mm)
Single phase power input:  115v (60Hz)
Power cable: 10 Feet (3 m)
Possible type of installation: Fixed in vertical position

Certification: CAN/CSA C22.2 No. 108-14 – Liquid Pumps
UL 778- 6th Ed. – Motor Operated Water Pumps
