Description

Applications:

✅ Residential Homes – Improves water pressure for showers, faucets, and appliances
✅ Irrigation Systems – Ensures stable pressure for garden and agricultural watering
✅ Commercial Buildings – Ideal for offices, small hotels, and apartment complexes
✅ Light Industrial Use – Provides consistent pressure for process water applications
✅ Rainwater Harvesting – Boosts stored water for efficient distribution

Key Features:

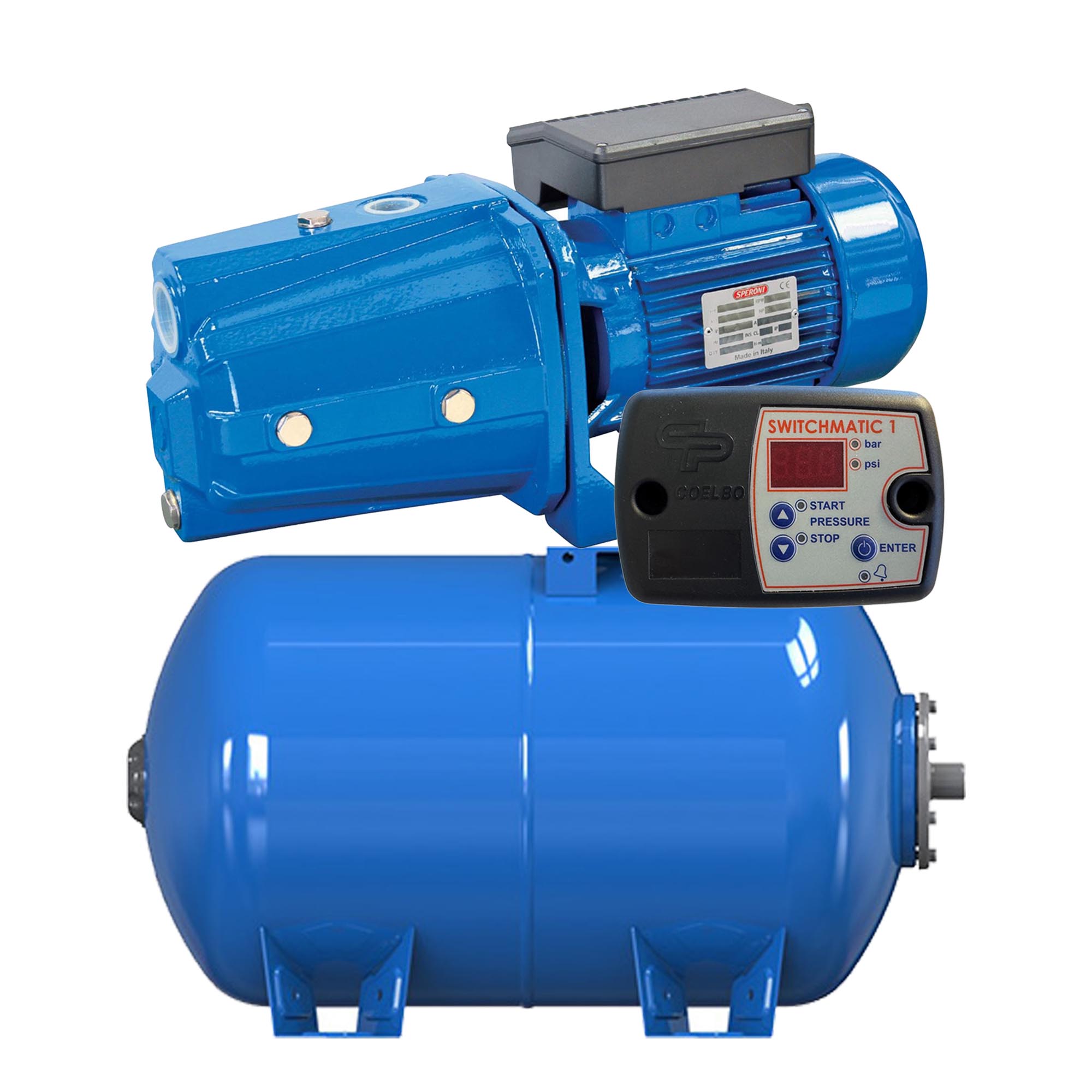

✔️ Fully Integrated System – Includes pump, pressure tank, and digital controller
✔️ Automatic Pressure Control – Switchmatic 1 ensures seamless operation
✔️ Energy-Efficient – Reduces pump cycling, extending pump lifespan
✔️ Compact & Easy to Install – Pre-assembled system for quick setup
✔️ Durable & Reliable – Built for long-term performance in various environments
✔️ Adjustable Output Pressure – Customizable settings for different applications
✔️ IP65 Rated Digital Switch – Water-resistant and suitable for harsh conditions

This booster system is perfect for anyone looking for reliable water pressure with easy installation and digital control for optimized performance.

Pump Materials

• – Pump body: Cast Iron
• – Motor Support: Aluminium
• – Impeller: Noryl
• – Diffuser: Noryl
• – Pump flange: Stainless Steel 304
• – Shaft with rotor: Stainless Steel 304
• – Mechanical seal: Ceramic/Graphite/NBR

Pump More Details:

Electronic pressure switch. Patented model.

This unit SWITCHMATIC 1 is an electronic pressure switch with an integrated digital pressure gauge. It can manage the start and stop of single-phase electric pumps up to 3 HP (2,2 kW). Cut-in and cut-out pressure implementation can be set easily and accurately through user friendly control panel. Wiring is carried out identically to a conventional electromechanical switch. It can operate as a differential pressure switch or as an inverted pressure switch.

OPERATING CHARACTERISTICS

– Inner pressure transmitter.
– Integrated pressure gauge with bar and psi instantaneous display.
– User friendly control panel including manual start push-button, 3-digits display, led-lights
and pushbuttons.
– Dry-running protection by minimal pressure (for type SWITCHMATIC 1).
– ART function (Automatic Reset Test). If the device has been stopped due the action of the
safety system against dry operation, the ART tries to connect the pump, with a programmed
periodicity because the water supply could have been restored.
– Rapid-cycle alarm: when the hydropneumatic tank has lost the air and frequent start-stops
are produced an alarm is activated and is delayed the start.
– Sleep mode with low power consumption.
– Advanced configuration menu: differentials, delay settings and other parameters.

Download Switchmatic spec sheet

Tank Details:

• NSF certified for safe drinking water with replaceable bladder
• Max working temperature 210°F and Max working pressure 145 psi
• Pressure tank for portabale water and pump system

The 15.8 Gal. , 30 psi Precharge Horizontal Pressure Tank best to save energy. Max working temperature 210°F and Max working pressure 145 psi. The Replaceable Bladder. The pressure tanks of Varem line are a basic element of a potable water distribution system. The pressure tank stores the pressurized water of the booster systems working as hydrodynamic flywheel during drawing. This application reduces the frequency of switching on of the booster system. A pressure switch adjust the internal pressure and activates the pump only if the water pressure in the tank is lower than minimum required. Switching on, the pump loads the storage tank again.

Std. certified

• 100% made in Italy
• Stainless steel Flange
• Best quality
• Strong
• Blue color tank
• Good for all type of weather
• Saves energy
• NPT connection
• Butyl rubber.
