Description

Technical Data

Model	Pump	GSP 40-21
Model	Motor	4CS6996
Brand		Gol Pumps
Manufacturer’s Warranty		1 years Limited Warranty
P2	kW	5.5
P2	HP	7.5
Service Factor		1.15
Material	Pump	Stainless Steel 304
Material	Motor	Stainless Steel 304
Voltage – Phase		230V – Three Phase
Wire		–
In	A	24.7
Imax	A	26.9
Istart	A	126.2
PF (%)	Allowable Load	0.73
PF (%)	Overload Factor	0.77
Efficiency (%)	Allowable Load	77.4
Efficiency (%)	Overload Factor	77.2
R.P.M		3450
Thrust	N	6000
Capacitor	UF	–
Cable	AWG	14
Cable	Length (ft.)	8.2
Production Country		Taiwan

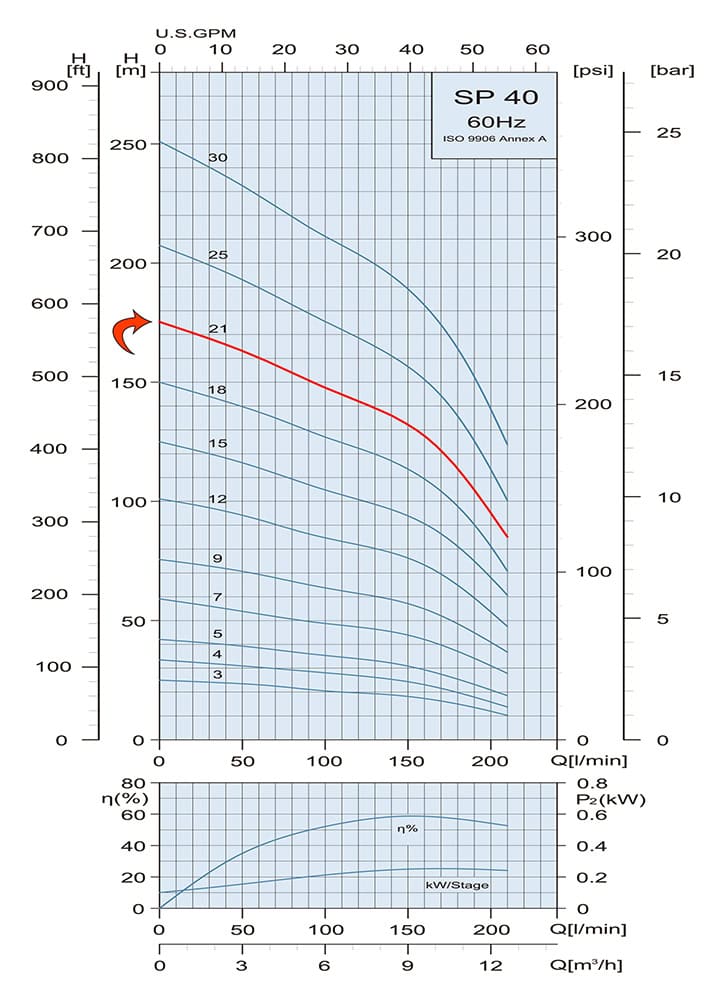

Performance Curves

Pump Model	Motor		Q Capacity 3500RPM
Pump Model	kW	HP	Gal/Min	0	21.1	23.8	26.4	31.7	37	42.3	47.6	52.8
GSP 40-21	5.5	7.5	Head (ft.)	574.1	505.2	495.4	485.6	465.9	446.2	416.7	374	311.7

Dimensions and Weights

Outlet	Motor Dia.	Dimensions (inch)			Weight (lb)
		A	B	C	Pump	Motor	Pump + Motor
NPT 2″	4″	42.7″	70.4″	3.9″	27.1	64	91.1

Part List and Materials

No.	Part Name	Materials
01	Discharge	AISI 304
12	Diffuser	AISI 304
18	Impeller	AISI 304
21	Split Cone	AISI 304
22	Split Cone Nut	AISI 304
24	Stop Ring	Carbon + Graphite + PTFE
32	Neck Ring Retainer	AISI 304
34	Strainer	AISI 304
36	Suction Interconnector	AISI 304
37	Coupling	AISI 304
40	Pump Shaft	AISI 304
47	Strap	AISI 304
52	Cable Guard	AISI 304
87	Neck Ring	AISI 304 + HNBR
88	Nut	AISI 304
89	Bearing	HNBR

Additional information

Brands	Gol Pump
AC voltage	208V – 230V
Horse power Ac	7.5 hp
Phase	Three Phase
Submersible Pump Size	4"
Material Submersible pump	Stainless Steel 304
Pump Outlet	2"

7.5HP Submersible Motor 53GPM Deep Well Water Pump - 230V - 3P - SS304 - 4" - 574ft Motor with Splice kit

SKU Number 7060130S

Price $3,055.79

Visit our website or contact our sales department for current availability, shipping options and technical assistance.

Product Description

4" Deep Well Submersible Water Pump – 7.5 HP, 230V, 3-Phase High-capacity 4 inch deep well submersible pump designed for groundwater pumping, irrigation, pressure boosting, and water supply applications. Built for 4" or larger wells and supplied with wire splice kit. Pump Specifications • Maximum Head: 574 ft • Maximum Flow: 5 GPM • Discharge Size: 23" • Power: 7.5 HP • Voltage: 230V, 3-Phase • Pump Material: Stainless Steel 304 • Pump Model: GSP 40-21 Product Advantages • Hermetically sealed stator with anti-track resin-filled construction • High-efficiency design helps reduce operating cost • Copper winding motor construction • Pressure equalizing diaphragm • Removable lead connector for easier maintenance •…

For complete product specifications, applications and construction details, please visit the product page shown below.

Product page: https://www.pumpsupermarket.com/product/7-5hp-submersible-motor-53gpm-deep-well-water-pump-230v-3p-ss304-4-574ft-motor-with-splice-kit/
