Description
Applications:
- For water supply from wells or reservoirs
- For domestic use
- for civil and industrial applications
- For garden use and irrigation
Operating conditions:
- Maximum fluid temperature up to +35
- Maximum sand content : 0.25%
- Minimum well diameter : 3.5″
Motor and Pump:
- Rewindable motor
- Single-phase:110V/60Hz or 220V/60Hz
- Equip with start control box or digital auto-control box
- Pumps are designed by casing stressed Curve tolerance according to ISO 9906
PUMP SPEC:
- Max Head(ft): 167
- Max Flow(Gpm): 31.5
- Discharge: 1 ½ “
- HP: 1
- Pump Material: Stainless Steel 304
- Pump Model: 3.5SDM6/6
- Pump Diameter: 3.5″
- Warranty: 1 Year Manufacture
3″ GSD Total Dynamic Head
Performance Data
|
MODEL |
P2 |
DELIVERY N = 3450 1/min -3 |
|||||||||||
|
1~ 220V |
KW | HP | Q | m3/h | 0 | 0.9 | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | 6.3 | 7.2 |
| l/min | 0 | 15 | 30 | 45 | 60 | 75 | 90 | 105 | 120 | ||||
|
3.5SD M6/6 |
0.75 | 1 |
H (m) |
51 | 50 | 48 | 47 | 43 | 38 | 31 | 22 | 12 | |

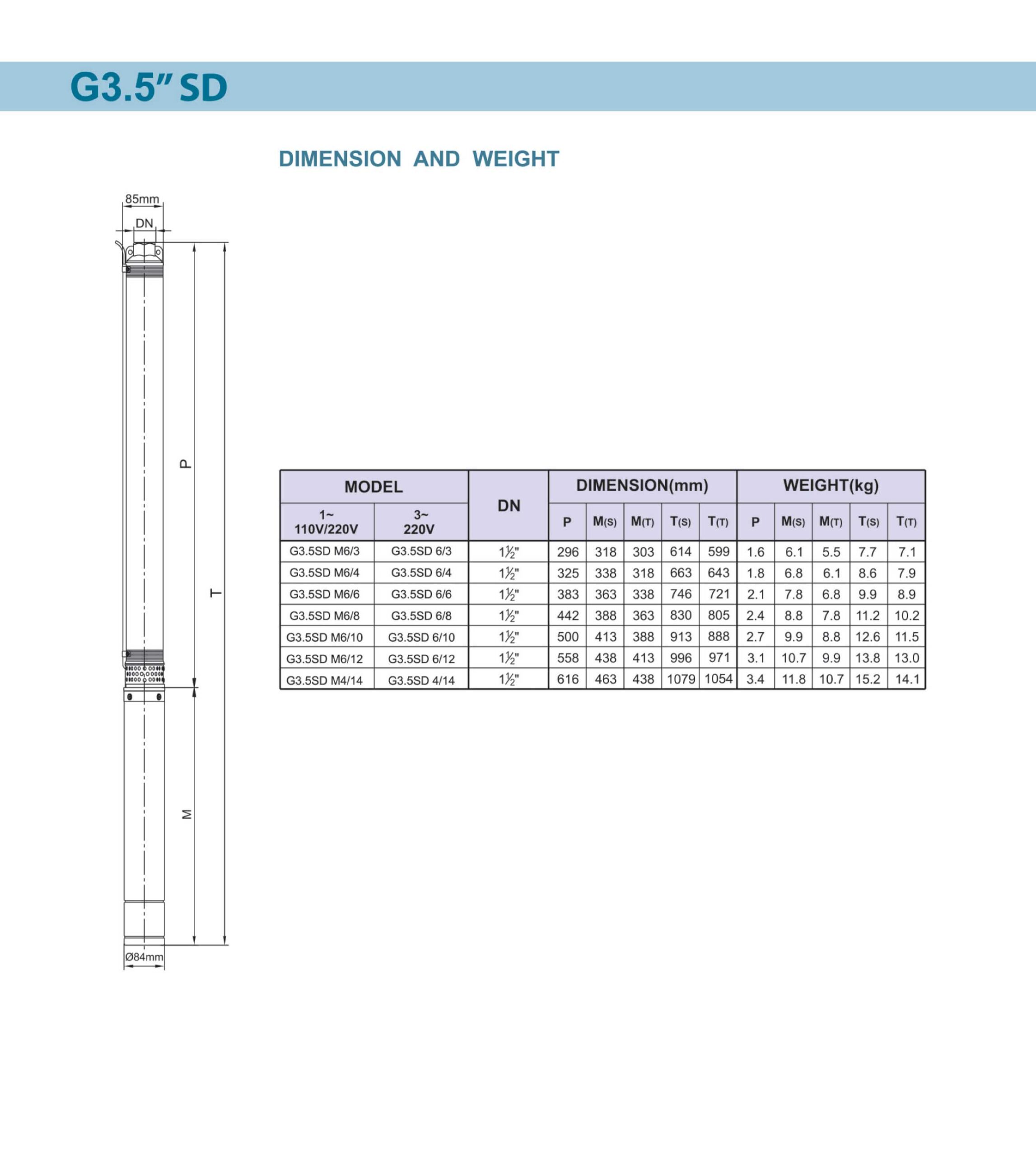

Dimension and Weight
|
Model |
DN | Dimension(inch) | Weight(lbs) | ||||||||
| 1~
110V/220V |
P | M(s) | M(t) | T(s) | T(t) | P | M(s) | M(t) | T(s) |
T(t) |
|
| 3.5SD M6/6 |
1 * 0.5″ |
15 | 14.3 | 13.3 | 29.4 | 28.4 | 4.6 | 17.2 | 15 | 22 | 20 |
|
Components |
Material |
| Pump external casing | AISI 304 SS |
| Delivery casing | Cast-Cu ASTM C85500 |
| Suction lantern | Cast-Cu ASTM C85500 |
| Diffuser | Plastic.PC |
| Impeller | Plastic.POM |
| Shaft | AISI 304 SS |
| Shaft coupling | AISI 304 SS |
| Wear ring | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top cover | Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic/TC) |
| Shaft | AISI 303 SS-ASTM 1045/5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
