Description

Technical Data

Model	Pump	GST 25-11
Model	Motor	4CS3946
Brand		Gol Pumps
Manufacturer’s Warranty		1 years Limited Warranty
P2	kW	1.5
P2	HP	2
Service Factor		1.25
Material	Pump	Noryl
Material	Motor	Noryl
Voltage – Phase		230V – Three Phase
Wire		–
In	A	6.5
Imax	A	7.5
Istart	A	34.1
PF (%)	Allowable Load	0.76
PF (%)	Overload Factor	0.81
Efficiency (%)	Allowable Load	76.3
Efficiency (%)	Overload Factor	76.2
R.P.M		3450
Thrust	N	3000
Capacitor	UF	No
Cable	AWG	14
Cable	Length (ft.)	3.9
Production Country		Taiwan

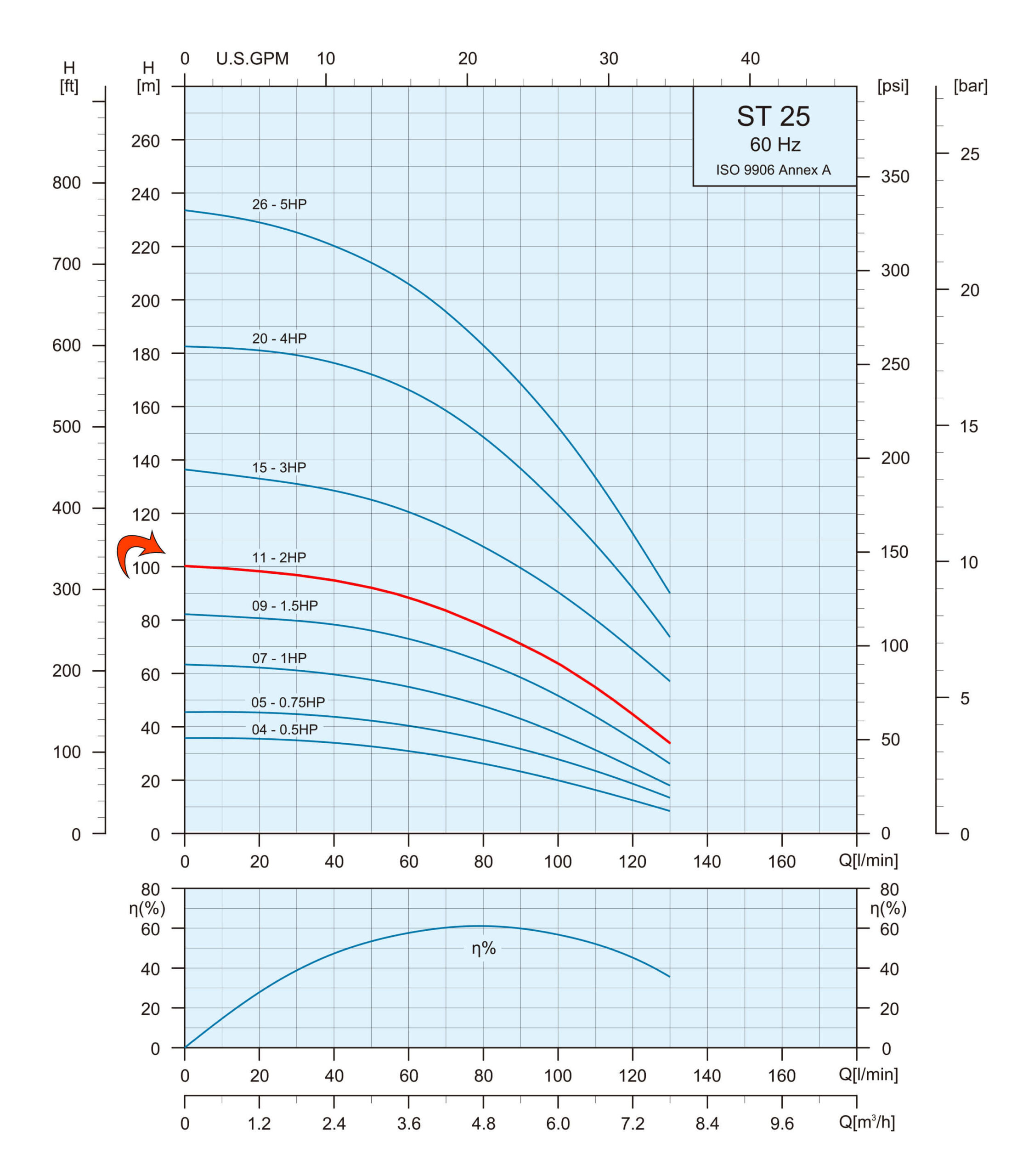

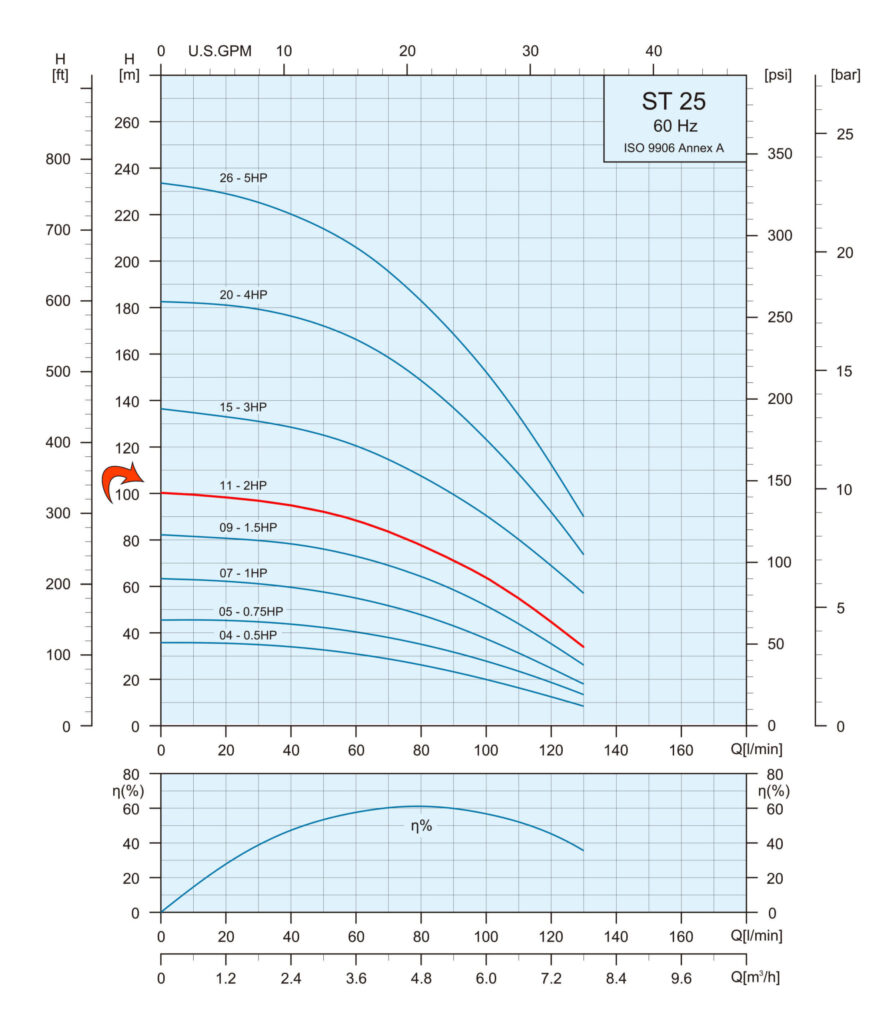

Performance Curves

Pump Model	Motor		Q Capacity 3500RPM
Pump Model	kW	HP	Gal/Min	0	13.2	15.9	18.5	21.1	23.8	26.4	31.7
GST 25-11	1.5	2	Head (ft.)	328	302	289	276	256	233	210	148

Dimensions and Weights

Outlet	Motor Dia.	Dimensions (inch)				Weight (lb)
		A	B	C	D	Pump	Motor	Pump + Motor
NPT 1 1/2″	4″	16.5	1 1/2	3.9	31.8	8.6	29.2	37.8

Part List and Materials

No.	Part Name	Materials
1	Discharge Head	AISI 304
4	Check Valve Cone	AISI 304
6	Check Valve Retaining Ring	AISI 304
8	Bearing Spider	Glass Filled Polycarbonate
12	Diffuser	Glass Filled Polycarbonate
13	Bowl	AISI 304
18	Impeller	Noryl
34	Strainer	AISI 304
40	Pump Shaft / Coupling	AISI 304
42	Shaft Sleeve	AISI 304 or Noryl
48	Pump Casing	AISI 304
52	Cable Guard	AISI 304
86	O-Ring	NBR
92	Bearing	Polyacetal

Additional information

Brands	Gol Pump
AC voltage	208V – 230V
Horse power Ac	2 hp
Phase	Three Phase
Submersible Pump Size	4"
Material Submersible pump	Noryl
Pump Outlet	1 1/2"

2HP SUBMERSIBLE 230V - 3P MOTOR 31.5GPM DEEP WELL WATER PUMP - 4" - 325ft Motor with Splice kit

SKU Number 7060287S

Price $933.71

Visit our website or contact our sales department for current availability, shipping options and technical assistance.

Product Description

4" Deep Well Submersible Water Pump – 2 HP, 230V, 3-Phase High-capacity 4 inch deep well submersible pump designed for groundwater pumping, irrigation, pressure boosting, and water supply applications. Built for 4" or larger wells and supplied with wire splice kit. Pump Specifications • Maximum Head: 325 ft • Maximum Flow: 31.5 GPM • Discharge Size: 1 1/2" • Power: 2 HP • Voltage: 230V, 3-Phase • Pump Material: Noryl • Pump Model: GST 25-11 Product Advantages • Hermetically sealed stator with anti-track resin-filled construction • High-efficiency design helps reduce operating cost • Copper winding motor construction • Pressure equalizing diaphragm • Removable lead connector for easier maintenance • Standard…

For complete product specifications, applications and construction details, please visit the product page shown below.

Product page: https://www.pumpsupermarket.com/product/2hp-submersible-230v-3p-motor-31-5gpm-deep-well-water-pump-4-325ft-motor-with-splice-kit/
