Use the Submersible Pump Selection Tool
Rated 5 out of 5
SKU: 7060285S

1HP Submersible Motor 31.5GPM Deep Well Water Pump – 230V – 1P – Noryl – 4″ – 205ft Motor with Splice kit

1HP Submersible Motor 31.5GPM Deep Well Water Pump - 230V - 1P - Noryl - 4" - 205ft Motor with Splice kit
Free Shipping
1HP Submersible Motor 31.5GPM Deep Well Water Pump - 230V - 1P - Noryl - 4" - 205ft Motor with Splice kit - Image 2
1HP Submersible Motor 31.5GPM Deep Well Water Pump - 230V - 1P - Noryl - 4" - 205ft Motor with Splice kit - Image 3
SKU: 7060285S Categories: , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 7060285S Categories: , Brand:
SKU: 7060285S

1HP Submersible Motor 31.5GPM Deep Well Water Pump – 230V – 1P – Noryl – 4″ – 205ft Motor with Splice kit

Gol Pumps Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

Pump Spec

  • Max Head (ft): 205
  • Max Flow (Gpm): 31.5
  • Discharge: 1 1/2″
  • HP: 1
  • Pump Material: Noryl
  • Pump Model: GST 25-07

Product Advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad.
  • Copper wiring.
  • Pressure equalizing diaphragm.
  • Removable lead connector.
  • Control boxes available for single phase motor Standard NEMA mounting dimensions.



*(Includes wire splice kit)

SKU 7060285S Categories , Brand:

UNIT PRICE

$799.07

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days
✓
Warranty
Manufacturer coverage
✓
Hassle-Free Returns
See return policy
✓
Real Support
(786) 613-5872 · [email protected]

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Technical Data

Model Pump GST 25-07
Motor 4CS3526M
Brand Gol Pumps
Manufacturer’s Warranty 1 years Limited Warranty
P2 kW 0.75
HP 1
Service Factor 1.4
Material Pump Noryl
Motor Noryl
Voltage – Phase 230V – Single Phase
Wire 2
In A 5.4
Imax A 6.8
Istart A 24.2
PF (%) Allowable Load 0.97
Overload Factor 0.98
Efficiency (%) Allowable Load 62.7
Overload Factor 68.2
R.P.M 3450
Thrust N 3000
Capacitor UF 25UF 450V
Cable AWG 14
Length (ft.) 3.9
Production Country Taiwan

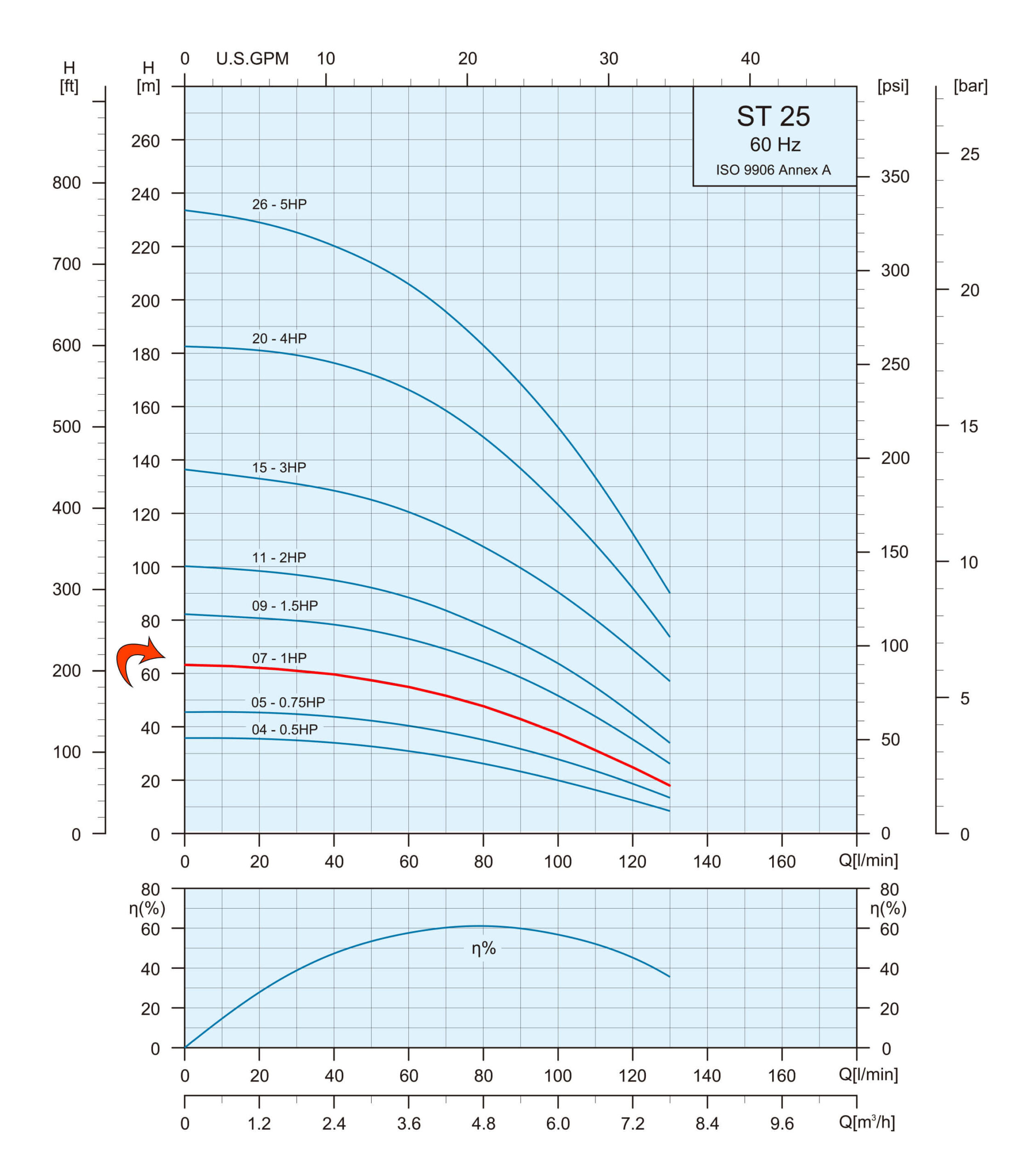

Performance Curves

Pump Model Motor Q Capacity 3500RPM
kW HP Gal/Min 0 13.2 15.9 18.5 21.1 23.8 26.4 31.7
GST 25-07 0.75 1 Head (ft.) 207 190 180 171 157 141 121 82

Dimensions and Weights

Outlet Motor Dia. Dimensions (inch) Weight (lb)
A B C D Pump Motor Pump + Motor
NPT 1 1/2″ 4″ 12.6 1 1/2 3.9 26.9 6.8 25.4 32.2

Part List and Materials

No. Part Name Materials
1 Discharge Head AISI 304
4 Check Valve Cone AISI 304
6 Check Valve Retaining Ring AISI 304
8 Bearing Spider Glass Filled Polycarbonate
12 Diffuser Glass Filled Polycarbonate
13 Bowl AISI 304
18 Impeller Noryl
34 Strainer AISI 304
40 Pump Shaft / Coupling AISI 304
42 Shaft Sleeve AISI 304 or Noryl
48 Pump Casing AISI 304
52 Cable Guard AISI 304
86 O-Ring NBR
92 Bearing Polyacetal

Additional information

Brands

AC voltage

Horse power Ac

Phase

Submersible Pump Size

Material Submersible pump

Pump Outlet
