1HP Submersible 2-WIRE Motor 53GPM Deep Well Water Pump – 230V – 1P – SS304 – 4″ – 108ft Motor with Splice kit

1HP Submersible 2-WIRE Motor 53GPM Deep Well Water Pump - 230V - 1P - SS304 - 4" - 108ft Motor with Splice kit
1HP Submersible 2-WIRE Motor 53GPM Deep Well Water Pump - 230V - 1P - SS304 - 4" - 108ft Motor with Splice kit - Image 2
1HP Submersible 2-WIRE Motor 53GPM Deep Well Water Pump - 230V - 1P - SS304 - 4" - 108ft Motor with Splice kit - Image 3
SKU: 7060101S Categories: , Tags: , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 7060101S Categories: , Tags: , , Brand:

1HP Submersible 2-WIRE Motor 53GPM Deep Well Water Pump – 230V – 1P – SS304 – 4″ – 108ft Motor with Splice kit

4″ Deep Well Submersible Water Pump – 1 HP, 230V, 1-Phase
High-capacity 4 inch deep well submersible pump designed for groundwater pumping, irrigation, pressure boosting, and water supply applications. Built for 4″ or larger wells and supplied with wire splice kit.

Pump Specifications
  • Maximum Head: 108 ft
  • Maximum Flow: 53 GPM
  • Discharge Size: 2″
  • Power: 1 HP
  • Voltage: 230V, 1-Phase
  • Pump Material: Noryl
  • Pump Model: GSP 40-4

Product Advantages
  • Hermetically sealed stator with anti-track resin-filled construction
  • High-efficiency design helps reduce operating cost
  • Copper winding motor construction
  • Pressure equalizing diaphragm
  • Removable lead connector for easier maintenance
  • Standard NEMA mounting dimensions

Technical Specifications
  • Upper bracket: cataphoresis treated cast iron with SS304 cover cap
  • Maximum immersion depth: 985 ft
  • Protection rating: IP68
  • Maximum 20 starts per hour at regular intervals
  • Sand slinger and lip seal protection
  • Insulation Class: F
  • Rated ambient temperature: 86°F minimum
  • Cooling flow: 0.08 m/s water flow speed
  • Installation position: vertical or horizontal

Includes Wire Splice Kit

CSA UL ISO Certifications
SKU 7060101S Categories , Tags , , Brand:

UNIT PRICE

$1,020.58

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days
✓
Warranty
Manufacturer coverage
✓
Hassle-Free Returns
See return policy
✓
Real Support
(786) 613-5872 · [email protected]

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Technical Data

Model Pump GSP 40-4
Motor 4CS3526M
Brand Gol Pumps
Manufacturer’s Warranty 1 years Limited Warranty
P2 kW 0.75
HP 1
Service Factor 1.4
Material Pump Stainless Steel 304
Motor Stainless Steel 304
Voltage – Phase 230V – Single Phase
Wire 2
In A 5.4
Imax A 6.8
Istart A 24.2
PF (%) Allowable Load 0.97
Overload Factor 0.98
Efficiency (%) Allowable Load 62.7
Overload Factor 68.2
R.P.M 3450
Thrust N 3000
Capacitor UF 25UF 450V
Cable AWG 14
Length (ft.) 3.9
Production Country Taiwan

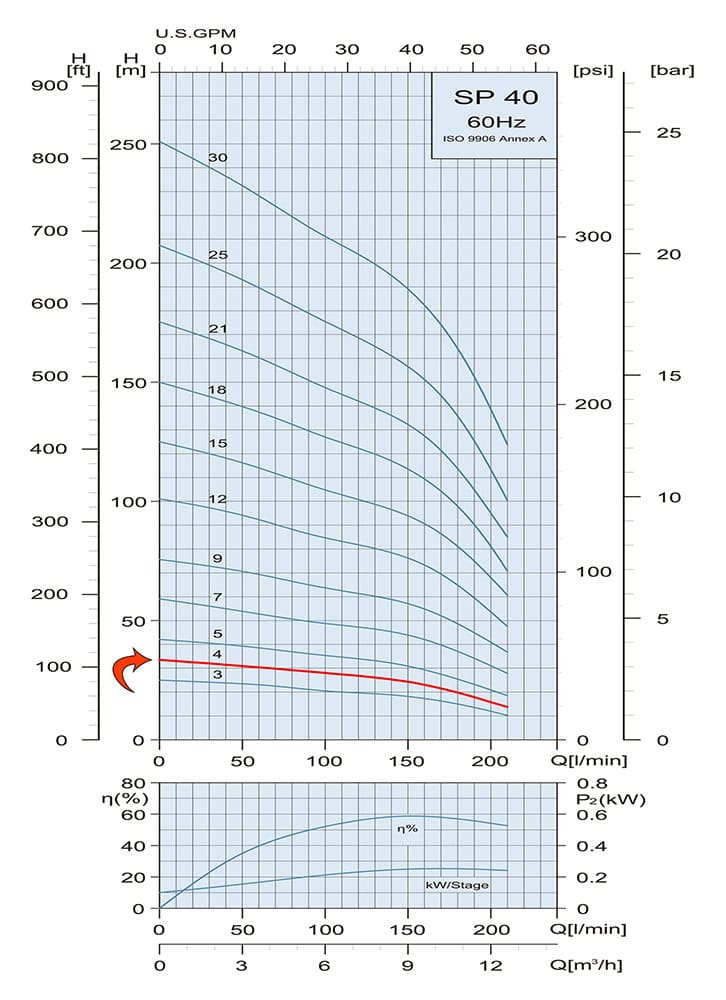

Performance Curves

Pump Model Motor Q Capacity 3500RPM
kW HP Gal/Min 0 21.1 23.8 26.4 31.7 37 42.3 47.6 52.8
GSP 40-4 0.75 1 Head (ft.) 108.3 95.1 91.9 88.6 85.3 82 75.5 65.6 52.5

Dimensions and Weights

Outlet Motor Dia. Dimensions (inch) Weight (lb)
A B C Pump Motor Pump + Motor
NPT 2″ 4″ 14.6″ 29.5″ 3.9″ 9 25.3 34.3

Part List and Materials

No. Part Name Materials
01 Discharge AISI 304
12 Diffuser AISI 304
18 Impeller AISI 304
21 Split Cone AISI 304
22 Split Cone Nut AISI 304
24 Stop Ring Carbon + Graphite + PTFE
32 Neck Ring Retainer AISI 304
34 Strainer AISI 304
36 Suction Interconnector AISI 304
37 Coupling AISI 304
40 Pump Shaft AISI 304
47 Strap AISI 304
52 Cable Guard AISI 304
87 Neck Ring AISI 304 + HNBR
88 Nut AISI 304
89 Bearing HNBR
