Free Shipping

WEG DRIVE CFW900A04P6T2DB20Y2B, 3Ph, 200/240 V, IP20 STO/SS1 HMI with bluetooth

Comments Off on WEG DRIVE CFW900A04P6T2DB20Y2B, 3Ph, 200/240 V, IP20 STO/SS1 HMI with bluetooth

The CFW900 is a high-tech VSD for driving and controlling three-phase induction and permanente magnet motors. It offers excellent static and dynamic performance and highly precise torque, speed and position control. It can be used in a wide range of applications due to its high overload capacity. Thanks to its technology, the CFW900 variable speed drive provides energy savings, safety, increased productivity and quality in the process network in which it is implemented.

  Product Features
Power supply 200 up to 240 V
Input phases Three-phase
Configuration With options
Rated current (HD) 4.6
RFI filter With filter (C3 category)
Enclosure IP20
Dynamic braking Yes
Safety Stop Functional safety
Continue Reading
Free Shipping

STANDARD PANEL , 50 HP, 230 V – Model GPH2050QC2001

Comments Off on STANDARD PANEL , 50 HP, 230 V – Model GPH2050QC2001

The Combination Soft Starter is a NEMA 4/12 Enclosed industrial general purpose AC motor soft starter package. It is designed for simple and quick installation and start-up, requiring only input power and output motor connections.

The Combination Soft Starter is built to complement the ruggedness and reliability of WEG motors, providing a complete, simple, and cost effective AC motor starting and protection solution.

Product features

  Product Features
Panel type SOFT-STARTER
Horsepower (HP) 50 HP
Main voltage 230 V
Bypass type None
Control options Start Pushbutton, Stop Pushbutton, Run Light, Fault Light and Keypad
Enclosure rating Type 4
Continue Reading
Free Shipping

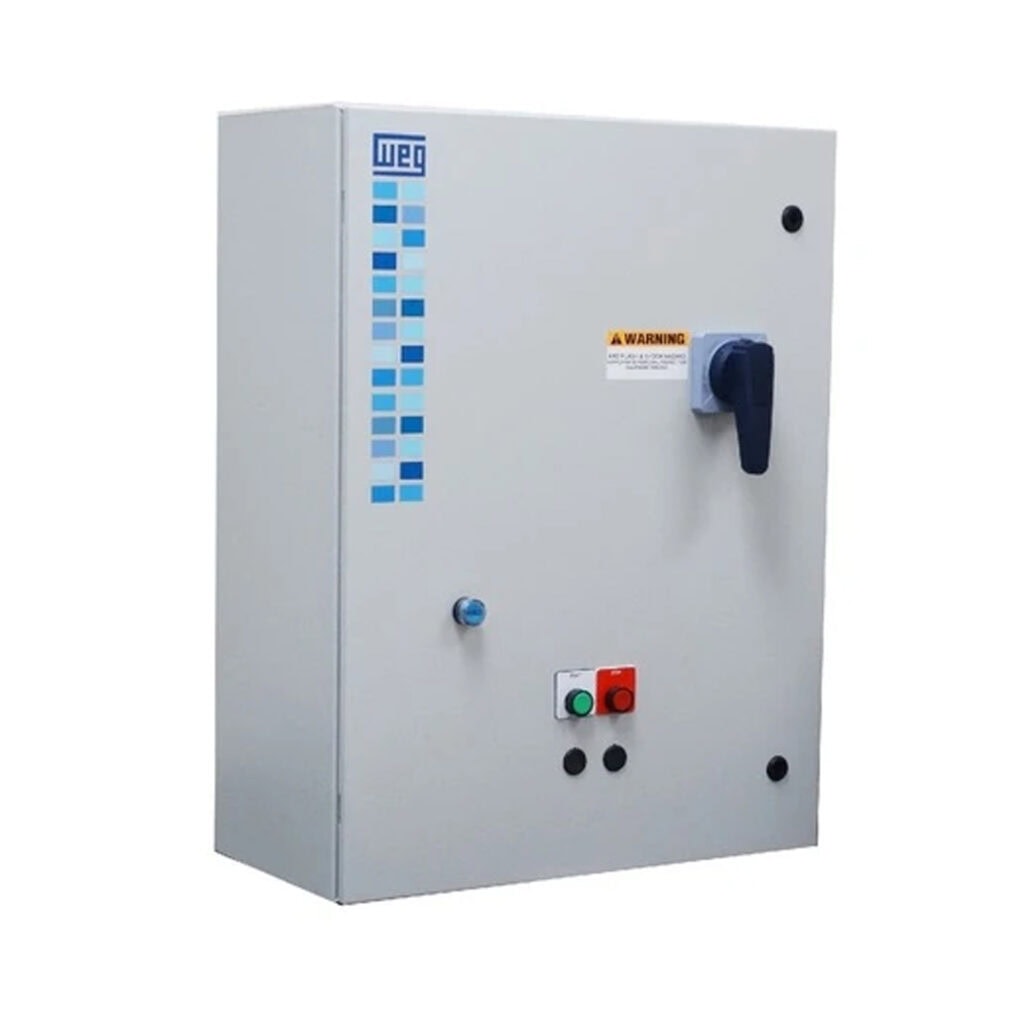

STANDARD PANEL – 208/230/460 V – Model ESWC-150TM1K9-RE7

Comments Off on STANDARD PANEL – 208/230/460 V – Model ESWC-150TM1K9-RE7



ESWF Series Combination Starters

WEG offers versatile UL508A ESWC series combination starters with solid-state overloads for motor starting and control. These full voltage non-reversing combination starters are available up to 250HP at 460VAC (300A) with control power transformers for three-phase applications.



  Product Features
Panel type Across the line
Horsepower (HP) 50/50/125 HP
Main voltage 208/230/460 V
Bypass type None
Control options Start Pushbutton, Stop Pushbutton, Hand/OFF/Auto Selector Switch and Reset Pushbutton
Enclosure rating Type 3R/4/12
Continue Reading
Free Shipping

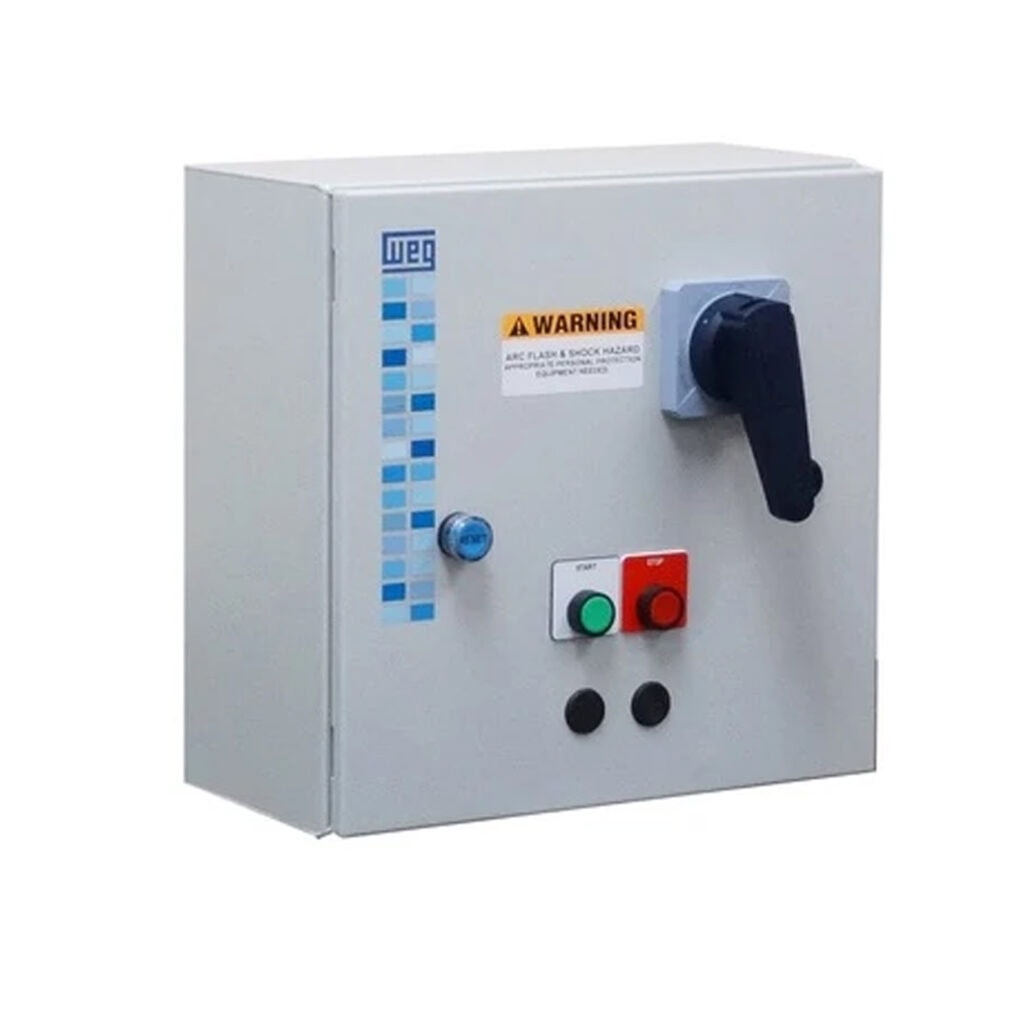

STANDARD PANEL – 208/230/460 V – Model ESWC-9TM1A9-RE2

Comments Off on STANDARD PANEL – 208/230/460 V – Model ESWC-9TM1A9-RE2



ESWF Series Combination Starters

WEG offers versatile UL508A ESWC series combination starters with solid-state overloads for motor starting and control. These full voltage non-reversing combination starters are available up to 250HP at 460VAC (300A) with control power transformers for three-phase applications.



  Product Features
Panel type Across the line
Horsepower (HP) 1.5/2/5 HP
Main voltage 208/230/460 V
Bypass type None
Control options Start Pushbutton, Stop Pushbutton and Reset Pushbutton
Enclosure rating Type 3R/4/12
Continue Reading
Free Shipping

ENCLOSED STARTER PESWS B9V24AX-RM63- SINGLE PHASE 208-240V

Comments Off on ENCLOSED STARTER PESWS B9V24AX-RM63- SINGLE PHASE 208-240V



PESWS Series Enclosed Starters

WEG enclosed starters series were designed to meet the requirements and flexibility frequently demanded in industrial applications. Featuring components that meet IEC design standards and UL horsepower ratings, WEG enclosed starters are UL508A approved and cULus certified. This means your panels will fulfill the rigorous requirements of UL508A and will have the quality and performance as for all WEG products.



Start Type Direct Single-phase
Assembly method (start key) Plastic Crate
Reference PESWS
Maximum Power Rating Not applicable
Rated operational voltage Ue<=600V
Control voltage 180-208V50HZ/208-240V60HZ
Degree of protection TYPE4X

Continue Reading
Free Shipping

WEG ENCLOSED STARTER PESW-95V24AX-R43

Comments Off on WEG ENCLOSED STARTER PESW-95V24AX-R43





WEG enclosed starters series were designed to meet the requirements and flexibility frequently demanded in industrial applications. Featuring components that meet IEC design standards and UL horsepower ratings, WEG enclosed starters are UL508A approved and cULus certified. This means your panels will fulfill the rigorous requirements of UL508A and will have the quality and performance as for all WEG products.



Product features

Start Type Direct Three-phase
Assembly method (start key) Plastic Crate
Reference PESW
Maximum Power Rating Not applicable
Rated operational voltage Ue<=600V
Control voltage 180-208V50HZ/208-240V60HZ
Degree of protection TYPE4X
Continue Reading
Free Shipping

WEG ENCLOSED STARTER ~ Model PESW-65V24EX-R39

Comments Off on WEG ENCLOSED STARTER ~ Model PESW-65V24EX-R39





WEG enclosed starters series were designed to meet the requirements and flexibility frequently demanded in industrial applications. Featuring components that meet IEC design standards and UL horsepower ratings, WEG enclosed starters are UL508A approved and cULus certified. This means your panels will fulfill the rigorous requirements of UL508A and will have the quality and performance as for all WEG products.



Product features

Start Type Direct Three-phase
Assembly method (start key) Plastic Crate
Reference PESW
Maximum Power Rating Not applicable
Rated operational voltage Ue<=600V
Control voltage 180-208V50HZ/208-240V60HZ
Degree of protection TYPE4X
Continue Reading
