STANDARD PANEL – 208/230/460 V – Model ESWC-9TM1A9-RE2

STANDARD PANEL - 208/230/460 V - Model ESWC-9TM1A9-RE2
SKU: 5170242 Categories: , , , Tags: , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 5170242 Categories: , , , Tags: , , Brand:

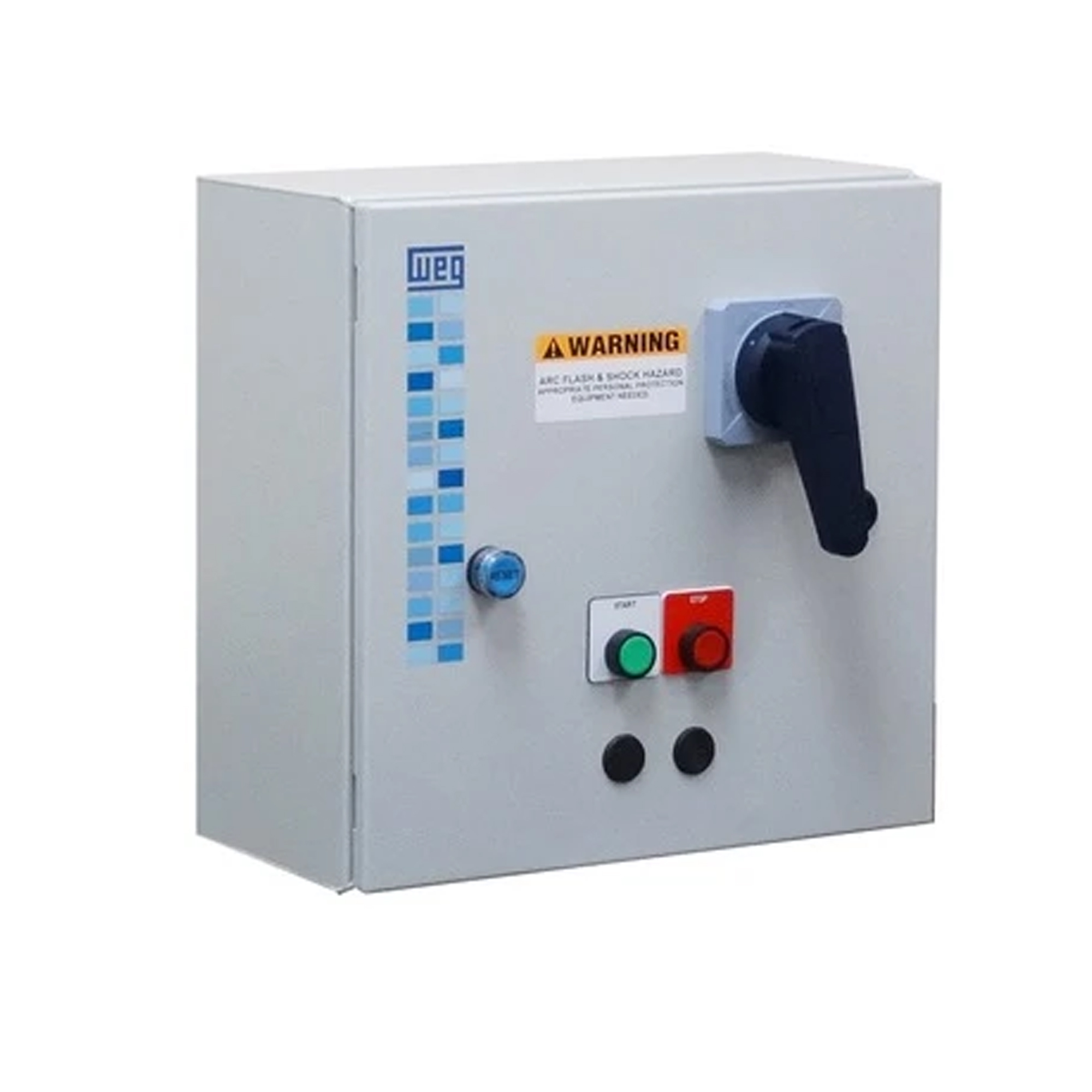

STANDARD PANEL – 208/230/460 V – Model ESWC-9TM1A9-RE2

Print Product Page



ESWF Series Combination Starters

WEG offers versatile UL508A ESWC series combination starters with solid-state overloads for motor starting and control. These full voltage non-reversing combination starters are available up to 250HP at 460VAC (300A) with control power transformers for three-phase applications.



  Product Features
Panel type Across the line
Horsepower (HP) 1.5/2/5 HP
Main voltage 208/230/460 V
Bypass type None
Control options Start Pushbutton, Stop Pushbutton and Reset Pushbutton
Enclosure rating Type 3R/4/12
SKU 5170242 Categories , , , Tags , , Brand:

UNIT PRICE

$1,364.23

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description







  Technical Data
Series ESWC
Panel type Across the line
Horsepower (HP) 1.5/2/5 HP
Enclosure type Wall mount
Thermal Managment None
General enclosure options None
Main voltage 208/230/460 V
Control Voltage 120 V
Frequency 60 Hz
SCCR rating 5 kAIC
Disconnect switch type Circuit Breaker rotary handle disconnect
Bypass type None
Control power transformer 100 VA – Open
Reactor/Filter None
Communication None
Control options Start Pushbutton, Stop Pushbutton and Reset Pushbutton
Enclosure rating Type 3R/4/12
Nominal height 400.0 mm / 15.7 in
Nominal width 400.0 mm / 15.7 in
Nominal depth 200.0 mm / 7.9 in
Certification UL

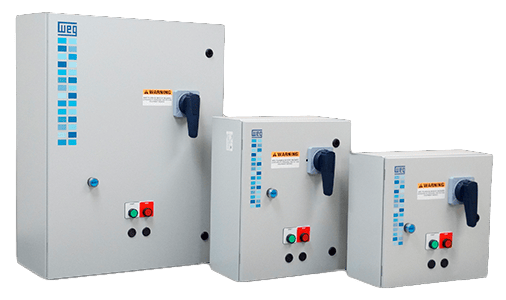

About the ESWC line:

ESWC series combination starters come standard with multi-rated enclosures, multi-rated transformers, branch disconnect, short-circuit protection, motor control, overload protection, and control devices. The starters are available in three enclosure sizes, meeting the requirements and needs for a variety of industrial applications.

Standard Features:

  • Multi-Rated Enclosure Type: 1/3R/4/12;
  • Multi-Voltage Transformer: primary 208V/230V/460V – secondary 120V;
  • Branch Disconnect: rotary through-the-door handle;
  • Short-Circuit Protection: molded case circuit breaker;
  • Motor Control: magnetic IEC contactor;
  • Overload Protection: solid-state overload relay – Selectable trip class 10, 20, 30 / (5:1) ratio adjustable current setting;
  • Standard Control Devices: RESET, START, STOP pushbuttons;
  • Custom control options available upon request.

Standard Features:

Enclosure Size Dimensions (inch)
H W D
ESWC-9TM1A9-RE2 31.5″ 23.6″ 11.8″



colors.png Technical Data
