Description

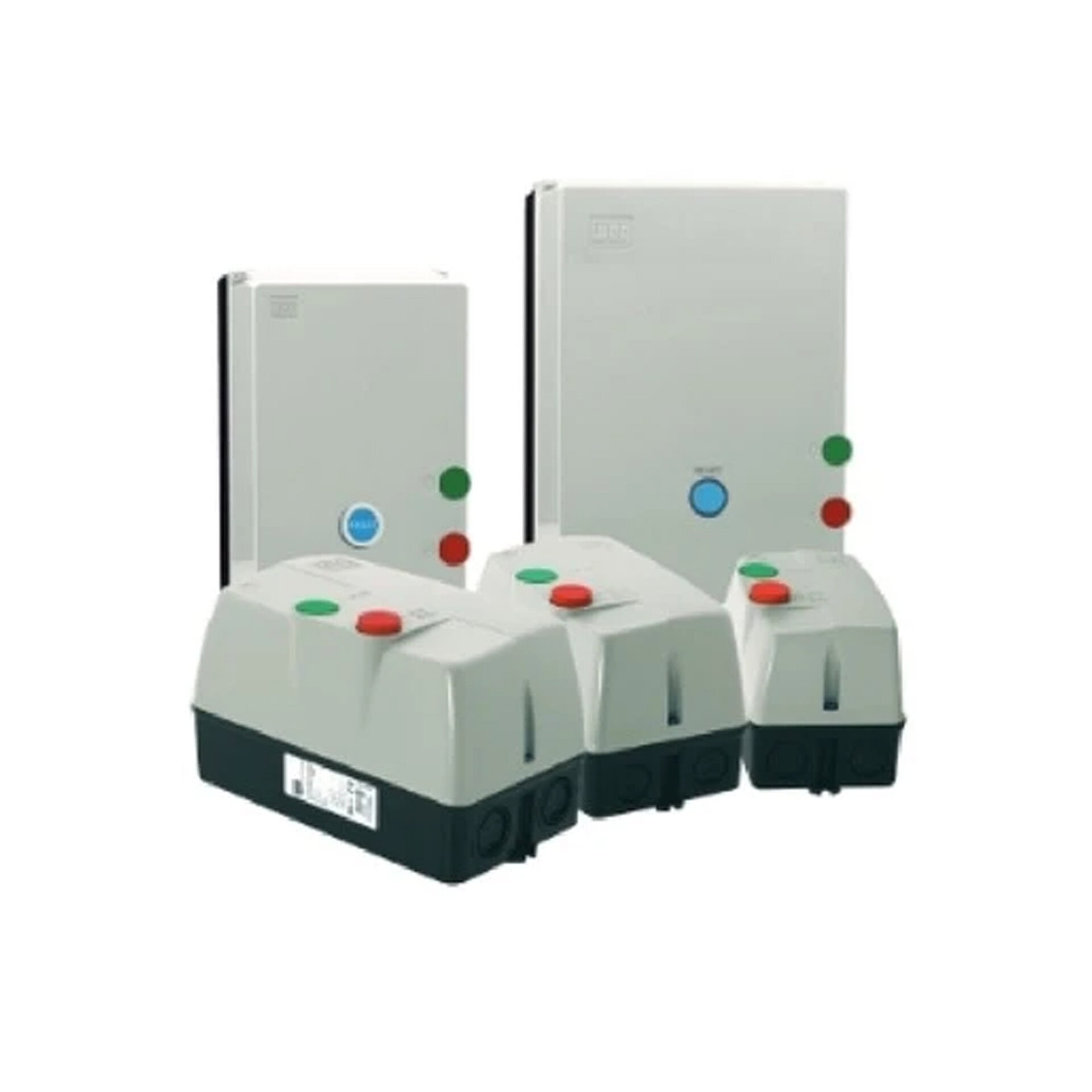

PESW Series Enclosed Starters
High performance, optimized solutions for motor
starting and control. WEG offers full voltage nonreversing and non-combination magnetic starters, PESW series, up to 75HP at 460VAC (105A) for threephase applications and up to 10HP at 230VAC (50A) for single-phase applications.
| Technical Data | ||
| Model | PESW-65V24EX-R39 | |
| Start type | Direct Three-phase | |
| Maximum power rating | Not applicable | |
| Rated operational voltage | Ue<=600V | |
| Control voltage | 180-208V50HZ/208-240V60HZ | |
| Control devices | E-Reset | |
| Degree of protection | TYPE4X | |
| Starters complements | Does Not Contain | |
| Rated current (AC-3) | 65A | |
| Overload relay | 40-57 A (RW67) | |
| Measuring tool and accessories | Not Applicable | |
| Button type | Unspecified | |
| Button color | Not specified | |
| Connection type | Not applicable | |
Standard Features
- Compact design
- Plastic enclosure Type 4X
- Available in four box sizes 05, 08, and 10
- IEC contactors inside
- Trip class 10 bimetallic overload relays
- Phase-loss sensitivity protection
- Automatic and manual RESET options
- Standard START/STOP + RESET buttons or RESET button only
- Custom control options available upon request
