STANDARD PANEL – 208/230/460 V – Model ESWC-150TM1K9-RE7

STANDARD PANEL - 208/230/460 V - Model ESWC-150TM1K9-RE7
SKU: 5170260 Categories: , , , Tags: , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 5170260 Categories: , , , Tags: , , Brand:

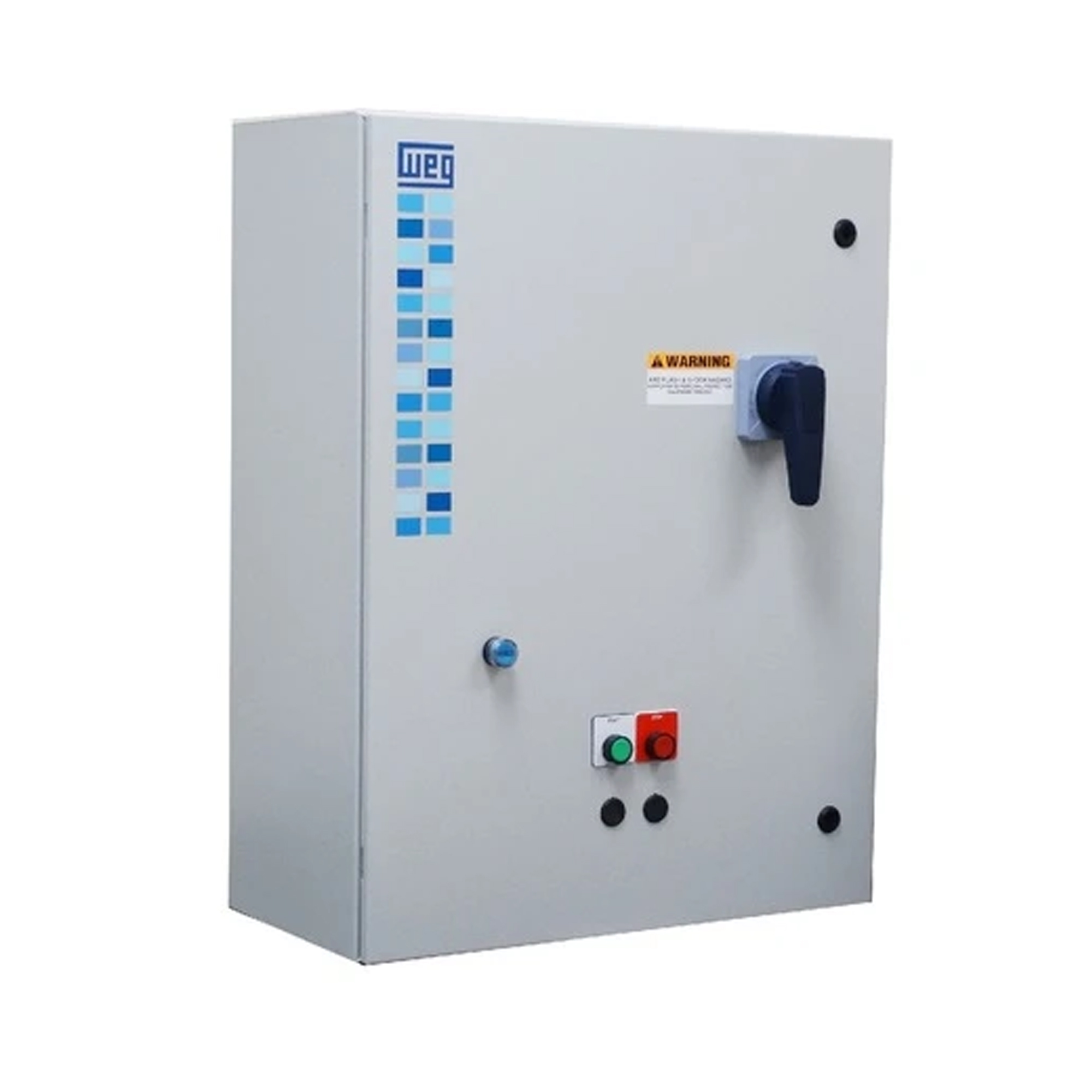

STANDARD PANEL – 208/230/460 V – Model ESWC-150TM1K9-RE7



ESWF Series Combination Starters

WEG offers versatile UL508A ESWC series combination starters with solid-state overloads for motor starting and control. These full voltage non-reversing combination starters are available up to 250HP at 460VAC (300A) with control power transformers for three-phase applications.



  Product Features
Panel type Across the line
Horsepower (HP) 50/50/125 HP
Main voltage 208/230/460 V
Bypass type None
Control options Start Pushbutton, Stop Pushbutton, Hand/OFF/Auto Selector Switch and Reset Pushbutton
Enclosure rating Type 3R/4/12
SKU 5170260 Categories , , , Tags , , Brand:

UNIT PRICE

$3,714.48

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days
✓
Warranty
Manufacturer coverage
✓
Hassle-Free Returns
See return policy
✓
Real Support
(786) 613-5872 · [email protected]

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

See Why Thousands of Customers Trust Pump Supermarket

Take a quick look inside our Miami warehouse and discover the people, products, and expertise behind every order we ship.

✔ 4,000+ Products in Stock ✔ Fast Nationwide Shipping ✔ Expert Technical Support ✔ Trusted by Thousands of Customers
Pump Supermarket Mobile App Icon
PSM Mobile App Official Pump Supermarket App
Available on iOS & Android

Pump Supermarket, Anywhere.

Browse pumps, motors, and industrial equipment right from your phone. Find what you need, explore products, and shop with ease.

Download on the App Store
Scan QR code to download PSM for iPhone
Scan with iPhone
Get it on Google Play
Scan QR code to download PSM for Android
Scan with Android
Your trusted pump supplier, now in your pocket.

Description







  Technical Data
Series ESWC
Panel type Across the line
Horsepower (HP) 50/50/125 HP
Enclosure type Wall mount
Thermal Managment None
General enclosure options None
Main voltage 208/230/460 V
Control Voltage 120 V
Frequency 60 Hz
SCCR rating 5 kAIC
Disconnect switch type Circuit Breaker rotary handle disconnect
Bypass type None
Control power transformer 100 VA – Open
Reactor/Filter None
Communication None
Control options Start Pushbutton, Stop Pushbutton, Hand/OFF/Auto Selector Switch and Reset Pushbutton
Enclosure rating Type 3R/4/12
Nominal height 800.0 mm / 31.5 in
Nominal width 600.0 mm / 23.6 in
Nominal depth 300.0 mm / 11.8 in
Certification UL



About the ESWC line:

ESWC series combination starters come standard with multi-rated enclosures, multi-rated transformers, branch disconnect, short-circuit protection, motor control, overload protection, and control devices. The starters are available in three enclosure sizes, meeting the requirements and needs for a variety of industrial applications.

Standard Features:

  • Multi-Rated Enclosure Type: 1/3R/4/12;
  • Multi-Voltage Transformer: primary 208V/230V/460V – secondary 120V;
  • Branch Disconnect: rotary through-the-door handle;
  • Short-Circuit Protection: molded case circuit breaker;
  • Motor Control: magnetic IEC contactor;
  • Overload Protection: solid-state overload relay – Selectable trip class 10, 20, 30 / (5:1) ratio adjustable current setting;
  • Standard Control Devices: RESET, START, STOP pushbuttons;
  • Custom control options available upon request.

Standard Features:

Enclosure Size Dimensions (inch)
H W D
ESWC-150TM1K9-RE7 31.5″ 23.6″ 11.8″
