Our Model BN140 nonautomatic Effluent Pump is designed to remove unwanted water in septic effluent applications.  It is an ideal choice in high pressure or high flow applications.  The professional-grade, 1 HP Model 140 is known for its dependability.  The BN140 is a nonautomatic pump equipped with a single piggyback float switch.  The piggyback float switch allows you to set the on and off point of the pump in the field.  This is ideal in an application with a deep sump pit or pump tank.

The Model 140’s switch case, motor housing, and pump housing are each constructed of cast iron.   The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump.  The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel.  This attention to detail ensures that the Model 140 is able to withstand the most demanding applications.

Features and Benefits

• Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
• Nonautomatic pump with piggyback variable level float switch which allows you to adjust the on / off level for optimal runtime
• Corrosion resistant engineered plastic vortex impeller to allow free passage of 2″ spherical solids which prevents clogging and increases reliability
• Stainless steel screws, handle, and piggyback switch pipe clamp to prevent rust and corrosion
• Powder-coated epoxy finish provides corrosion-resistance and extends life in harsh environments
• 100% factory tested: Our factory-tested effluent pumps ensure reliable performance in challenging applications with fewer concerns about mechanical failures
• 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind

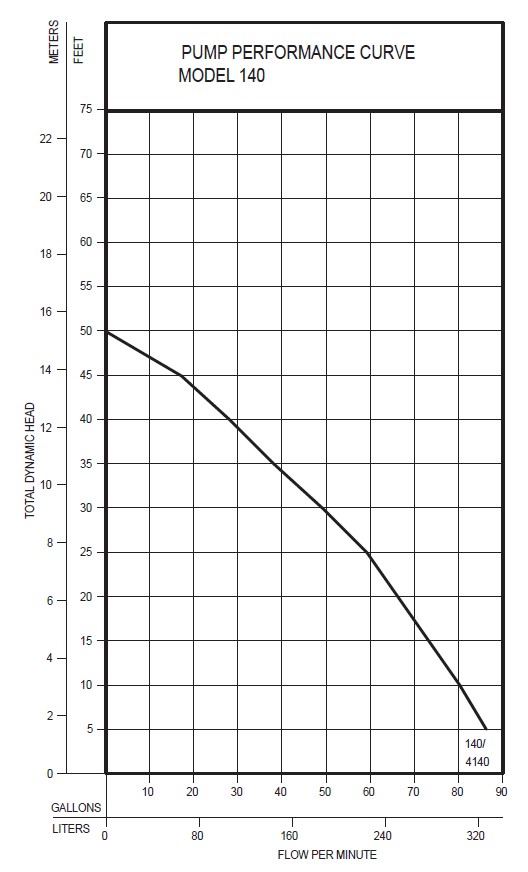

Product Curve

Product Dimensions

Product Specifications
