Description
Technical Data
Product Details

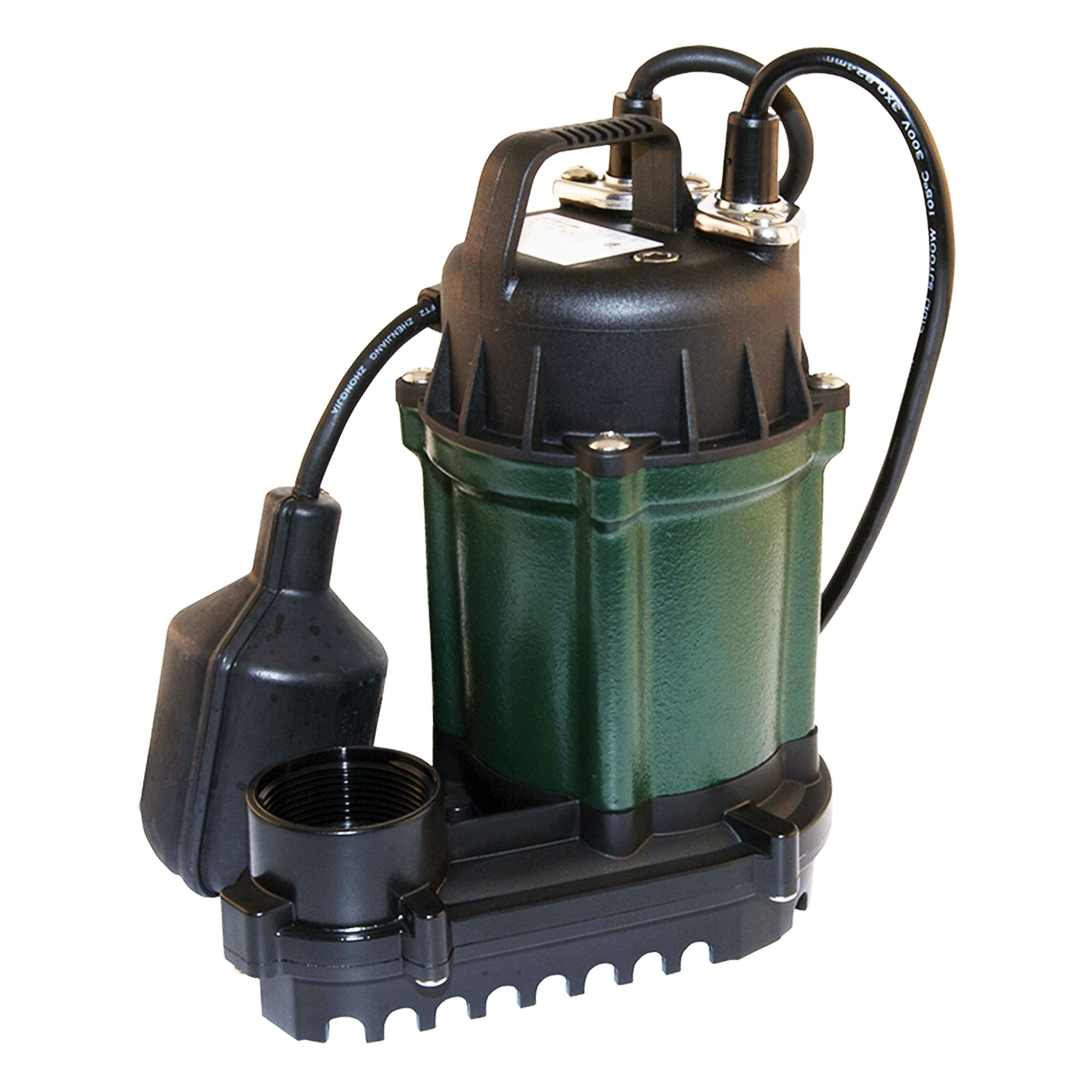

Our Model WM49 Sump Pump with a 20′ cord is designed to remove unwanted groundwater in basement sump applications. The 1/4 HP “Water Ridd’r” Model 49 is a fully automatic float-operated sump pump. The WM49’s tethered float switch utilizes a mechanical float switch for operating the pump. This is a time-tested method of controlling the pump. The Model 49 is a compact option for small sump pits.
The Model 49 pump is constructed with a cast iron motor housing. This enables it to withstand the most demanding basement sump applications. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. All of the Model 49’s hardware is made of high-quality stainless steel. All of these features highlight the fact that it was designed with longevity in mind balanced by price.
Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
Features and Benefits
- Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
- Automatic pump with a built in wide angle switch makes for easy installation
- Corrosion resistant engineered plastic vortex impeller to allow free passage of solids which prevents clogging and lessens downtime
- Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
- Stainless steel screws and hardware prevent rust and corrosion over the life of the pump
- 100% Factory Tested – every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
- Comes with a 2-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
Product Curve

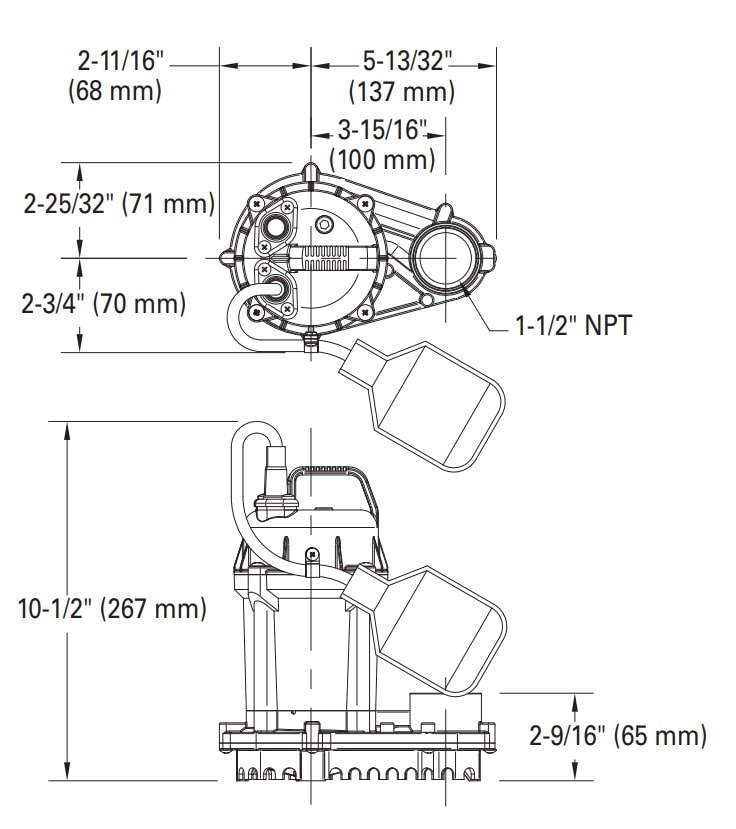

Product Dimensions
Product Specifications
Type: Automatic
Weight: 11 lbs
Dimensions: Height 10 3/4 in x Width 7 1/2 in x Length 9 1/2 in.
Horsepower: 1/4 HP
Voltage: 115 V
Phase: 1 Ph
Amps: 4
Hertz: 60 Hz
RPM: 3450
Discharge: 1 1/2″ NPT
Solids Handling: 3/8″ (9 mm) spherical solids
On/Off Points: 11-1/4″ (28.6 cm) / 4-1/8″ (10.5 cm)
Impeller Material: Engineered Plastic
Impeller Type: Vortex
Cord Length: 20′
Certificate: CSA – UL

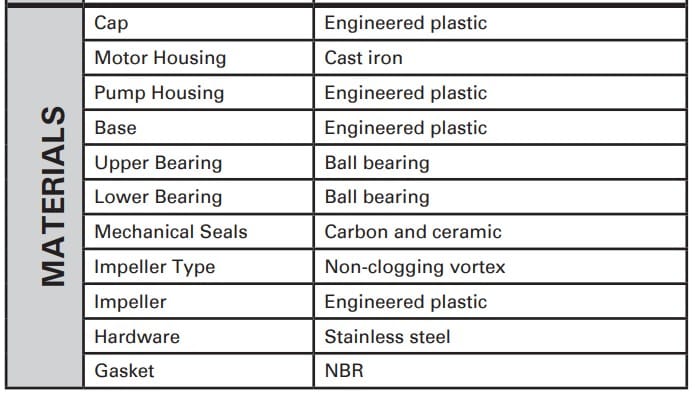

Product Material
