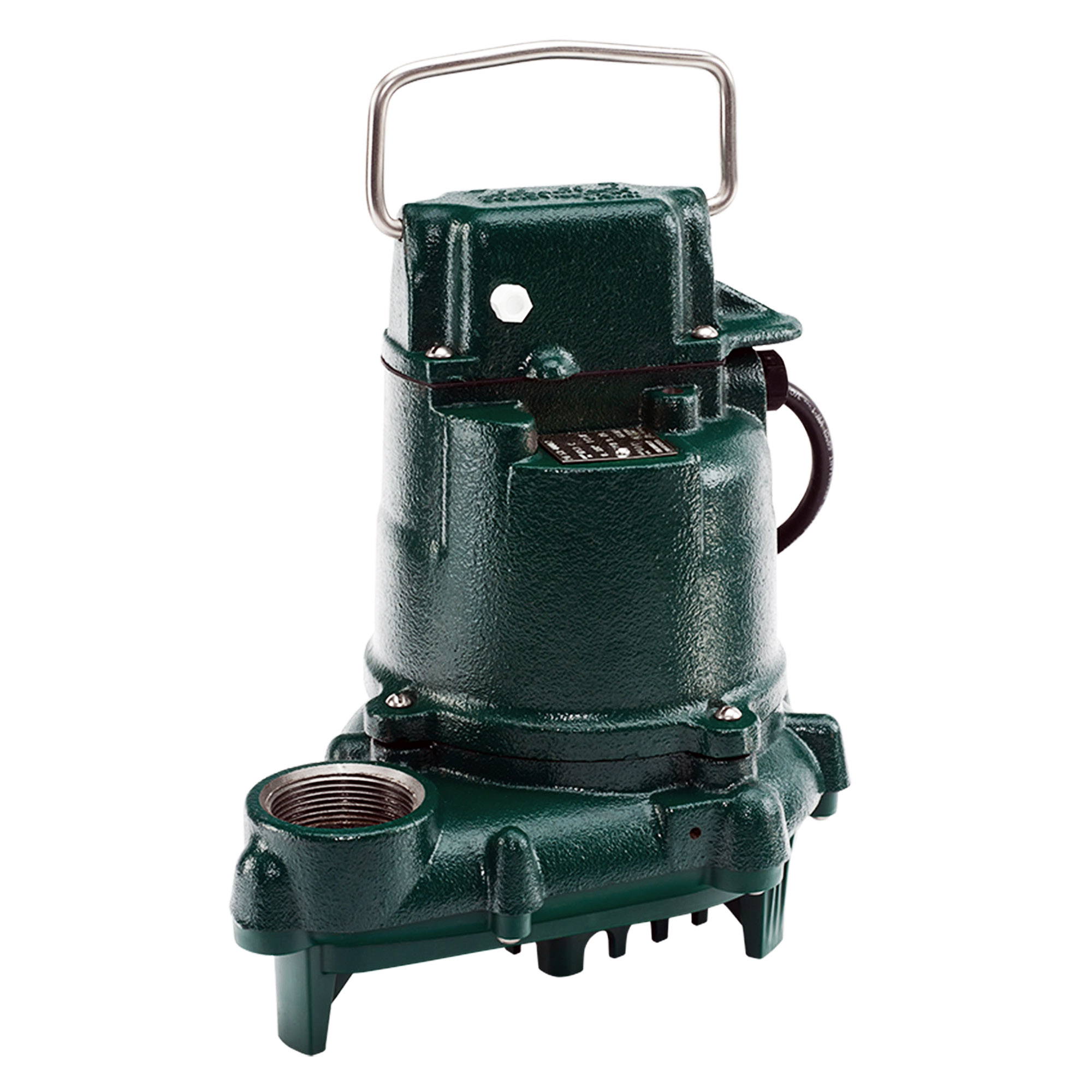

Model N53 nonautomatic Effluent Pump is designed to remove unwanted water in sump or septic effluent applications. The professional-grade, 3/10 HP Model 53 is known for its dependability.  The N53 is a nonautomatic pump requiring a piggyback float switch or control panel for operation.  Either option allows you to set the on and off point of the pump in the field.  This is ideal in an application with a deep sump pit or pump tank.

The Model 53’s switch case, motor housing, and pump housing are each constructed of cast iron.   The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump.  The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel.  This attention to detail ensures that the Model 53 is able to withstand the most demanding applications.

Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right out of the box.

Features and Benefits

• Oil filled for optimal heat dissipation: This design minimizes concerns about the pump overheating or breaking down due to extreme heat generation during extended-use applications
• Nonautomatic pump (Piggyback variable level float switch available separately)
• Built with a vortex impeller to allow free passage of solids to prevent clogging
• Powder-coated epoxy finish provides corrosion-resistance and extends life in harsh environments
• Stainless steel screws, handle and hardware to prevent rust and corrosion
• 100% factory tested: Our factory-tested pumps ensure reliable performance in challenging applications with fewer concerns about mechanical failures
• 3-year limited warranty: This model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
