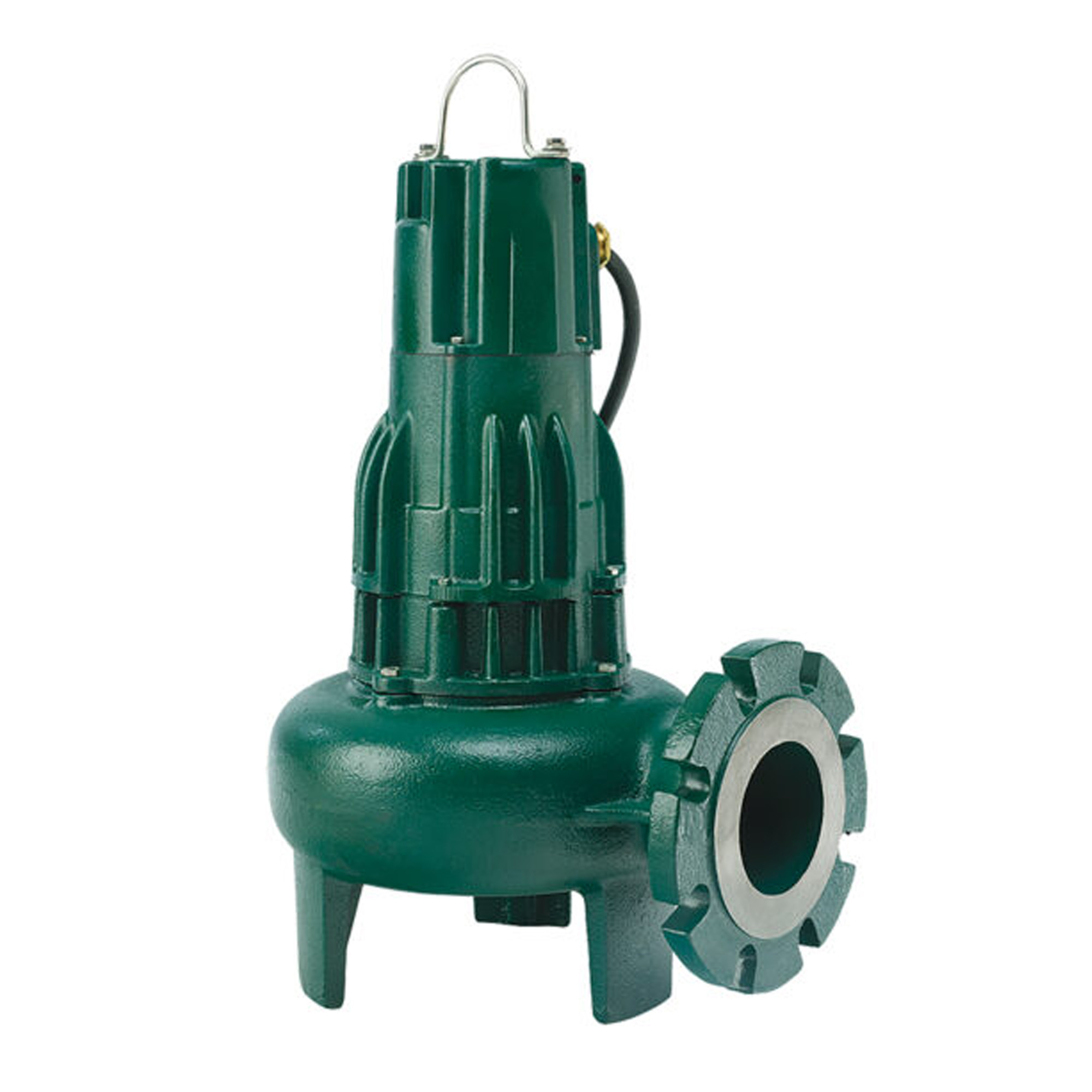

Our Model WD4405 Sewage Pumps are designed to transfer groundwater, or raw sewage with a no-hassle, effortless performance. The heavy-duty construction, oversized bearings and balanced non-clogging vortex impellers allow the Model WD4405 to stand up to the highest heads and maximum flows. The benefits of this series include a discharge size of 4 inches with the capacity to pass 3-inch solids. In addition, fins are added in the construction of the pump, utilizing Zoeller’s cool run design and lowering operating temperatures.
Features and Benefits
- Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
- Nonautomatic operation
- Corrosion resistant cast iron vortex impeller to allow free passage of 2″ spherical solids which prevents clogging and increases reliability
- Stainless steel screws, handle, and hardware to prevent rust and corrosion
- Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
- 100% Factory Tested – every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
- Comes with a 1-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
Product Curve
Product Materials and Dimensions
Product Specifications
Shipping Weight:
136 lbs
Shipping Dimensions:
Height 45 in x Width 24 1/2 in x Length 32 3/4 in.
Horsepower:
3 HP
Voltage:
200-230 V
Phase:
1 Ph
Amps:
12.9
RPM:
1750
Hertz:
60 Hz
Discharge:
4″ horizontal ANSI flange
Solids Handling:
3″ (76 mm) spherical solids
On/Off Points:
Variable level- customer set
Impeller Material:
Cast Iron
Impeller Type:
Vortex
Cord Length:
20′ (6 m)
Certificate: CSA – UL
