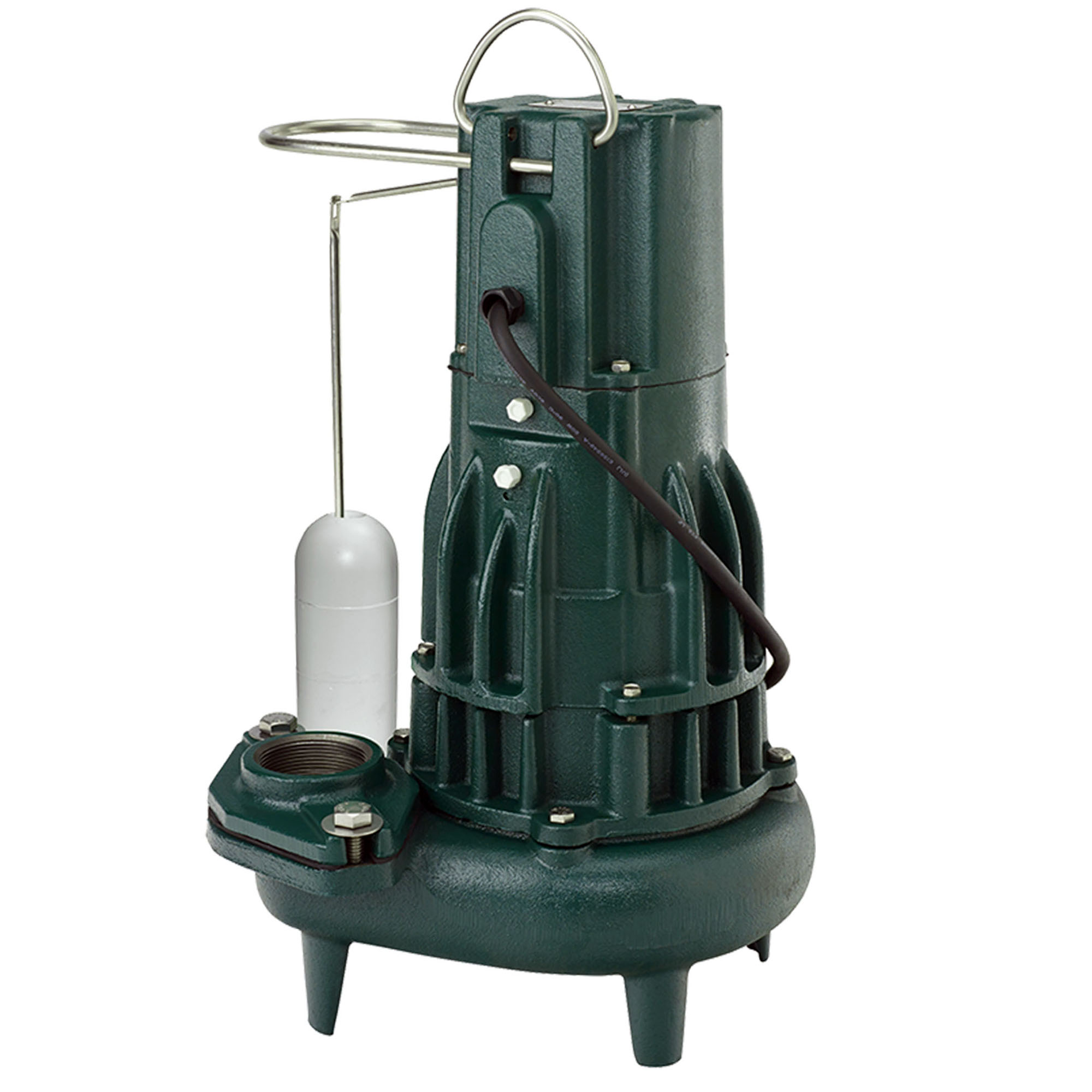

Our automatic Model M282 Sewage Pump is designed to transfer raw sewage or stormwater in lift station applications.  The Model 282 is built with a non-clogging vortex impeller allowing it to pass 2″ spherical solids.  This ensures reliable operation in the toughest sewage applications.

The M282 is built for long term, reliable performance.  The motor housing and adapter are cast iron and include the addition of cast-in place fins to maximize heat dissipation.  Heavy-duty construction and oversized bearings ensure the 282 is able to withstand even the most challenging sewage lift station applications.

Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Features and Benefits

• Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating.
• Automatic pump with a time-tested, reliable, preset, built-in snap action switch that makes for easy installation
• Corrosion resistant cast iron vortex impeller to allow free passage of 2″ spherical solids which prevents clogging and increases reliability
• Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time
• Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
• Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
• Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
• 100% Factory Tested – every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
• Comes with a 1-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product

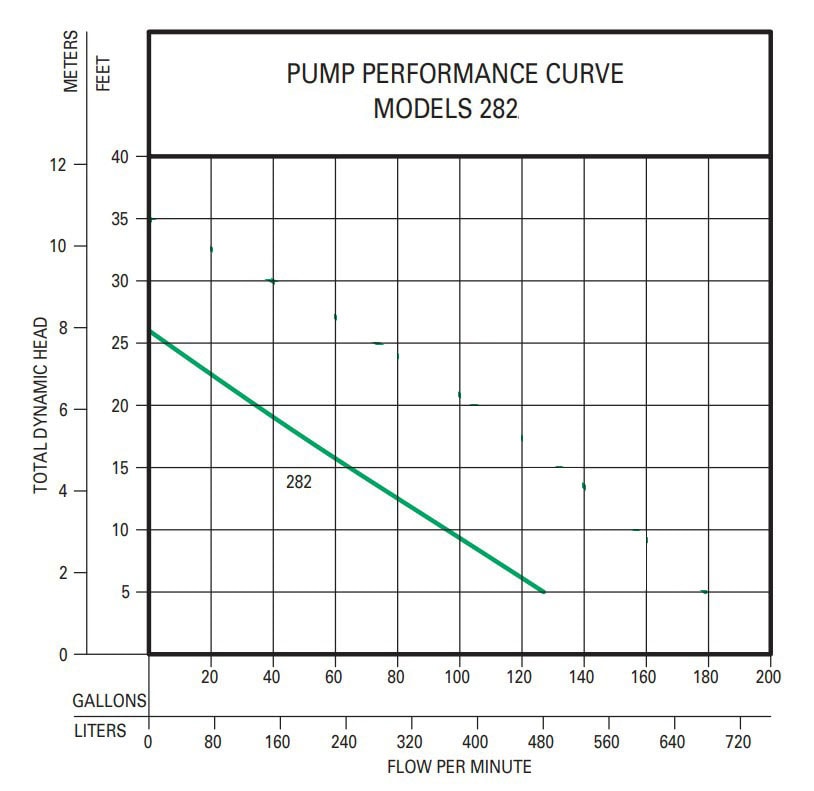

Product Curve

Product Materials and Dimensions

Product Specifications
