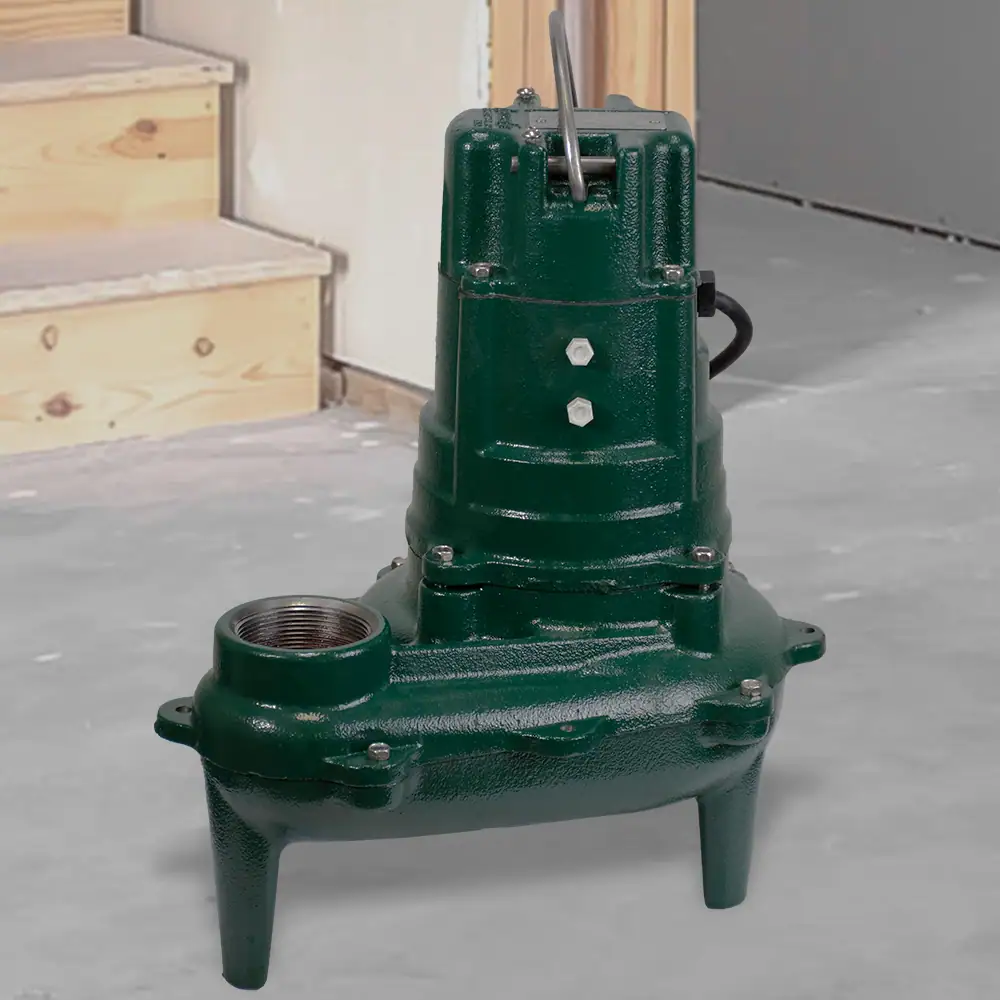

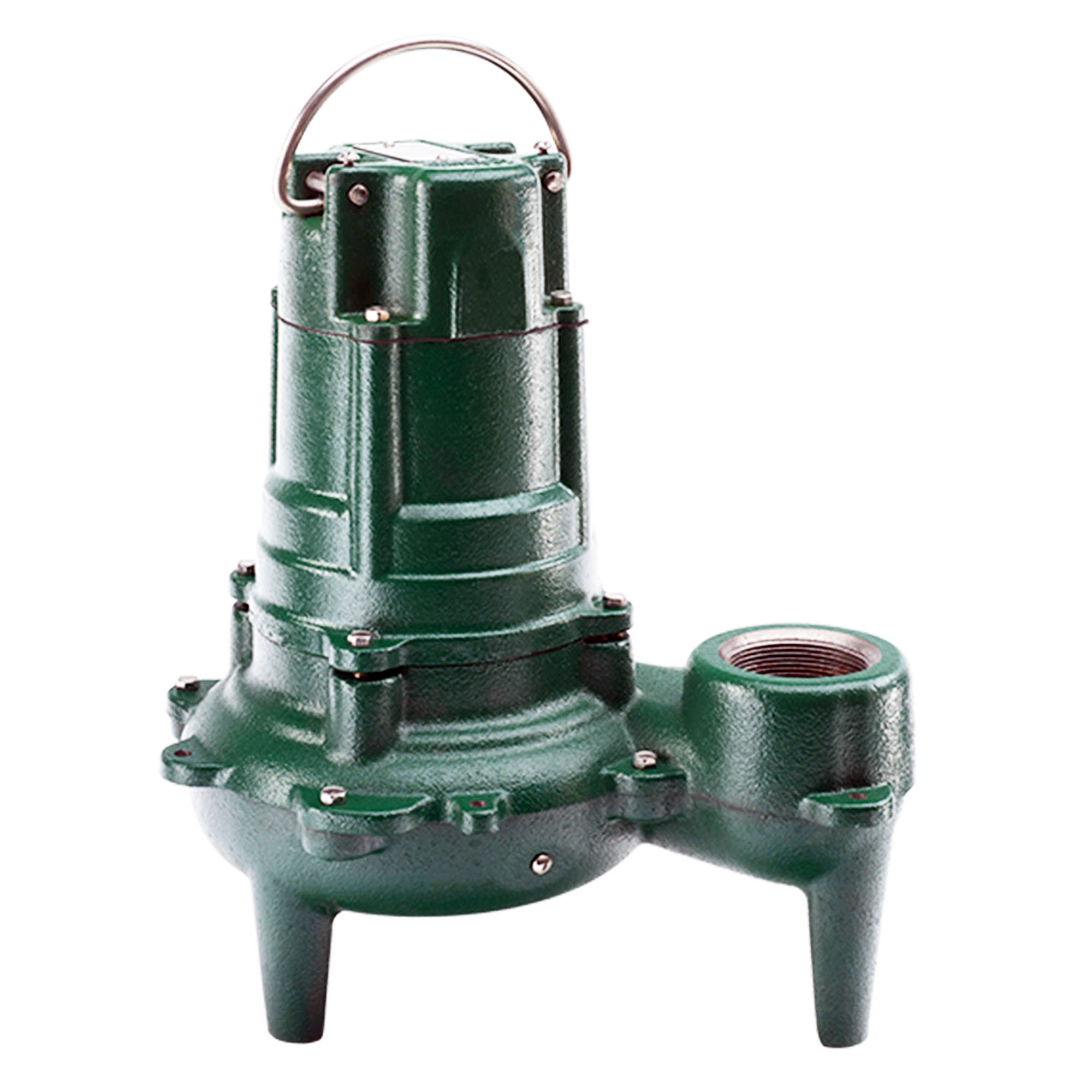

Model N267 Sewage Pump with a is designed to remove raw sewage and wastewater in sewage ejector applications. The professional-grade, 1/2 HP N267 is a time-tested and reliable sewage pump.  Known as the “Waste-Mate,” the N267 is a nonautomatic pump requiring a piggyback float switch or control panel for operation.  Either option allows you to set the on and off point of the pump in the field.

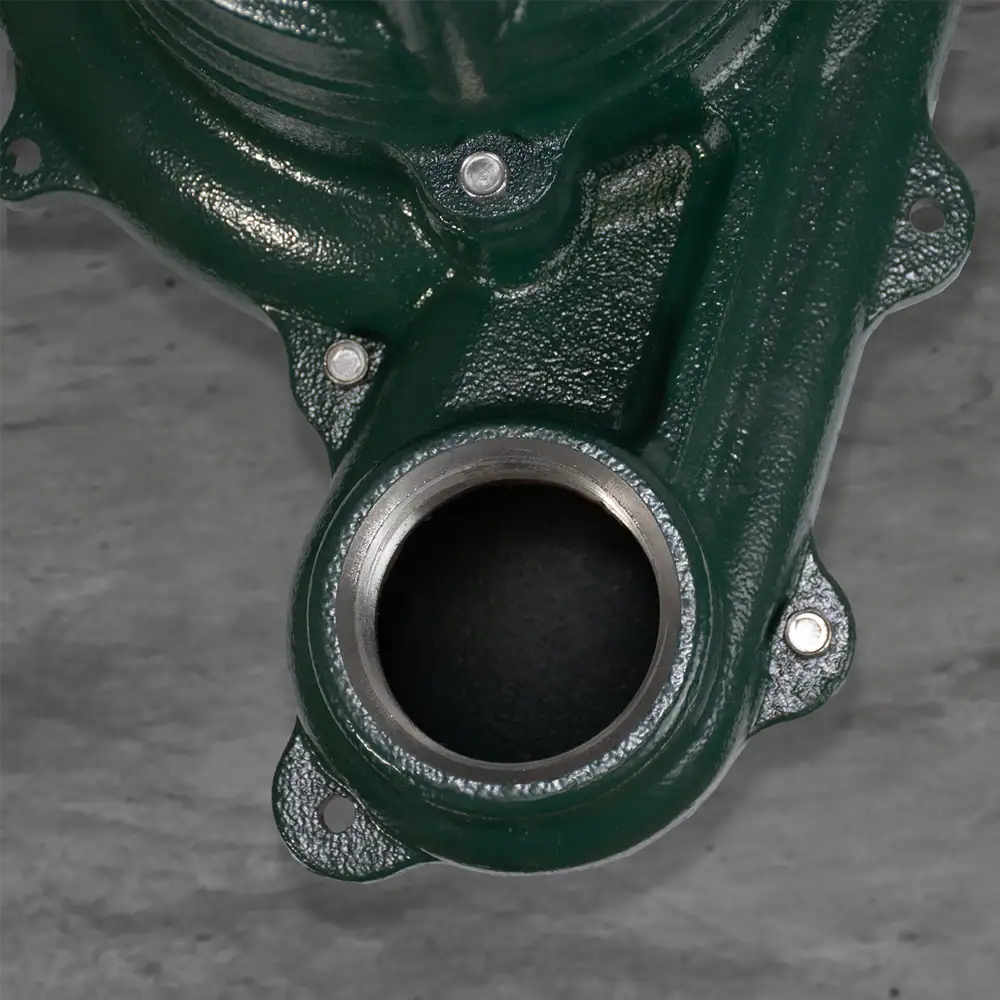

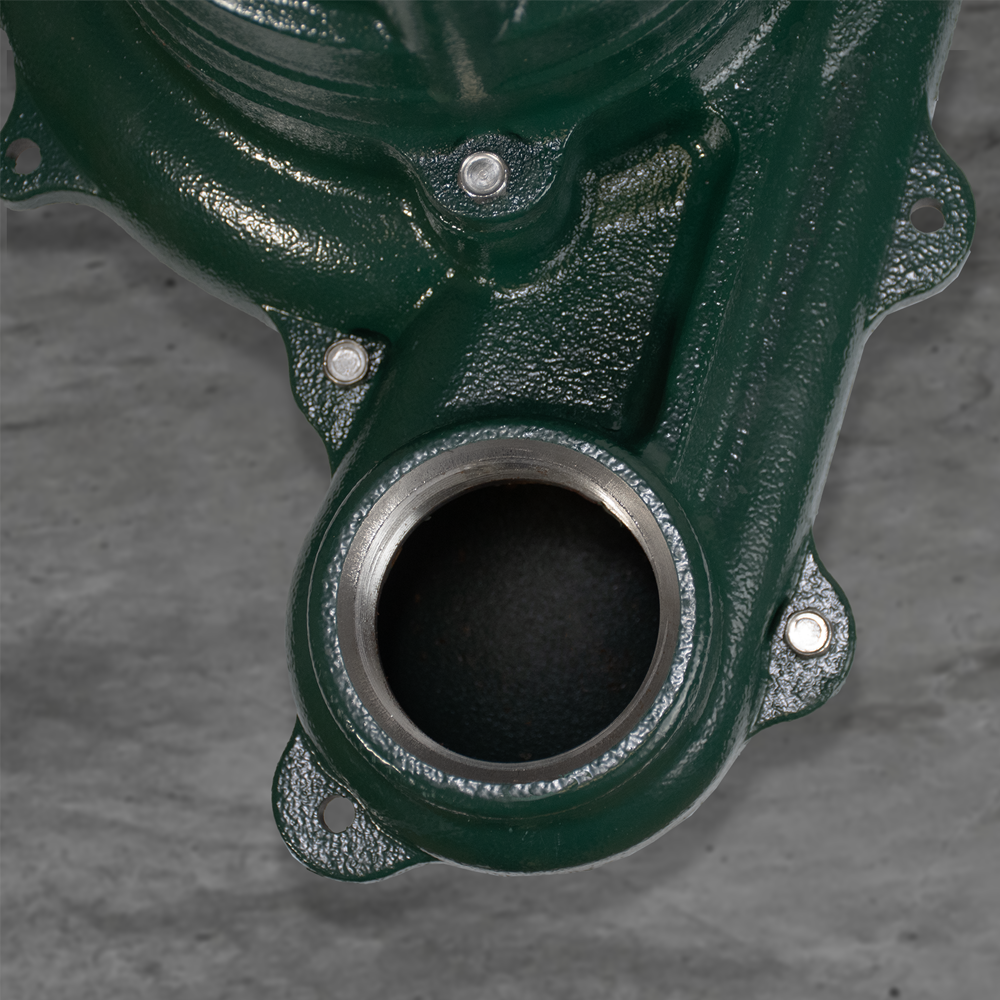

The pump’s vortex impeller allows it to pass 2″ spherical solids.  The impeller’s clearance in relation to the pump housing allows water and solids to pass freely through the pump.  This combination of design features lessens the chance of clogging and downtime.

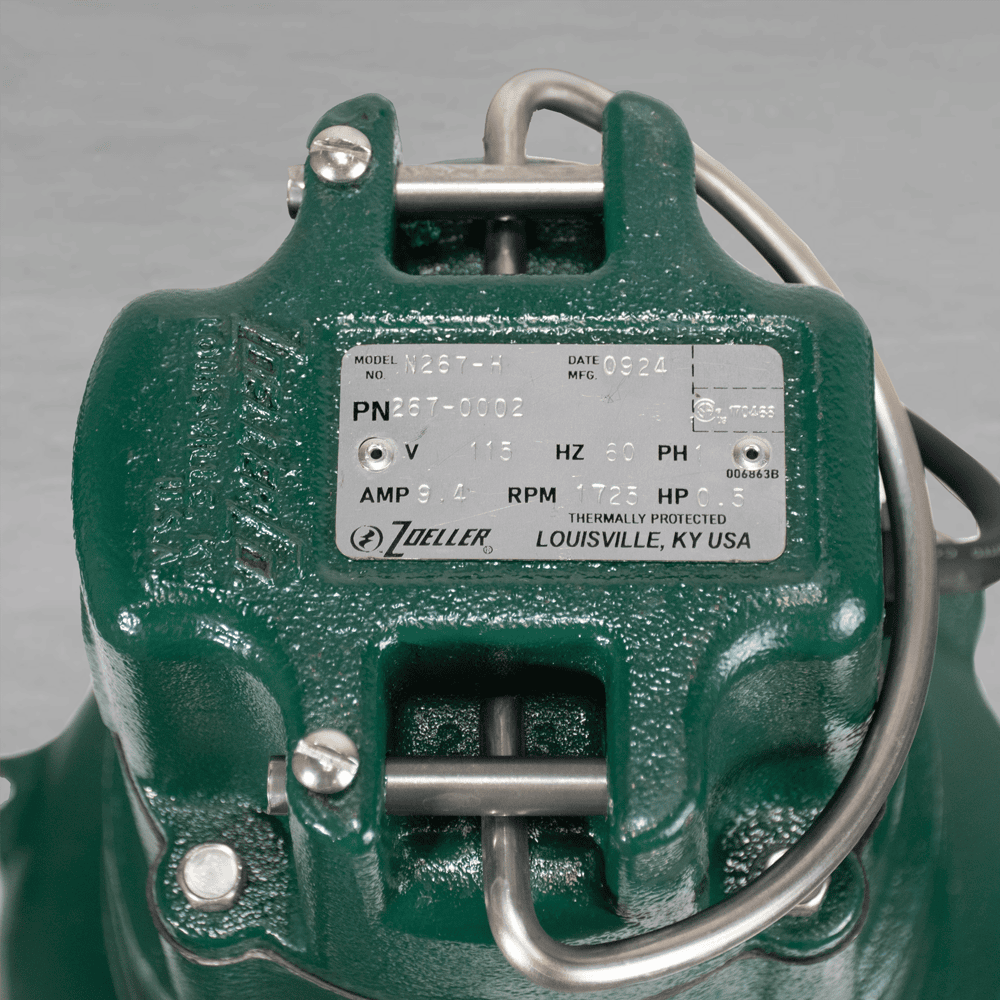

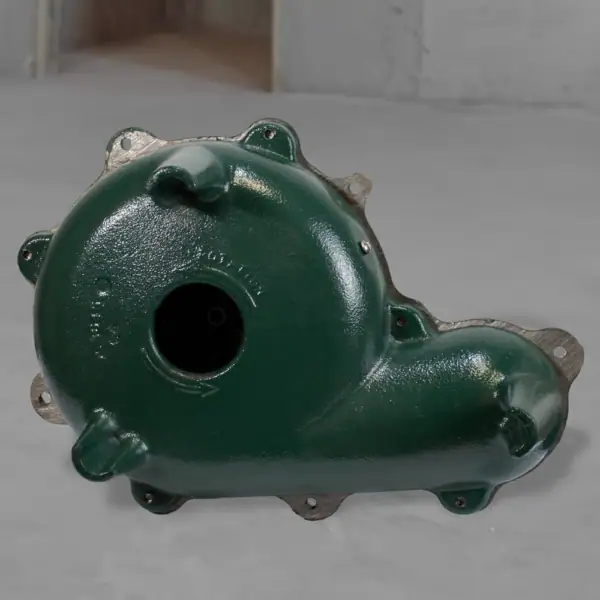

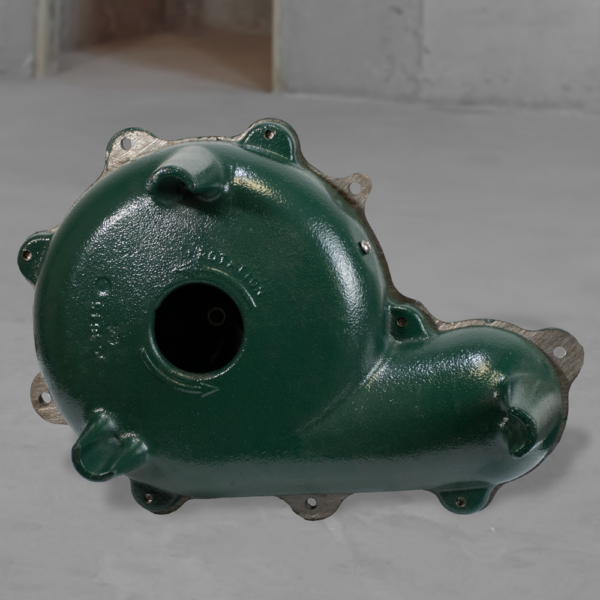

The Model 267’s motor housing, pump housing, and base are each constructed of cast iron.   The pump’s identification tag, handle, switch and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 267 is able to withstand the most demanding sewage ejector applications.

Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Features and Benefits

• Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
• Nonautomatic pump (Piggyback variable level float switch available separately)
• Corrosion resistant engineered plastic vortex impeller to allow free passage of 2″ spherical solids which prevents clogging and increases reliability
• Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
• Stainless steel screws, guard, handle and hardware to prevent rust and corrosion over the life of the pump
• 100% Factory Tested – every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
• Comes with a 3-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
