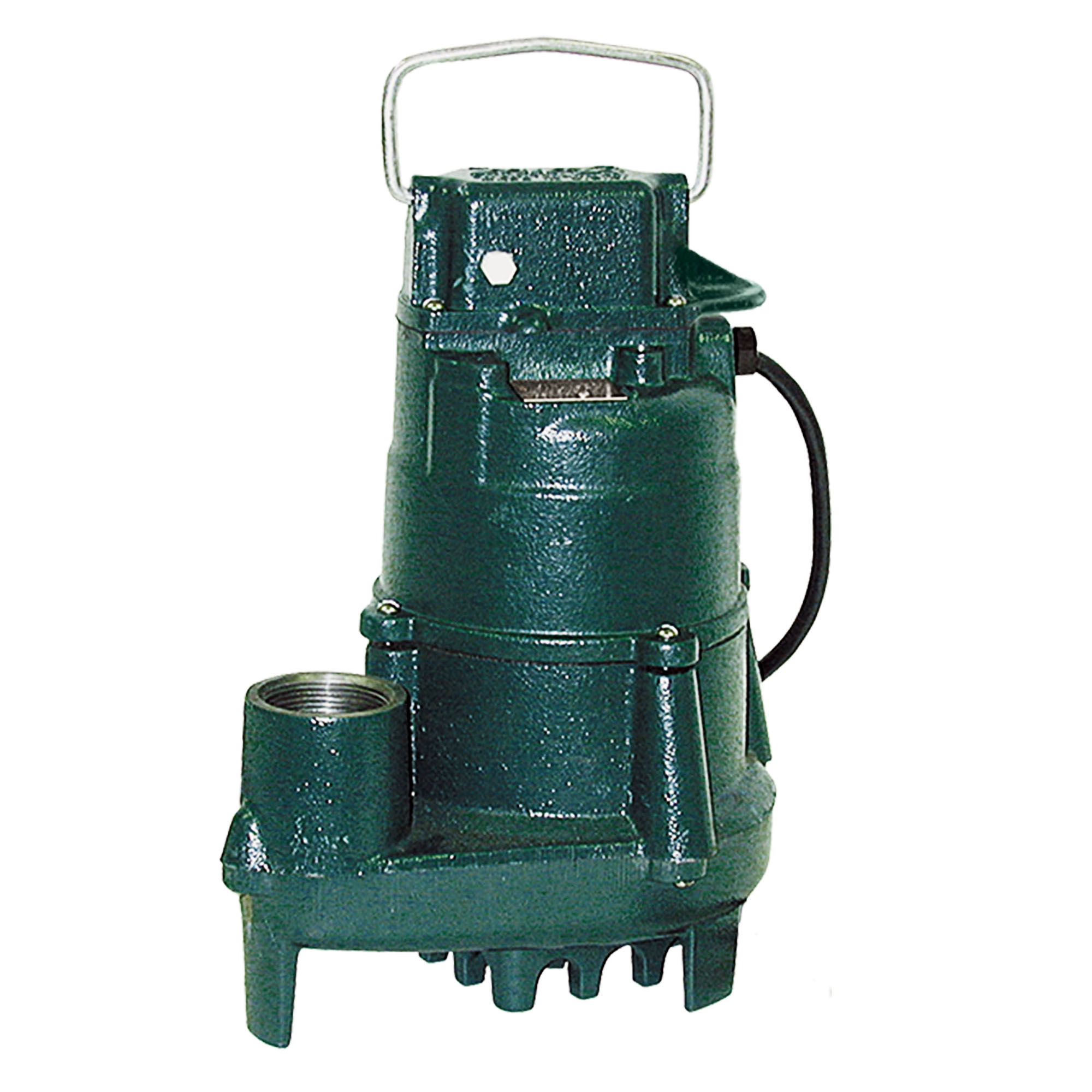

The 4/10 HP Model BN152 nonautomatic Effluent Pump with a variable level float switch is designed to pump sewage effluent in septic systems. It is constructed of cast iron with a durable powder-coated epoxy finish to reduce corrosion, making it ideal for most septic system pump tanks. The Model N152 works well in residential and light commercial applications and is a desirable choice for longevity. Backed by a three-year warranty, every pump is submerged and water tested to provide years of trouble-free performance.
Features and Benefits
- Oil filled motor optimizes heat dissipation which prevents the pump from overheating during extended-use occurrences
- Nonautomatic pump with piggyback variable level float switch, which allows you to adjust the on / off level for optimal runtime
- Built with an engineered plastic vortex impeller to allow free passage of 3/4” spherical solids to prevent the potential for clogging
- Powder-coated epoxy finish provides corrosion-resistance and extends pump life in harsh environments
- Stainless steel screws, bolts, and handle to prevent rust and corrosion even when installed in an elevator sump pump application
- 100% Factory Tested – every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
- Comes with a 3-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
Product Curve
Product Dimensions
Product Specifications
Type: NonAutomatic
Weight: 39 lbs
Dimensions: Height 16.5 in x Width 11 in x Length 14 in.
Horsepower: 4/10 HP
Voltage: 115 V
Phase: 1 Ph
Amps: 8.5
Hertz: 60 Hz
RPM: 3450
Discharge: 1-1/2″ NPT
Solids Handling: 3/4″ (19 mm) spherical solids
Impeller Material: Engineered Plastic
Impeller Type: Vortex
Cord Length: 20′
Certificate: CSA – UL
Product Material
