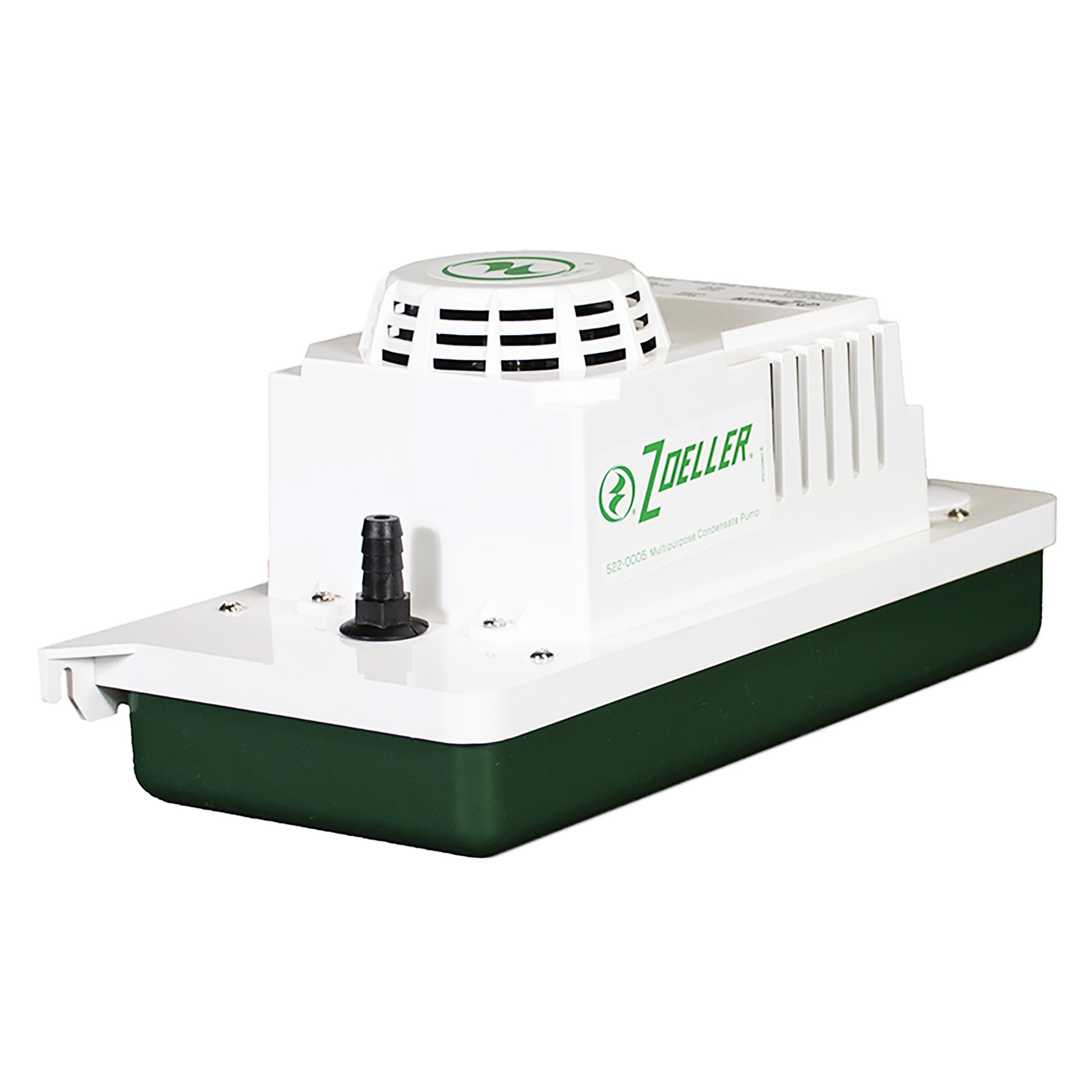

Our Model 522 Low Profile Condensate Pump automatically removes unwanted condensate from air conditioning systems, condensing furnaces, dehumidifiers, ice makers, water coolers and other equipment where condensation may be present.  It is our smallest unit when it comes to condensate removal applications.  The low profile of the Model 522 is an important feature when vertical space is a constraint.  Being only 5-1/8″ tall allows it to fit in tight spaces.

The 1/4-gallon capacity and 2 inlet options of our Model 522 make it an ideal choice for a wide variety of condensate applications.  It has a built-in safety switch and check valve.  The Model 522 will automatically shut down in the event of an internal malfunction.  Additionally, it has leads that can be used with secondary safety switches.

The ideal choice for your space constrained condensate removal needs or when replacing a failed pump.  Peace of mind right-out-of-the-box.

Features and Benefits

• 1/4 gallon (1 liter) capacity
• Two inlet options
• Small footprint 5″ x 1-1/8″ x 12″
• Built-in safety switch and check valve
• 2-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind

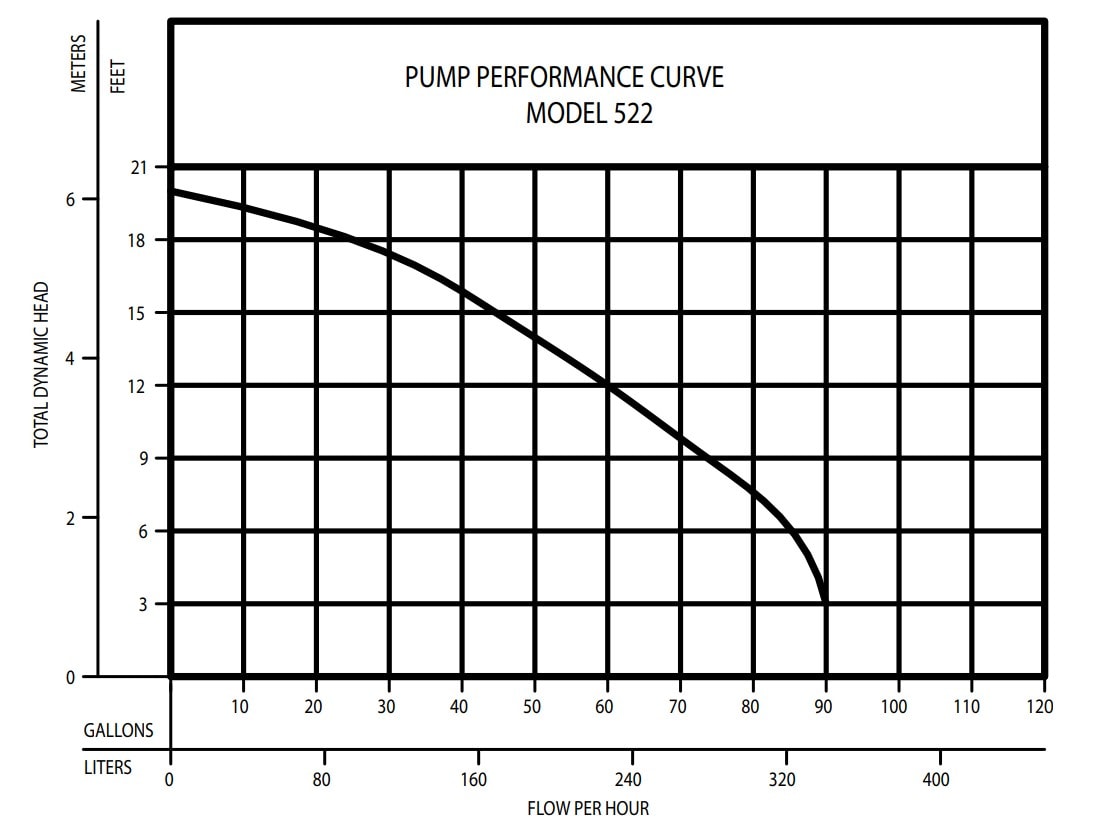

Product Curve

Product Specifications
