Description

Technical Data

Product Details

The Model 105 Drain Pump is an ideal choice for standard drain pump applications when a gravity drain is not accessible.  The drain pump eliminates the need to break concrete to install a sink drain.  It is often used when adding a kitchen or wet bar in an unfinished basement.  It allows you to pump the unwanted water to any discharge point desired.

Our drain pump is also used to handle the wastewater from coffee bars, utility sinks, wet bar sinks, ice machine discharge, dishwashers, air conditioning condensate, and much more.  Our popular Model 105 Drain Pump is constructed with a polypropylene, corrosion-resistant basin and comes with 3/10 HP submersible sump pump capable of passing solids up to 1/2-inch.  For added convenience, the check valve is included.

The discharge, vent, and inlet openings are already built into the basin so installation is quick and straight forward.  The pump can pass laundry lint, making this drain pump model ideal for laundry tray pumps.  All pumps utilize a non-clogging vortex impeller, a reliable system that reduces the chances of clogging and backups.

Peace of mind right-out-of-the-box!  Less hassle.  Less mess.

Features and Benefits

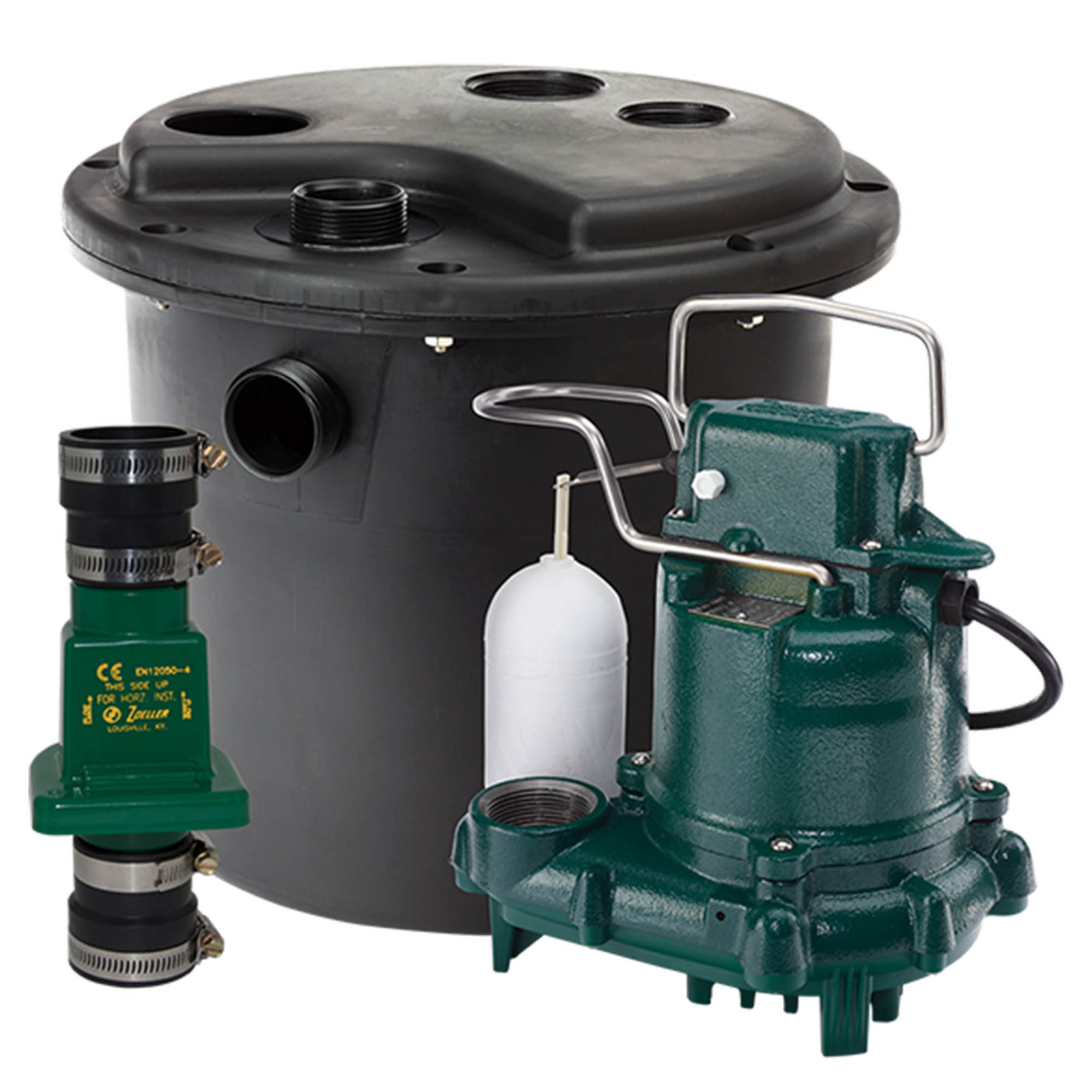

• System includes automatic 3/10 HP automatic pump, tank assembly, and check valve
• Non-clogging vortex impeller capable of passing 1/2″ spherical solids reducing the potential for clogs
• 11-3/4″ x 12-1/2″ basin with a small footprint so it is easily installed in a base cabinet under the sink, beneath a utility sink, or in any compact area
• Cover includes: 1-1/2″ discharge, 1-1/2″ inlet, 2″ NPT vent and cord seal opening
• 3-year limited warranty on pump provides you with peace of mind right out of the box

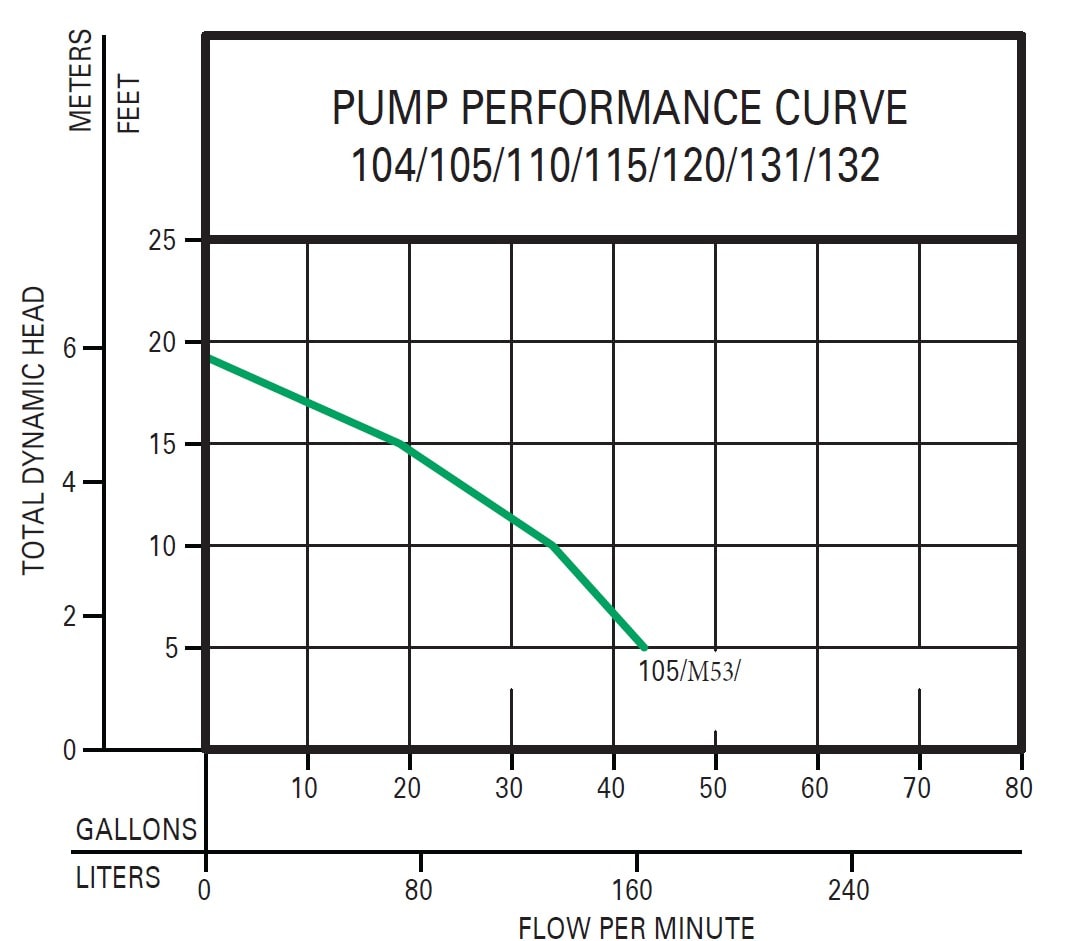

Product Performance curve

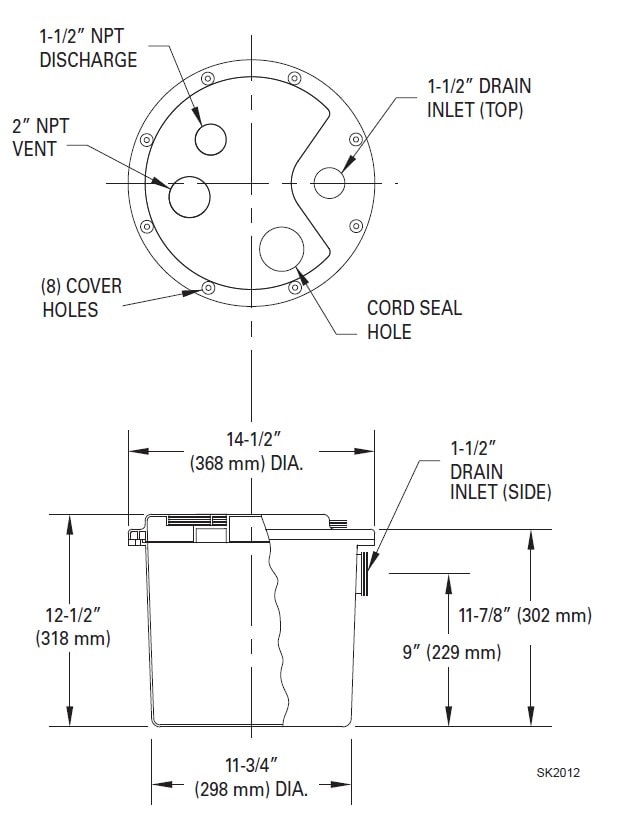

Product Dimensions

Pump Material
