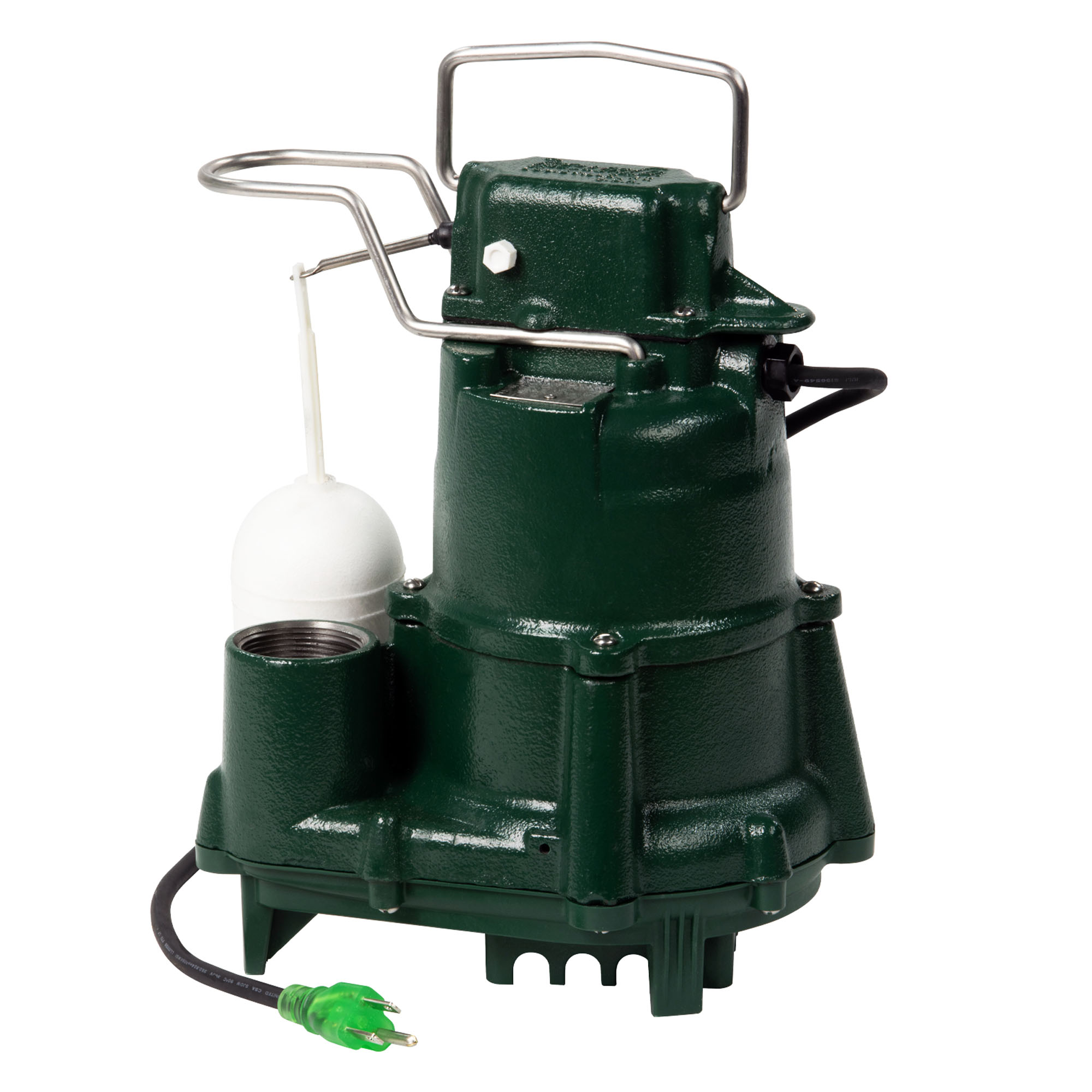

The Model M98 Sump Pump is designed to remove unwanted groundwater in basement sump applications. The professional-grade, 1/2 HP M98 is the industry standard when you need a higher flow sump pump.  Known as the “Flow-Mate” M98, it is a fully automatic float-operated sump pump. This pump comes standard with the Zoeller LED Plug that allows you to check for power at a quick glance. The white polypropylene float switch is solid so it cannot become waterlogged. This ensures that it is always buoyant and able to turn the pump on when necessary.

The Model 98 is a cast iron sump pump, with the switch case, motor housing, and pump housing all constructed of cast iron. The corrosion resistant engineered plastic vortex impeller has a smooth surface allowing water and solids to pass freely through the pump. The pump’s identification tag, float guard, handle, switch arm, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 98 is able to withstand demanding, high flow basement sump applications.

Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Features and Benefits

• Comes standard with the Zoeller LED Plug that allows you to check for power at a quick glance
• Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
• Automatic high flow sump pump with a time-tested, preset, built-in snap action switch that makes for easy installation

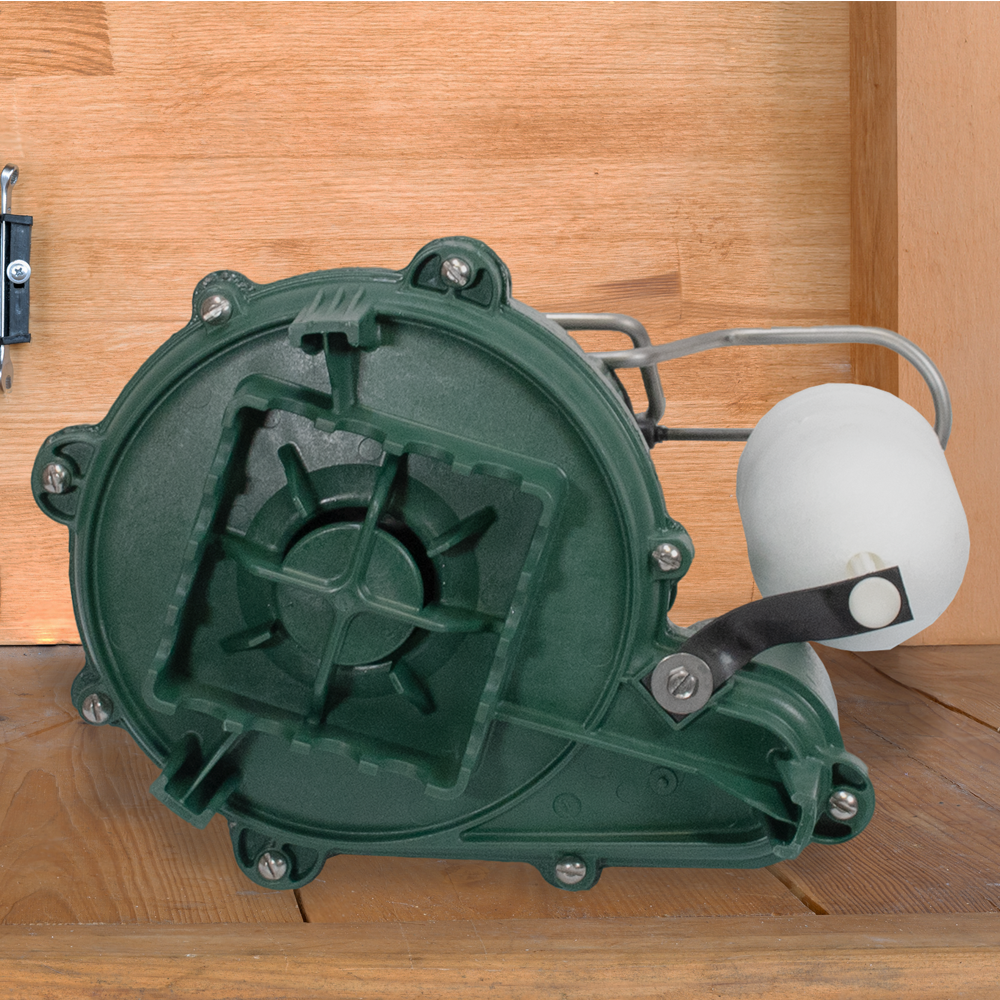

• Corrosion resistant engineered plastic vortex impeller to allow free passage of solids which prevents clogging and lessens downtime
• Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time

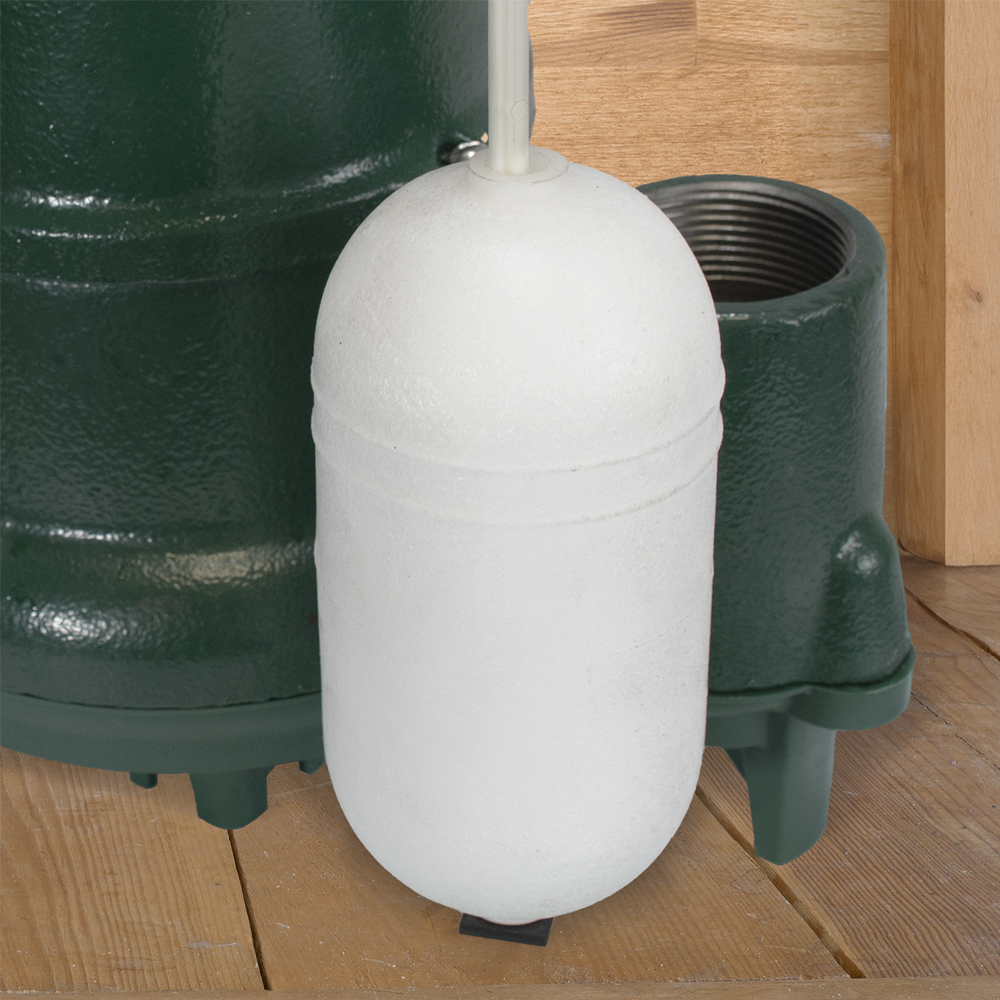

• Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times

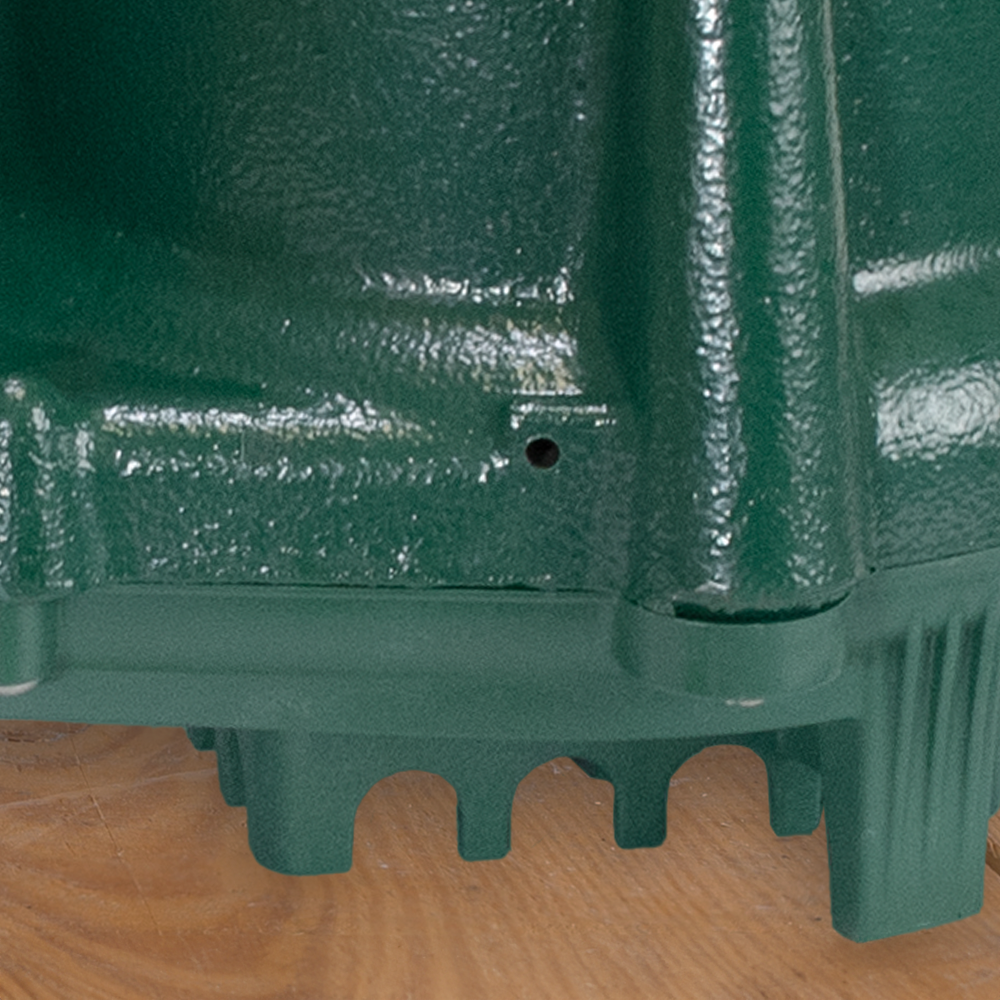

• Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments

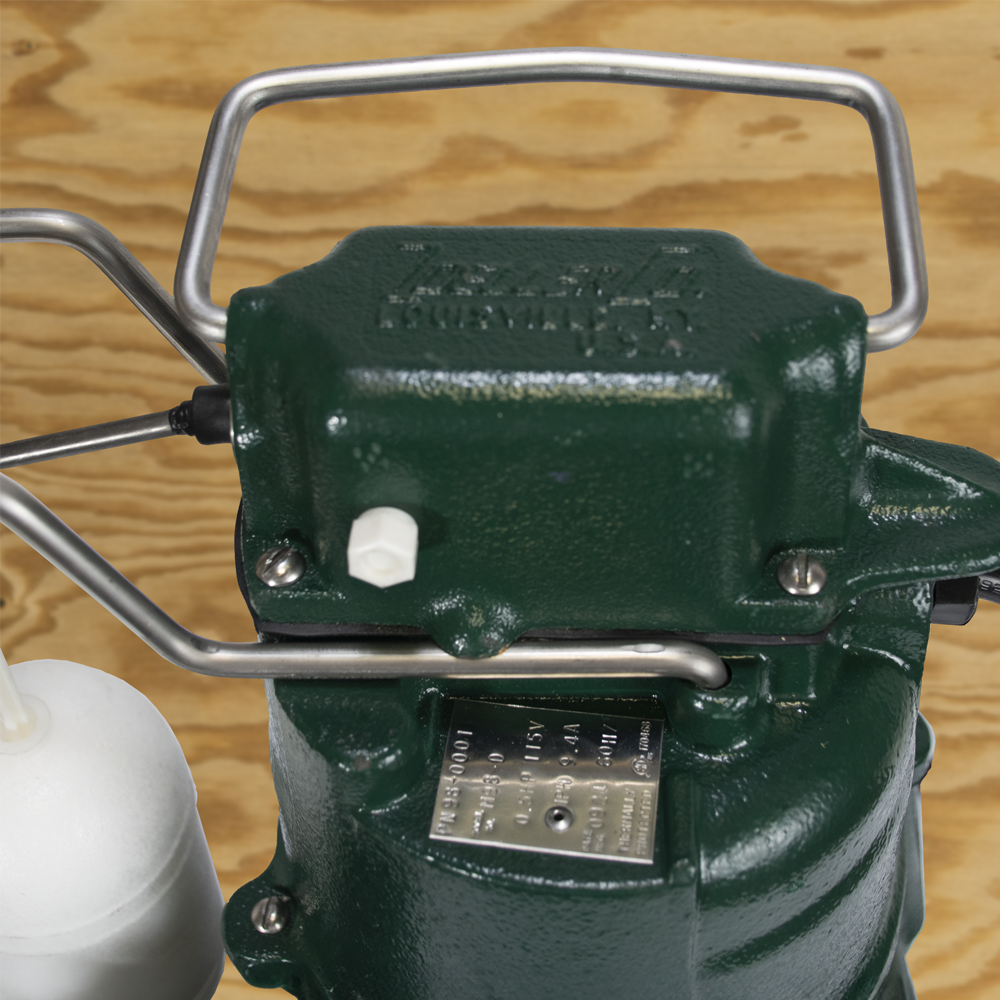

• Stainless steel screws, switch arm, handle and hardware to prevent rust and corrosion over the life of the pump
• 100% Factory Tested – every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
• 3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you protection over your investment and the peace of mind you expect in a quality product

Product Curve

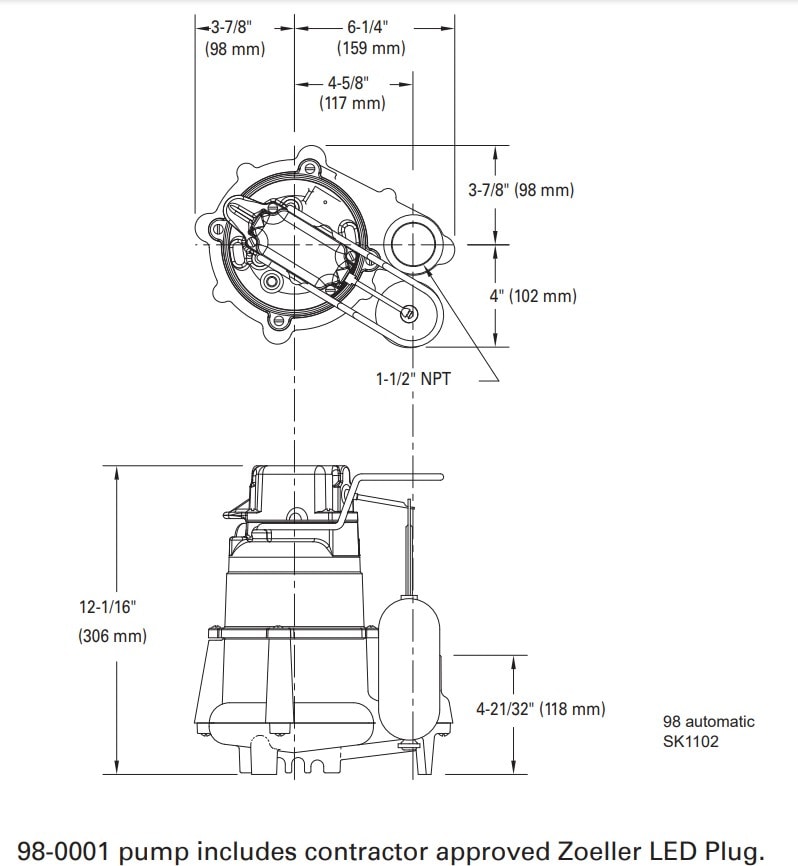

Product Dimensions

Product Specifications
