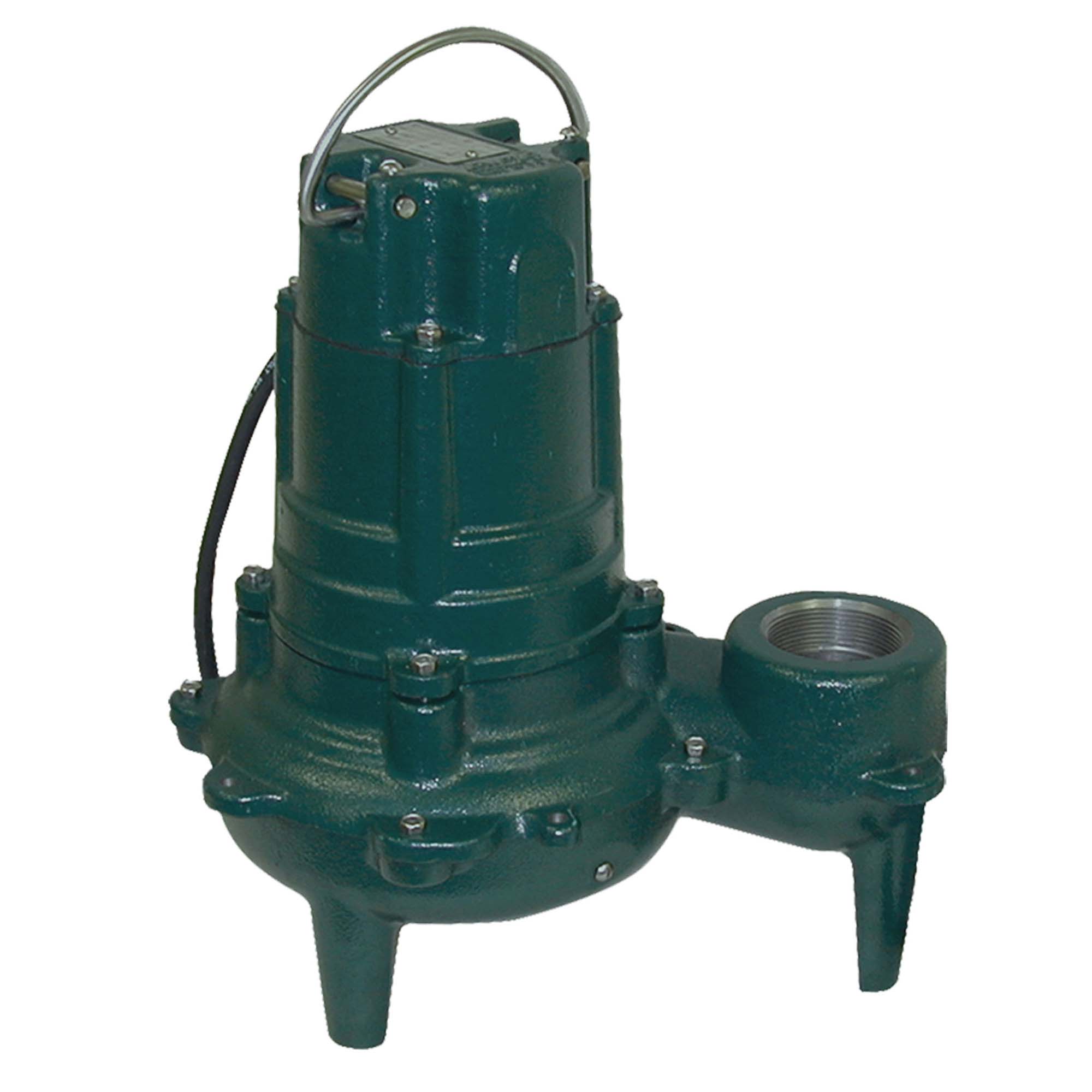

Our Model N270 Sewage Pump is designed to remove raw sewage or effluent in residential sewage or septic system applications. The professional-grade, 1 HP Model 270 is known for its dependability.  The N270 is a nonautomatic pump requiring a piggyback float switch or control panel for operation.  Either option allows you to set the on and off point of the pump in the field.  This is ideal in an application with a deep sump pit or pump tank.

The Model 270’s motor housing and pump housing are each constructed of cast iron.   The pump’s identification tag, handle, and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 270 is able to withstand the demands of residential sewage ejector applications.

Features and Benefits

• Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
• Nonautomatic pump (Piggyback variable level float switch available separately)
• Corrosion resistant engineered plastic vortex impeller to allow free passage of 2″ spherical solids which prevents clogging and increases reliability
• Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
• Stainless steel screws, handle, and piggyback switch pipe clamp to prevent rust and corrosion
• 100% Factory Tested – every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
• Comes with a 1-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product
