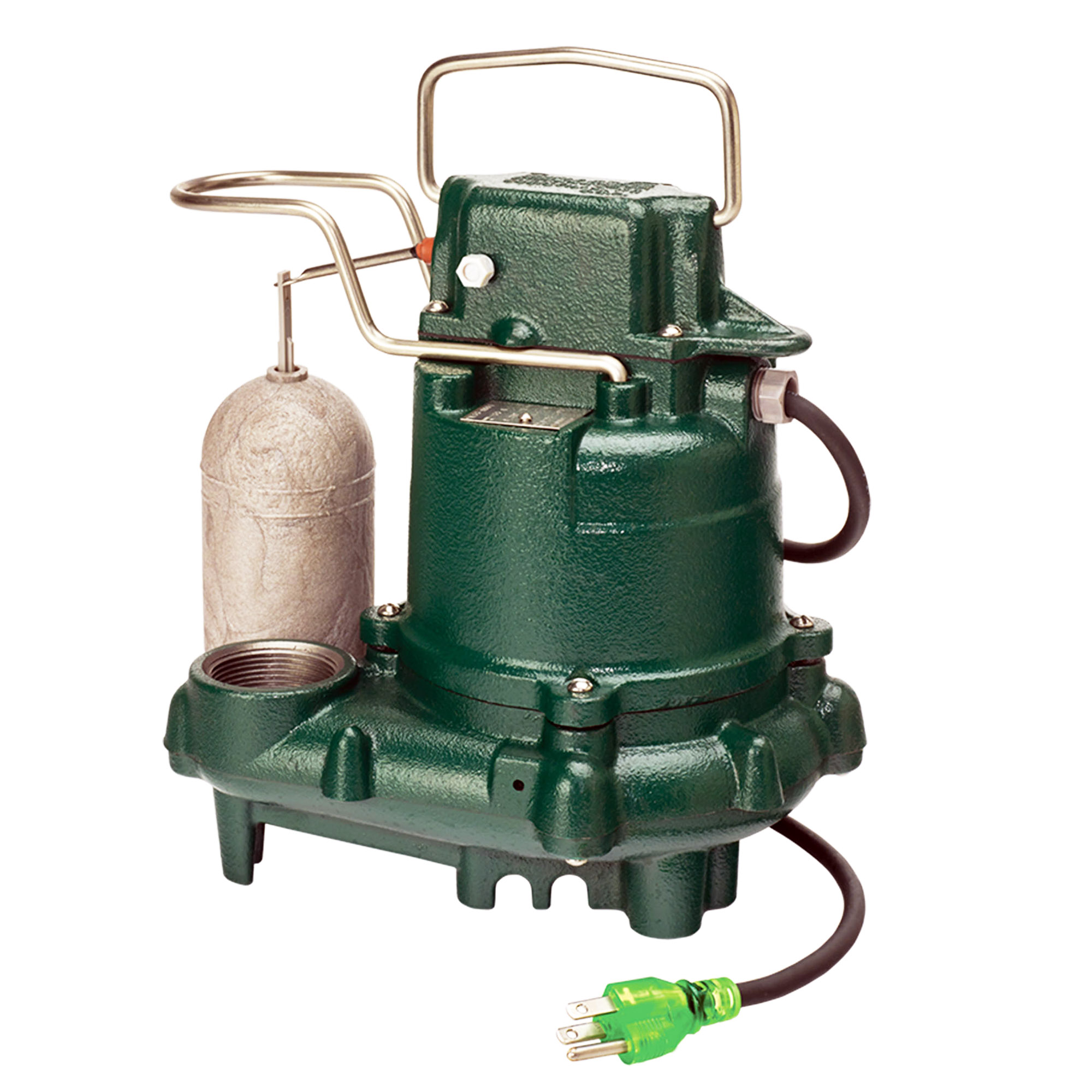

The Model M63 Sump Pump is a fully automatic 3/10 HP sump pump for use in basement sump applications. This pump is packed with features, including the most advanced switch technology available. The green Zoeller LED plug allows you to see that it has power even when it is installed in a dark basement or crawl space.

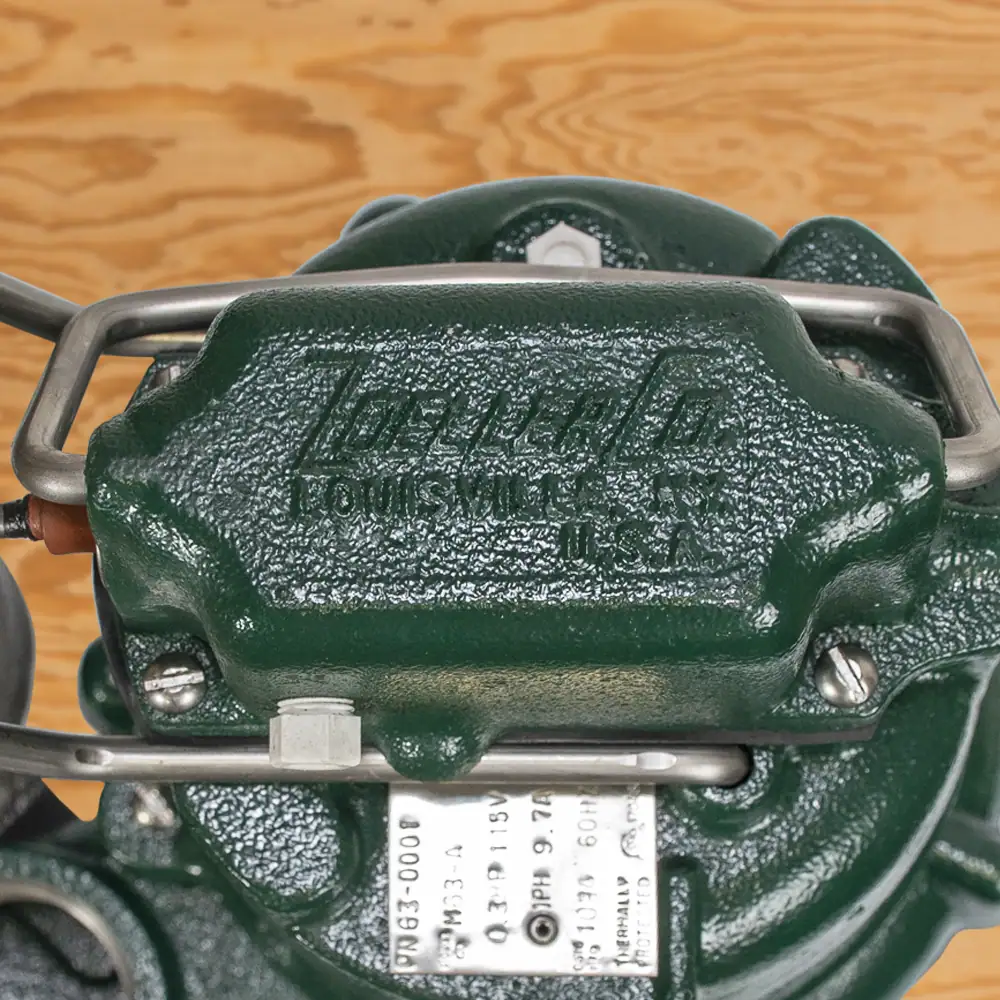

By design, the solid float cannot become waterlogged, so it is always buoyant and able to turn the pump on when necessary. The identification tag, float guard, handle, switch arm, and hardware are made of high-quality corrosion resistant stainless steel.
Every pump is submerged in water and tested to its published performance curve. Designed to deliver peace of mind right out of the box.
Features and Benefits
- Comes standard with the Zoeller LED Plug that allows you to check for power at a quick glance

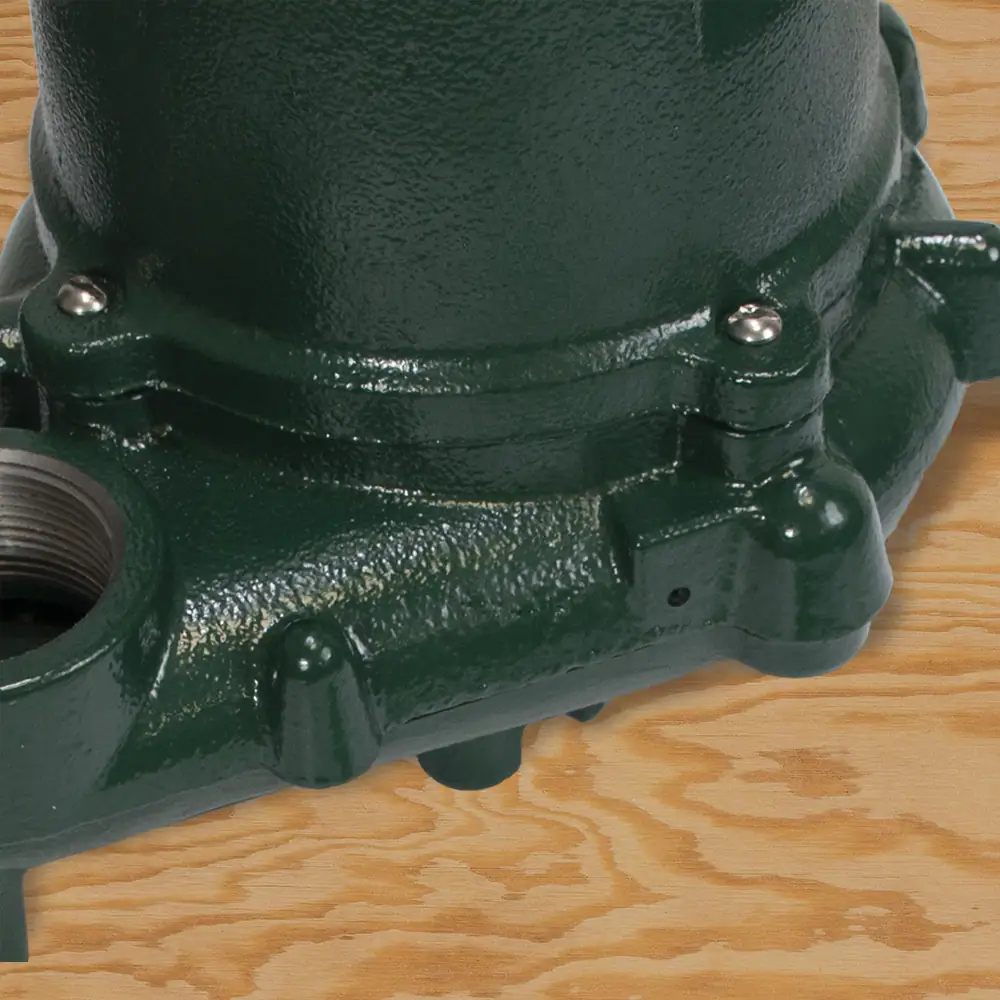

- Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
- Automatic pump with a time-tested, reliable, preset, built-in snap action switch that makes for easy installation
- Cast iron vortex impeller to allow free passage of solids which prevents clogging and lessens downtime
- Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time

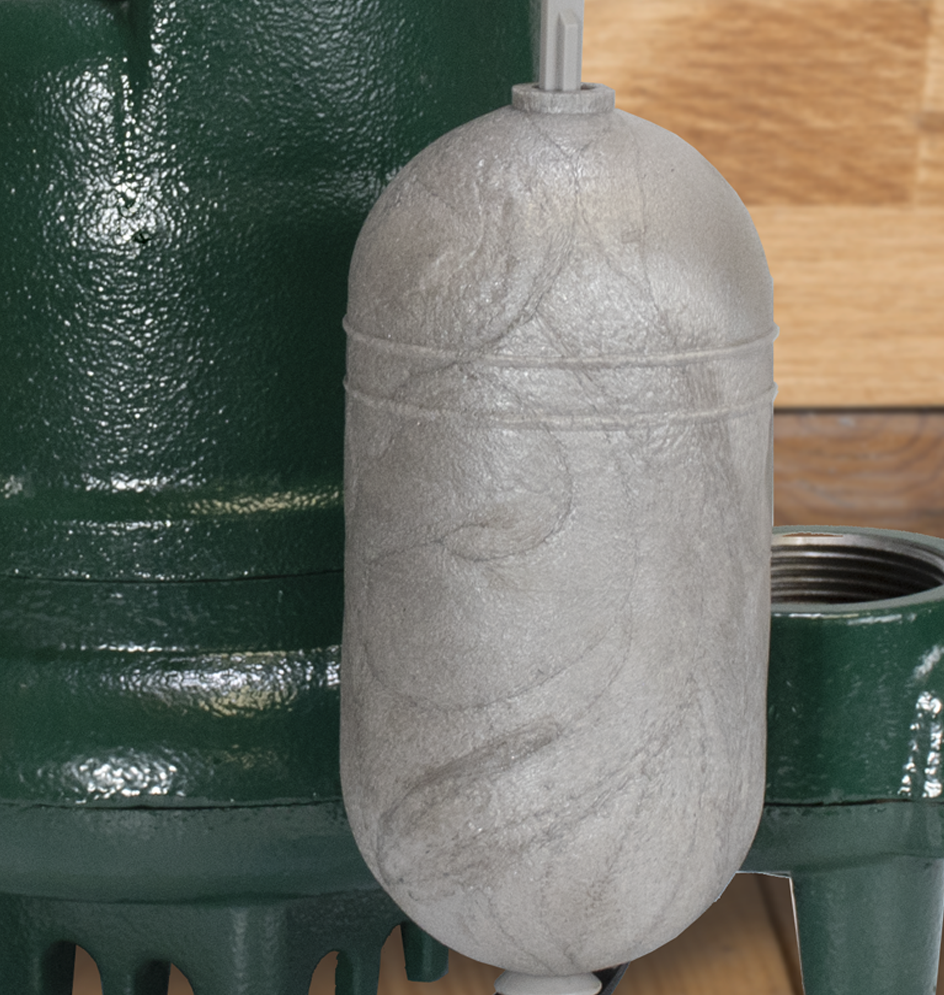

- Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
- Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments

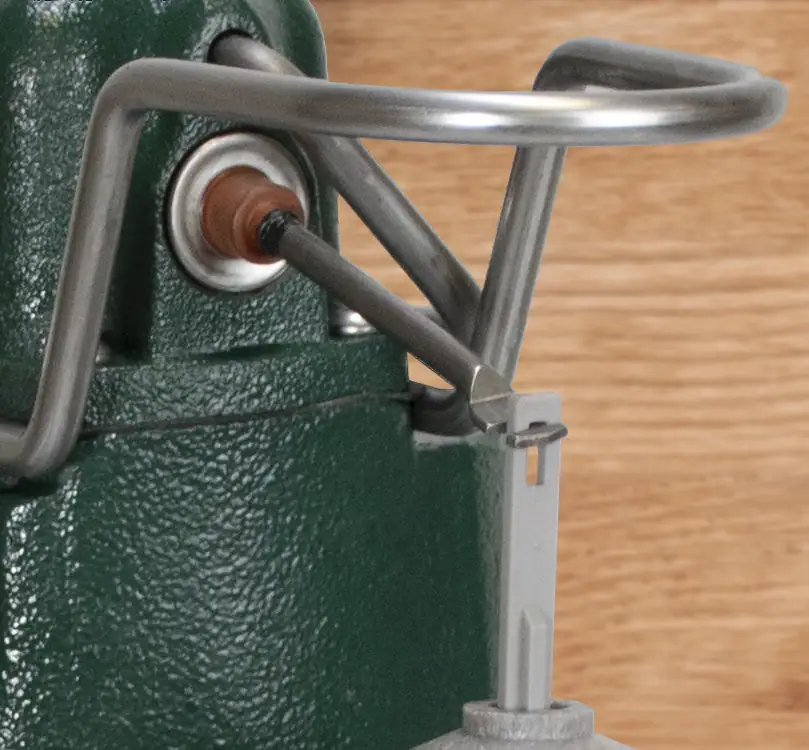

- Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
- 100% Factory Tested – every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
- Comes with a 5-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product

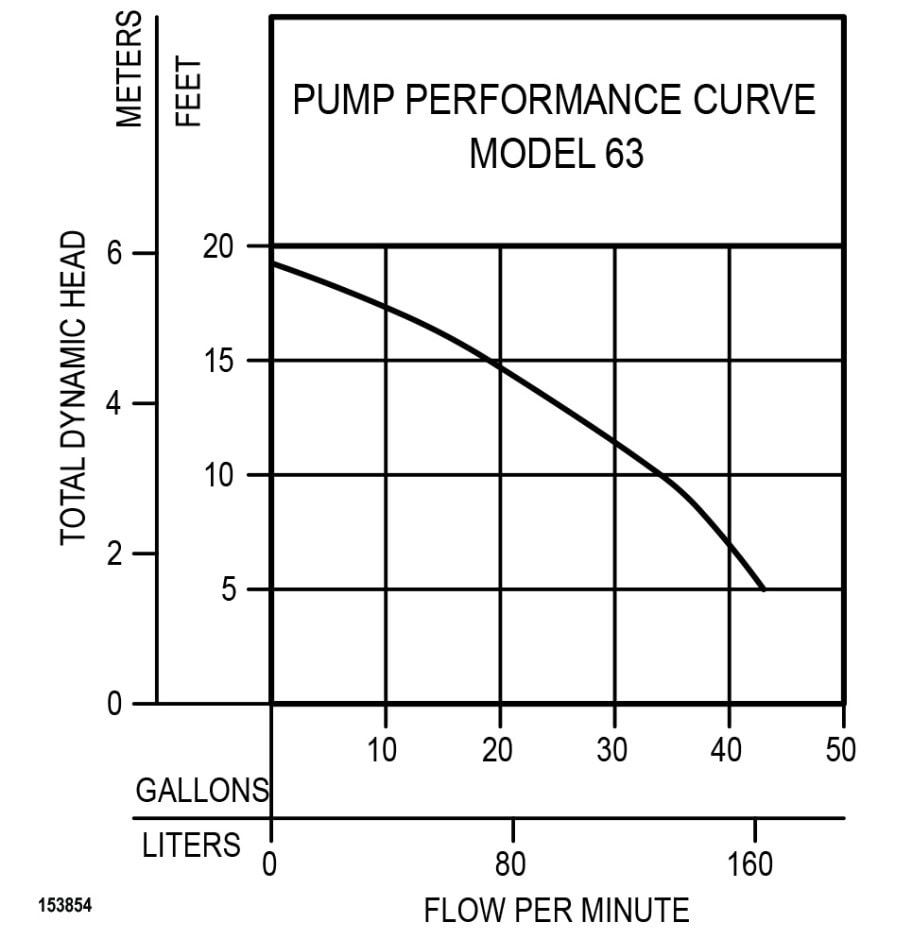

Product Curve
Product Dimensions
Product Specifications
Type: Automatic
Weight: 23 lbs
Dimensions: Height 10 1/4 in x Width 7 3/4 in x Length 10 1/4 in.
Horsepower: 3/10 HP
Voltage: 115 V
Phase: 1 Ph
Amps: 9.7
Hertz: 60 Hz
RPM: 1550

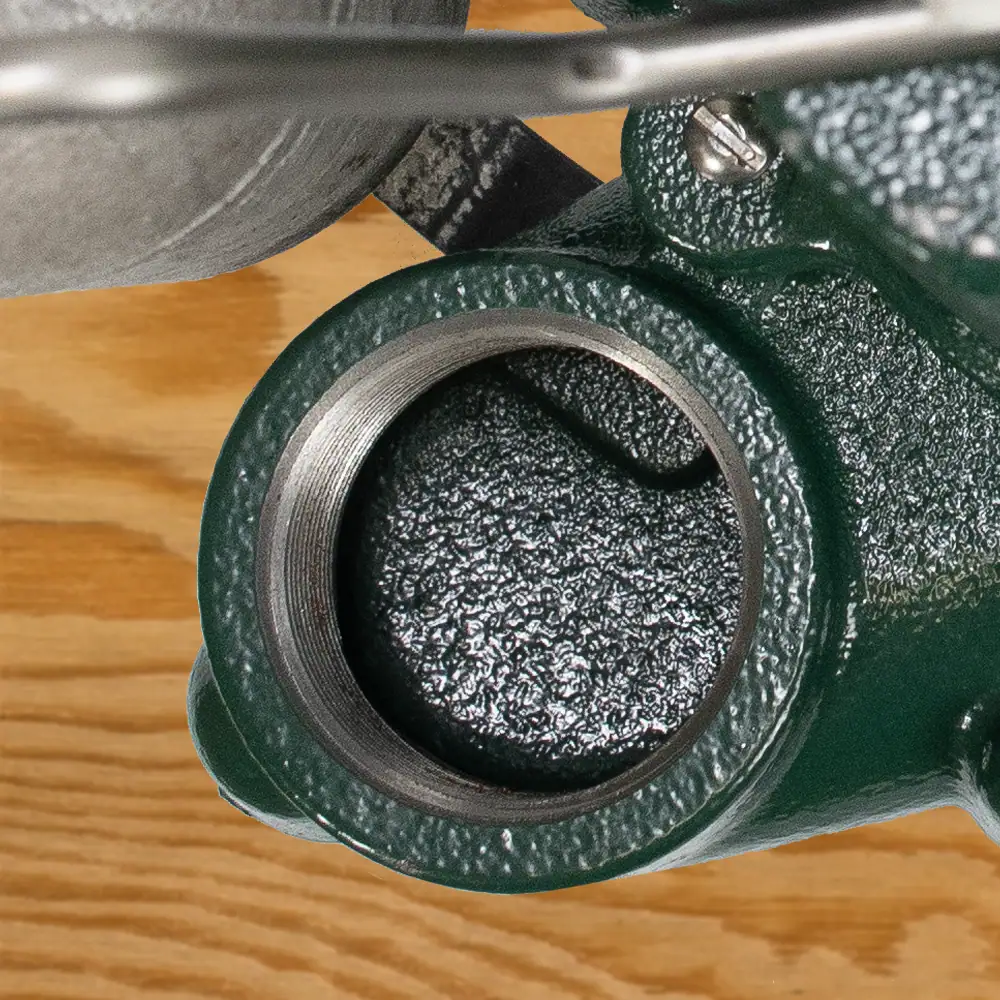

Discharge: 1 1/2″ NPT
Solids Handling: 1/2″ (12 mm) spherical solids
On/Off Points: 7-1/4″ (18.4 cm) / 3″ (7.6 cm)
Impeller Material: Cast Iron
Impeller Type: Vortex
Cord Length: 15′
Certificate: CSA – UL
Product Material
