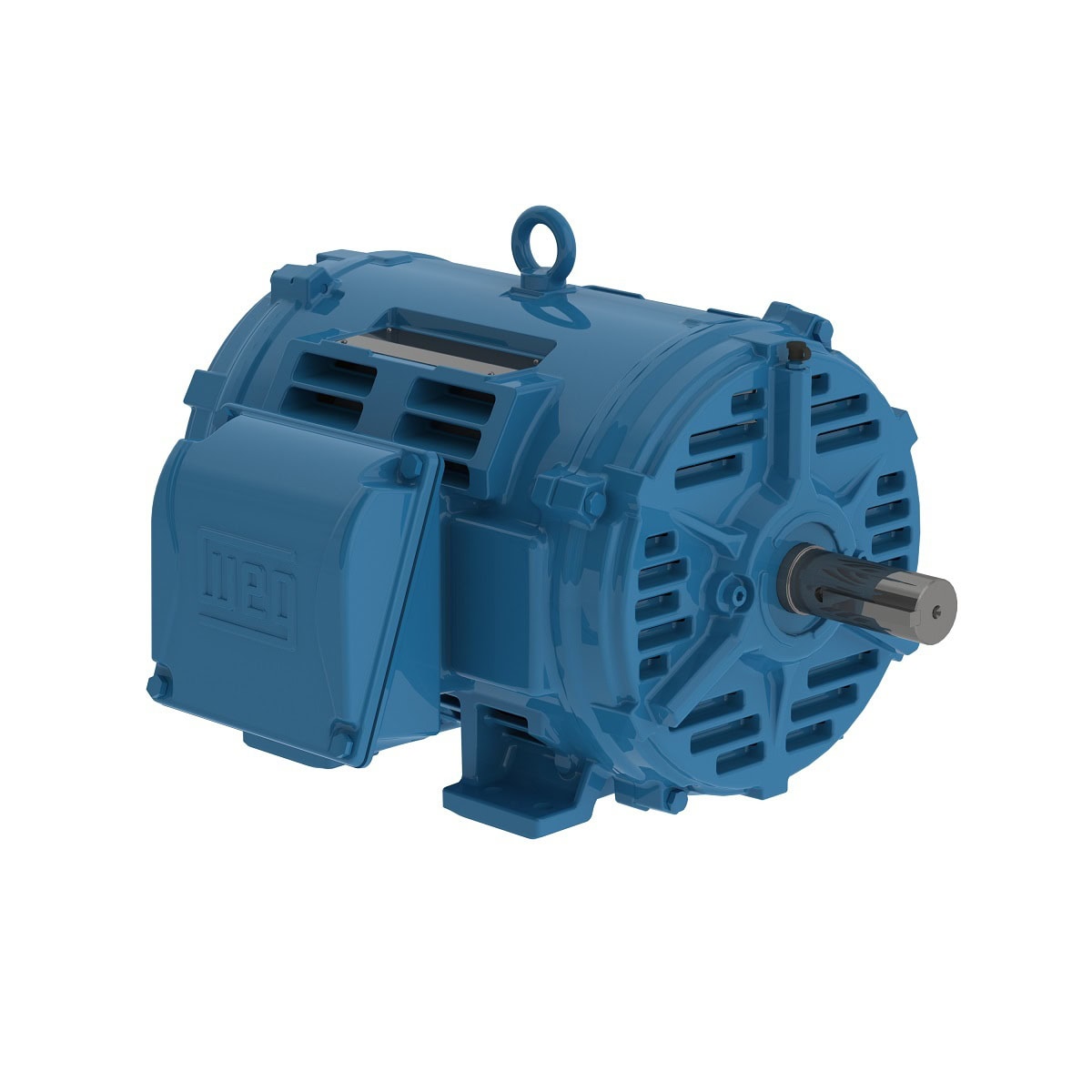

WEG W40 NEMA Premium Efficiency Motor, 25 HP 4P 284T 3Ph 230/460//380 V 60//50 Hz IC01 – ODP – Foot-mounted , Model 02518OT3E284T-W40

Print Product Page
WEG W40 NEMA Premium Efficiency Motor, 25 HP 4P 284T 3Ph 230/460//380 V 60//50 Hz IC01 - ODP - Foot-mounted , Model 02518OT3E284T-W40
SKU: 5160743 Categories: , , , , , , Tags: , ,
SKU 5160743 Categories , , , , , , Tags , ,
SKU: 5160743 Categories: , , , , , , Tags: , ,

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

See Why Thousands of Customers Trust Pump Supermarket

Take a quick look inside our Miami warehouse and daciscover the people, products, and expertise behind every order we ship.

✔ 4,000+ Products in Stock ✔ Fast Nationwide Shipping ✔ Expert Technical Support ✔ Trusted by Thousands of Customers

WEG W40 NEMA Premium Efficiency Motor, 25 HP 4P 284T 3Ph 230/460//380 V 60//50 Hz IC01 – ODP – Foot-mounted , Model 02518OT3E284T-W40

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460V
Number of Poles 4
Degree of Protection IP55
Synchronous Speed 1800 Rpm
Output Rating 25HP
Mounting Foot-mounted
Flange Without
Mounting F-3
Terminal Box Top
Enclosure IC411 – TEFC

UNIT PRICE

$1,922.40

Motor Selection Tool
Not sure this is the correct motor?
Use our Electric Motor Filter to compare HP, voltage, phase, RPM, frame size, enclosure, and mounting options.
Find the Right Motor
In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

!

Important Freight Shipping Notice

Free Freight Shipping: Applies only to commercial addresses with forklift or loading dock. Residential delivery and liftgate services are not included.

Freight Delivery Requirements

This product ships via freight carrier and requires proper unloading equipment.

  • Commercial Address: Forklift or loading dock is required at time of delivery.
  • No Forklift / No Dock: Liftgate service must be added.
  • Residential Address: Residential delivery service is required.
    • Freight Service Pricing:

    • $0 – Free Freight: Commercial address with forklift or loading dock available.

    • $150 – Liftgate Service: Required for commercial locations without a forklift or loading dock.

    • $250 – Residential Delivery Service: Required for all residential deliveries (includes liftgate and residential access service).

Carrier Classification & Responsibility

Carrier Determines Address Type: The freight carrier will classify the delivery address as commercial or residential at the time of booking.
Customer Responsibility: If incorrect delivery information is provided or proper unloading equipment is not available, all additional carrier charges (liftgate, residential reclassification, redelivery, storage, detention, etc.) will be billed to the customer before delivery is completed.

Entering a commercial address without proper equipment does not avoid these charges.

Select required services below if your location is residential or if no forklift/loading dock is available. Final freight confirmation will be required again at checkout.
Add Required Services Below ↓
🚛 Add Liftgate Service – $150 Required if no forklift or loading dock is available 🏠 Add Residential Delivery – $250 Required for all residential freight deliveries

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Description

Technical Data

Electric Motors

Frame 284T
Output 25 HP (18.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 59.0/29.5 A
L. R. Amperes 372/186 A
LRC 6.3x(Code G)
No load current 20.8/10.4 A
Rated torque 74.2 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 3.71 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Starting Method Direct On Line
Duty Cycle Cont.(S1)
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 – ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 346 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0 93.6 93.6

Power factor

50% 75% 100%
0.69 0.80 0.84



Additional information

Electric Motor Voltage

,

Horse Power Electric Motor

Material Electric motor

Phase

Brands

RPM

1750
Frame Size

284
Motor Standard

NEMA
