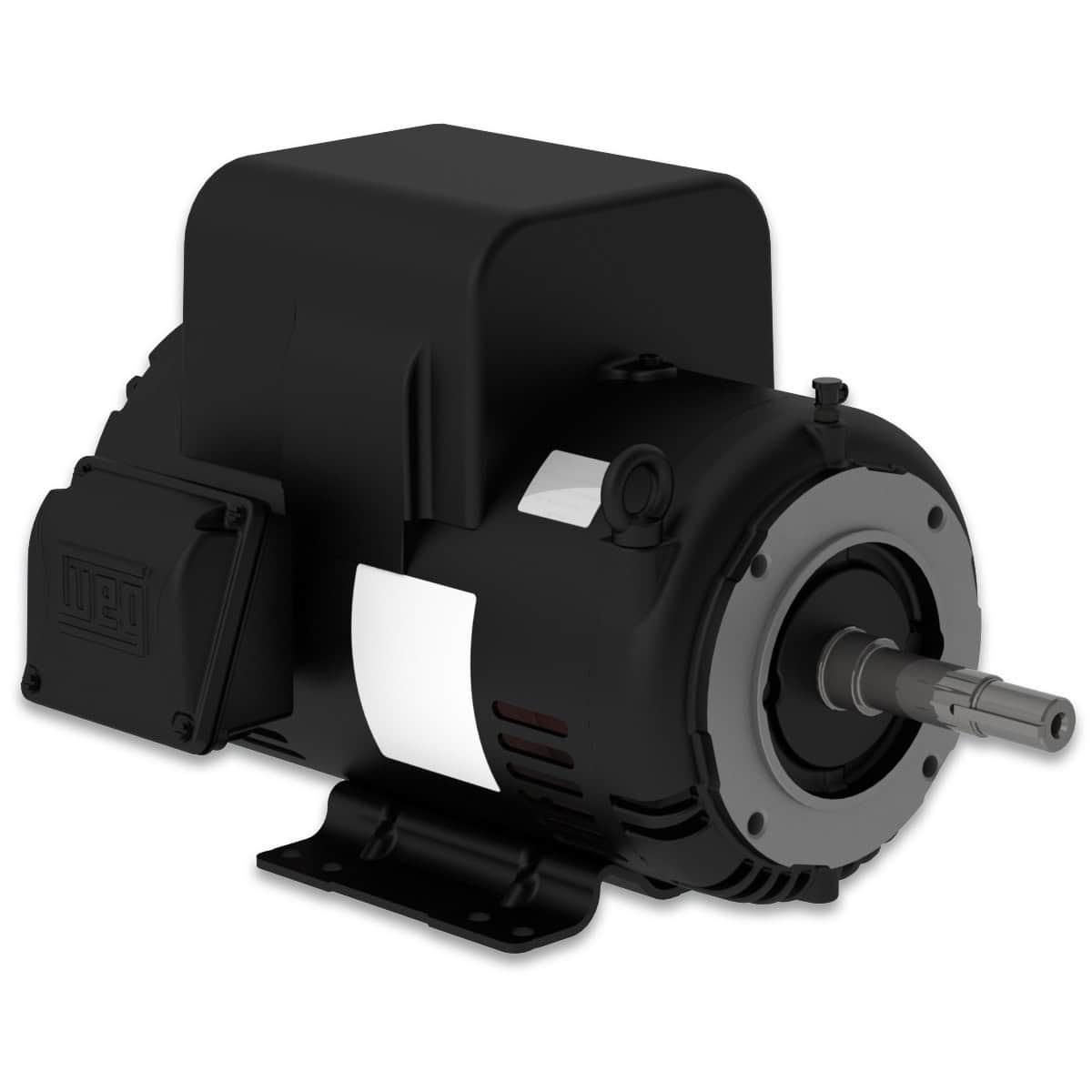

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115/208-230 |
| Number of poles | 2 |
| Synchronous speed | 3600 rpm |
| Output rating | 5 HP |
| Flange | C |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC01 – ODP |
Unit Price Only
$1,059.49
Note: This item is heavy and delivery requires a forklift or loading dock for unloading only at commercial locations.
If the delivery address is residential and a forklift/dock is not available, please add the Liftgate + Non-Commercial Delivery Service from here:
Free Shipping , Get it in 2 – 5 Business Days
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
Technical Data| Brand | WEG |
|---|---|
| Frame | 182/4JM |
| Output | 5 HP |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated Speed | 3500 rpm |
| Slip (%) | 2.78 |
| Rated Voltage (V) | 115/208-230 |
| Rated Current (A) | 39.5/22.0-19.7 |
| L. R. Amperes (A) | 265/147-132 |
| LRC | 6.7x (Code G) |
| No load Current (A) | 10.4/3.0-5.2 |
| Rated Torque (ft.lb) | 7.50 |
| Locked Rotor Torque (%) | 175 |
| Breakdown Torque (%) | 250 |
| Locked Rotor Time | 16s (cold) 9s (hot) |
| Moment of Inertia (J) | 0.1566 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Approx. Weight (lb) | 81.6 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.0 | 77.2 | 81.8 | 84.0 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.0 | 0.92 | 0.96 | 0.97 |
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1″ |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 – Matte 207N (ISO 12944 – C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan |
| Tropicalized Painting | Without |
| Bearing cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
