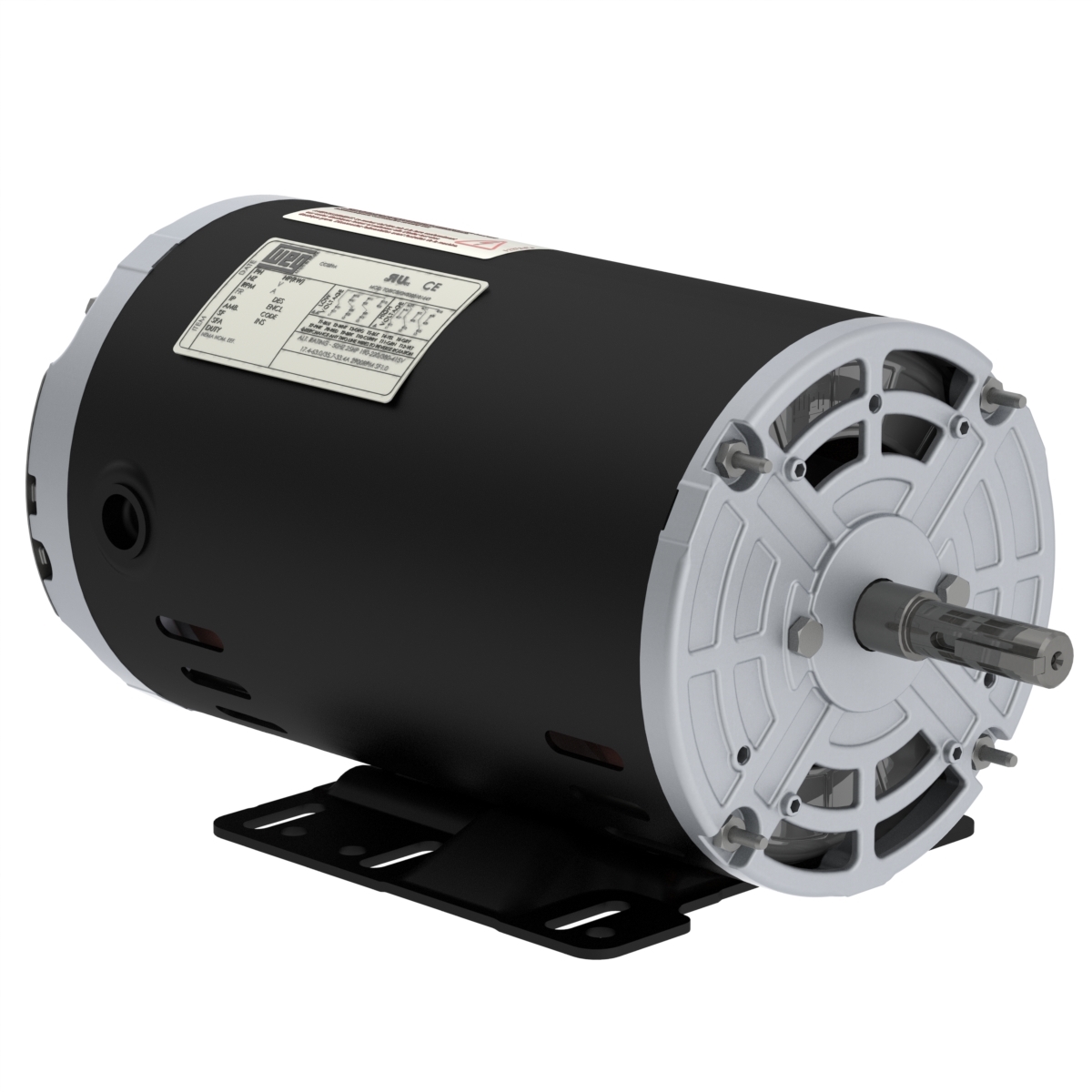

WEG Rolled Steel Motor – 2HP, 230/460V – 3Ph, 60 Hz, 1740RPM, ODP, Foot-mounted, Model 00218OT3E56-S

WEG Rolled Steel Motor - 2HP, 230/460V - 3Ph, 60 Hz, 1740RPM, ODP, Foot-mounted, Model 00218OT3E56-S
SKU: 5160710 Categories: , , , , , Tags: , ,

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 5160710 Categories: , , , , , Tags: , ,

WEG Rolled Steel Motor – 2HP, 230/460V – 3Ph, 60 Hz, 1740RPM, ODP, Foot-mounted, Model 00218OT3E56-S

Print Product Page

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings..

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460
Number of poles 4
Synchronous speed 1800 rpm
Output rating 2 HP
Flange Without
Mounting F-1
Terminal box Without
Enclosure IC01 – ODP

SKU 5160710 Categories , , , , , Tags , ,

UNIT PRICE

$284.22

Motor Selection Tool
Not sure this is the correct motor?
Use our Electric Motor Filter to compare HP, voltage, phase, RPM, frame size, enclosure, and mounting options.
Find the Right Motor
In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Technical Data

Technical Data

Brand WEG
Frame 56H
Output 2 HP
Number of Poles 4
Frequency 60 Hz
Rated Speed 1740 rpm
Slip (%) 3.33
Rated Voltage (V) 230/460
Rated Current (A) 5.38/2.69
L. R. Amperes (A) 41.4/20.7
LRC 7.7x (Code K)
No load Current (A) 2.75/1.38
Rated Torque (ft.lb) 6.04
Locked Rotor Torque (%) 260
Breakdown Torque (%) 320
Locked Rotor Time 30s (cold) 17s (hot)
Moment of Inertia (J) 0.1168 sq.ft.lb
Insulation Class F
Service Factor 1.15
Temperature Rise 80 K
Duty Cycle Cont. (S1)
Starting Method Direct On Line
Ambient Temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 – ODP
Mounting F-1
Rotation Both (CW and CCW)
Noise Level 52.0 dB(A)
Approx. Weight (lb) 37.7

Efficiency

25% 50% 75% 100%
85.2 85.5 86.5 86.5

Power Factor

25% 50% 75% 100%
0.36 0.61 0.74 0.81

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main Terminal Box Hole NPT 1/2″
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover Material Without
Tropicalized Painting Without
Bearing Cap No
Drip Cover Without
Overload Protector (phenolic) Without
