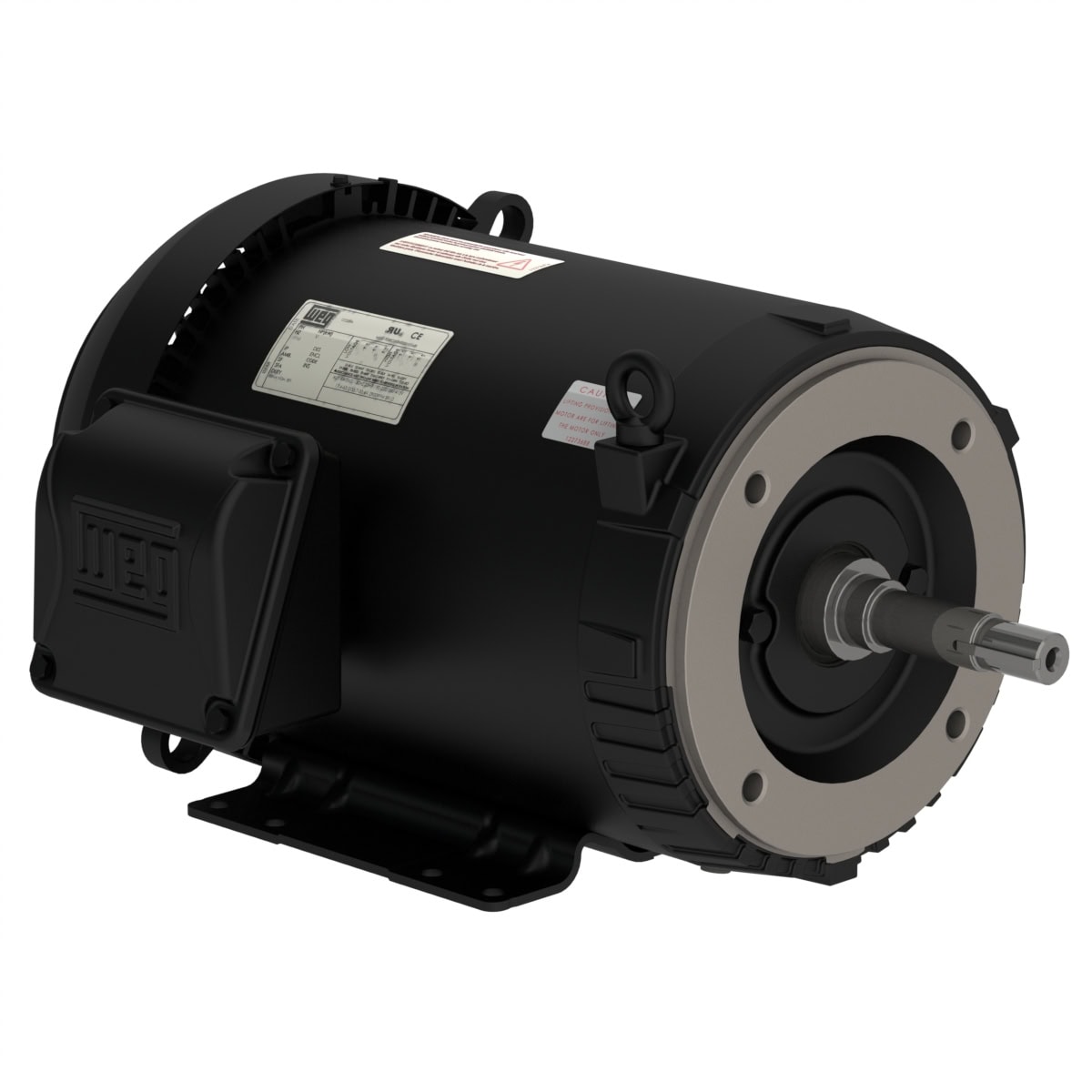

WEG Rolled Steel Motor – 15HP, 230/460V – 3Ph, 60 Hz, 3535RPM, TEFC, Foot-mounted, Model 01536ET3E215JM-S

5/5
SKU: 5160413 Categories: , , , , , Tags: , ,
SKU: 5160413 Categories: , , , , , Tags: , ,

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


WEG Rolled Steel Motor – 15HP, 230/460V – 3Ph, 60 Hz, 3535RPM, TEFC, Foot-mounted, Model 01536ET3E215JM-S

5/5

 Unit Price Only

$1,564.99

5 - 7 Business days - Free Shipping

Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Cart

Advertisement

Product Data >>>

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 15 HP
Flange C
Mounting F-1
Terminal box Left position
Enclosure IC411 – TEFC

Description

Technical Data

Technical Data

Brand WEG
Frame 213/5JM
Output 15 HP
Number of Poles 2
Frequency 60 Hz
Rated Speed 3535 rpm
Slip (%) 1.81
Rated Voltage (V) 230/460
Rated Current (A) 34.0/17.0
L. R. Amperes (A) 279/139
LRC 8.2x (Code J)
No load Current (A) 12.4/6.20
Rated Torque (ft.lb) 22.3
Locked Rotor Torque (%) 280
Breakdown Torque (%) 330
Locked Rotor Time 12s (cold) 7s (hot)
Moment of Inertia (J) 0.6341 sq.ft.lb
Insulation Class F
Service Factor 1.15
Temperature Rise 80 K
Duty Cycle Cont. (S1)
Starting Method Direct On Line
Ambient Temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 – TEFC
Mounting F-1
Rotation Both (CW and CCW)
Noise Level 70.0 dB(A)
Approx. Weight (lb) 171

Efficiency

25% 50% 75% 100%
90.0 90.2 91.0 91.0

Power Factor

25% 50% 75% 100%
0.49 0.76 0.85 0.89

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.377″
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 – Matte 207N (ISO 12944 – C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Bearing cap Yes
Drip Cover Without
Overload Protector (phenolic) Without
Screw Cap Carbon Steel SAE 1010/20
Fan material Plastic

Dimensions

Additional information

Brands

Electric Motor Voltage

,

Phase

Horse Power Electric Motor

Material Electric motor

RPM

3600
