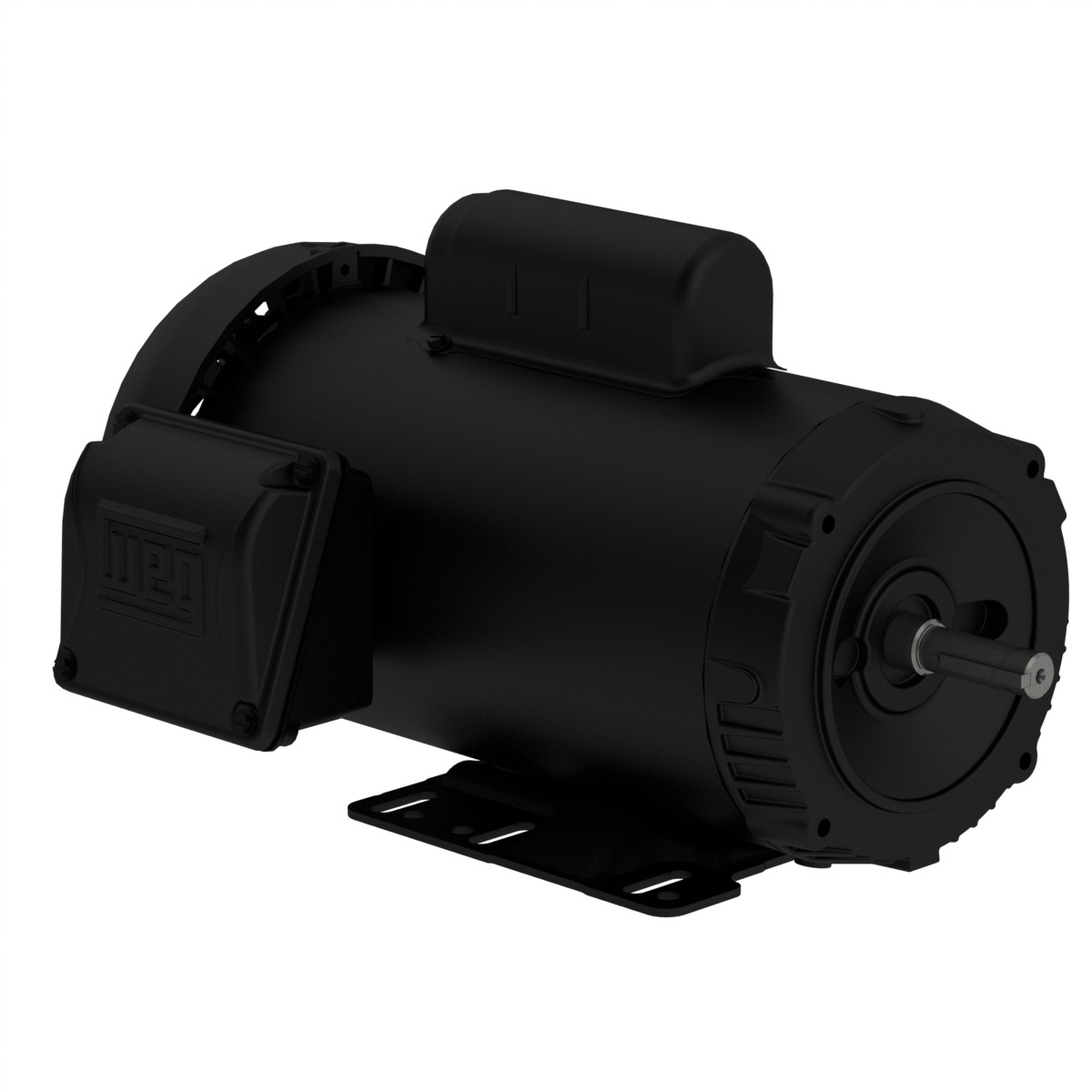

WEG Rolled Steel Motor – 0.5HP, 115/230V – 1Ph, 60 Hz, 1730RPM, TEFC, Foot-mounted, Model .5018ES1BW56C-S

WEG Rolled Steel Motor - 0.5HP, 115/230V - 1Ph, 60 Hz, 1730RPM, TEFC, Foot-mounted, Model .5018ES1BW56C-S
SKU: 5160713 Categories: , , , , , Tags: , ,

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 5160713 Categories: , , , , , Tags: , ,

WEG Rolled Steel Motor – 0.5HP, 115/230V – 1Ph, 60 Hz, 1730RPM, TEFC, Foot-mounted, Model .5018ES1BW56C-S

Print Product Page

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings..

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230
Number of poles 4
Synchronous speed 1800 rpm
Output rating 0.5 HP
Flange C
Mounting F-1
Terminal box Left position
Enclosure IC411 – TEFC

SKU 5160713 Categories , , , , , Tags , ,

UNIT PRICE

$296.37

Motor Selection Tool
Not sure this is the correct motor?
Use our Electric Motor Filter to compare HP, voltage, phase, RPM, frame size, enclosure, and mounting options.
Find the Right Motor
In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Technical Data

Technical Data

Brand WEG
Frame W56C
Output 0.5 HP
Number of Poles 4
Frequency 60 Hz
Rated Speed 1730 rpm
Slip (%) 3.89
Rated Voltage (V) 115/208-230
Rated Current (A) 8.0/4.42-4.0
L. R. Amperes (A) 45.6/25.2-22.8
LRC 5.7x (Code M)
No load Current (A) 6.6/2.85-3.3
Rated Torque (ft.lb) 1.52
Locked Rotor Torque (%) 320
Breakdown Torque (%) 270
Locked Rotor Time 18s (cold) 10s (hot)
Moment of Inertia (J) 0.0479 sq.ft.lb
Insulation Class F
Service Factor 1.15
Temperature Rise 80 K
Duty Cycle Cont. (S1)
Starting Method Direct On Line
Ambient Temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC411 – TEFC
Mounting F-1
Rotation Both (CW and CCW)
Noise Level 52.0 dB(A)
Approx. Weight (lb) 21.5

Efficiency

25% 50% 75% 100%
48.5 52.0 59.0 64.0

Power Factor

25% 50% 75% 100%
0.25 0.44 0.54 0.63

Features



Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main Terminal Box Hole 1.881″
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 – Matte 207N (ISO 12944 – C2)
Grounding Lugs Single
Fan Cover Material Industrial Polymer
Tropicalized Painting Without
Bearing Cap Yes
Drip Cover Without
Overload Protector (phenolic) Without
Fan Material Plastic
