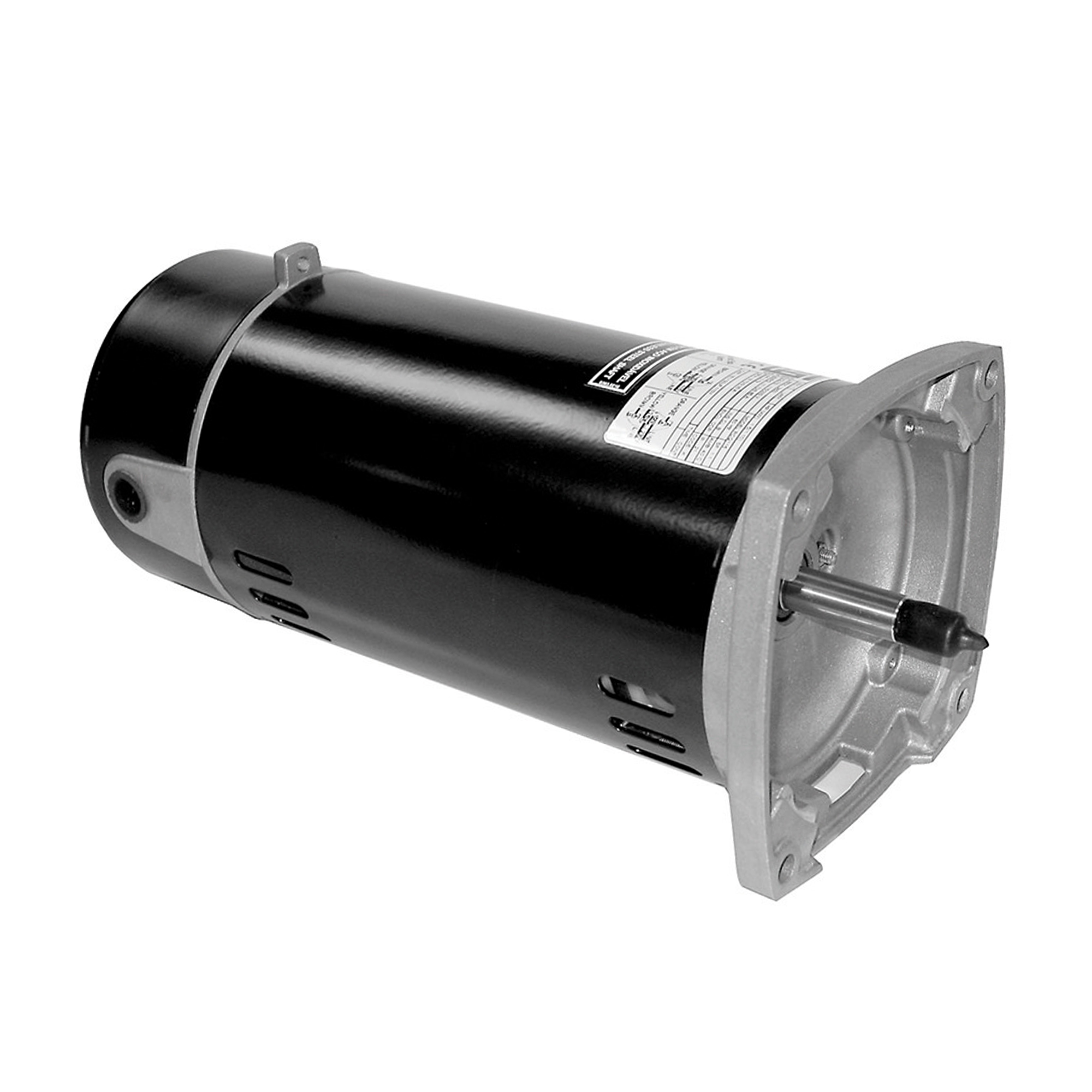

Download Data Sheet PDF 1 Download Data Sheet PDF 2ODP motor manufactured with steel plate especially developed for applications on swimming pool, Japanese bathtub and whirlpool bathtub pumps.
$210.67
Download Data Sheet PDF 1 Download Data Sheet PDF 2| Frame | K48Y |
|---|---|
| Output | 1 HP (0.75 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3470 rpm |
| Slip | 3.61 % |
| Rated voltage | 115/230 V |
| Rated current | 12.5/6.25 A |
| L. R. Amperes | 71.2/35.6 A |
| LRC | 5.7x(Code K) |
| No load current | 8.30/4.15 A |
| Rated torque | 1.51 ft.lb |
| Locked rotor torque | 140 % |
| Breakdown torque | 250 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 0.0297 sq.ft.lb |
|---|---|
| Insulation Class | B |
| Service factor | 1.25 |
| Temperature rise | 70 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +50°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP21 |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation¹ | CCW |
| Noise level² | 58.0 dB(A) |
| Approx. weight³ | 25.2 lb |
| 50% | 75% | 100% |
|---|---|---|
| 61.0 | 67.0 | 70.1 |
| 50% | 75% | 100% |
|---|---|---|
| 0.56 | 0.67 | 0.74 |
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | AISI 316 Stainless Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Tropicalized Painting | Without |
| Fan material | Nylon |
| Bearing cap | Yes- Bearing Cap |
| Drip Cover | Without |
| Shaft End | threaded |
| Resilient Base | Without |
| Overload protector (phenolic) | Automatic |
| Brands | |
|---|---|
| Electric Motor Voltage | |
| Phase | |
| Horse Power Electric Motor | |
| Material Electric motor | |
| RPM | 3600 |
| Frame Size | 48 |
| Motor Standard | NEMA |
