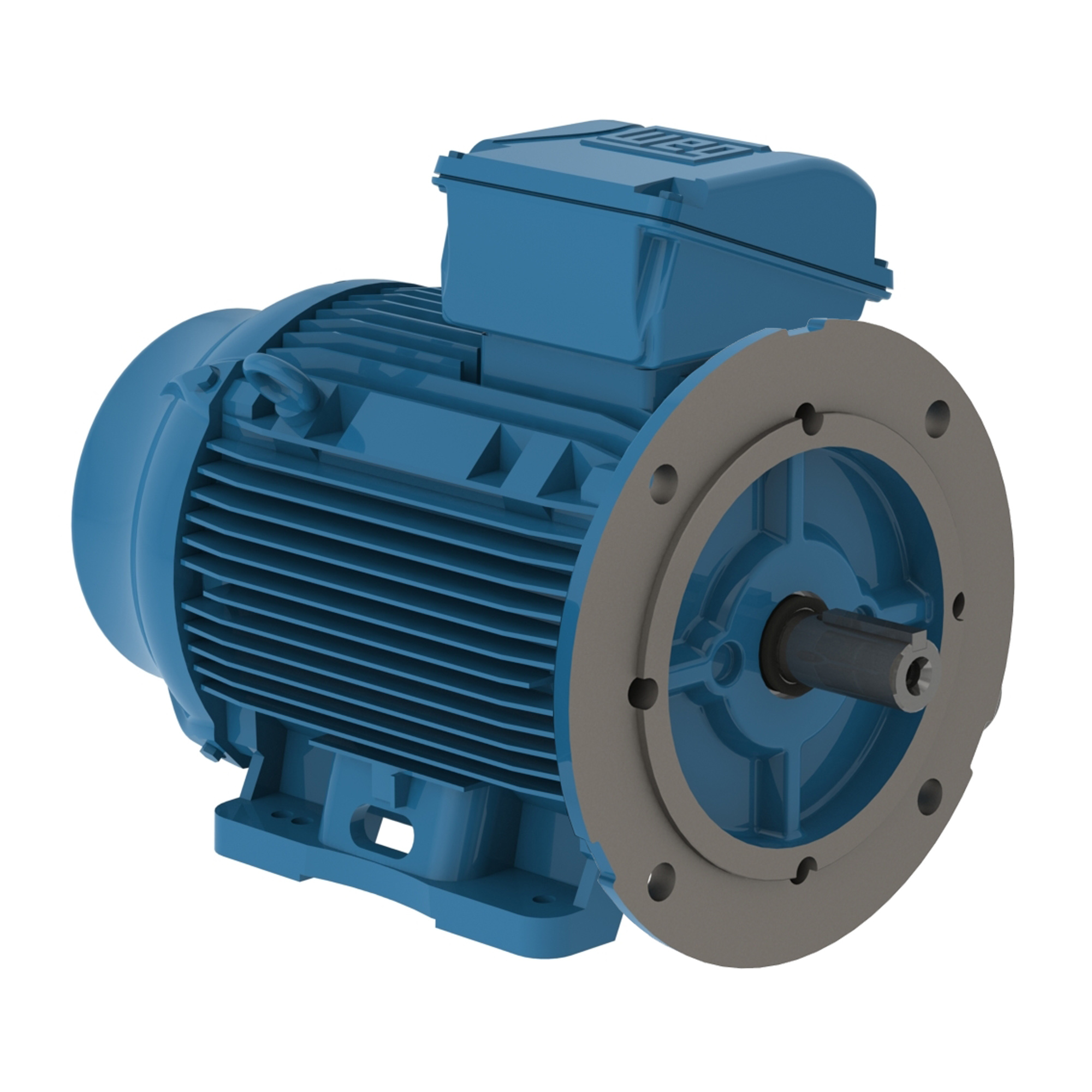

Description
Technical Data
Technical Data
| Brand | WEG |
|---|---|
| Frame | 90 S/L |
| Output | 2 HP |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1755 rpm |
| Slip (%) | 2.50 |
| Rated Voltage (V) | 230/460 |
| Rated Current (A) | 5.66/2.83 |
| L. R. Amperes (A) | 47.0/23.5 |
| LRC (A) | 8.3 Code L |
| No load Current (A) | 3.10/1.55 |
| Rated Torque (ft.lb) | 8.11 Nm |
| Locked Rotor Torque (%) | 300 |
| Breakdown Torque (%) | 350 |
| Locked Rotor Time | 25s (cold) 14s (hot) |
| Moment of Inertia (J) | 0.1566 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service Factor | 1.25 |
| Temperature Rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 3280 ft |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | B35T |
| Rotation | Both (CW and CCW) |
| Noise Level | 49.0 dB(A) |
| Approx. Weight (lb) | 43 |
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 82.5 | 85.5 | 86.5 |
Power Factor
| 50% | 75% | 100% |
|---|---|---|
| 0.55 | 0.68 | 0.77 |
Features
| Frame Material | Aluminum |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 2xM25x1,5 |
| Terminal Block | BMC – 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207N (ISO 12944 – C2) |
| Grounding Lugs | Single |
| Fan Cover Material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | No |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Connection Cables Quantity | 9 |
| Fan Material | Plastic |
